M-F3A PRO MAX
M-F3A PRO MAX is the evolved sibling of the acclaimed M-F3A PRO, created for larger, more demanding applications that call for greater output, extended throw, and refined control. Maintaining the compact, hornless philosophy of the M‑Line, it delivers natural mids, studio‑grade highs, and consistent coverage in a lightweight, installer‑ and touring‑friendly format. Seamless integration with B‑Line subwoofers and M‑Line accessories makes it a versatile building block for flown arrays and ground stacks alike.
- Natural SE signature sound with greater output and throw for larger applications
- Hornless acoustic design for precise, balanced reproduction without coloration
- Active platform with factory voicings for quick, repeatable setup and tuning
- Lightweight cabinet with discreet, safety‑centred rigging for flown and stacked arrays
- Seamless integration with B‑Line subwoofers and M‑Line accessories for scalable full‑range systems

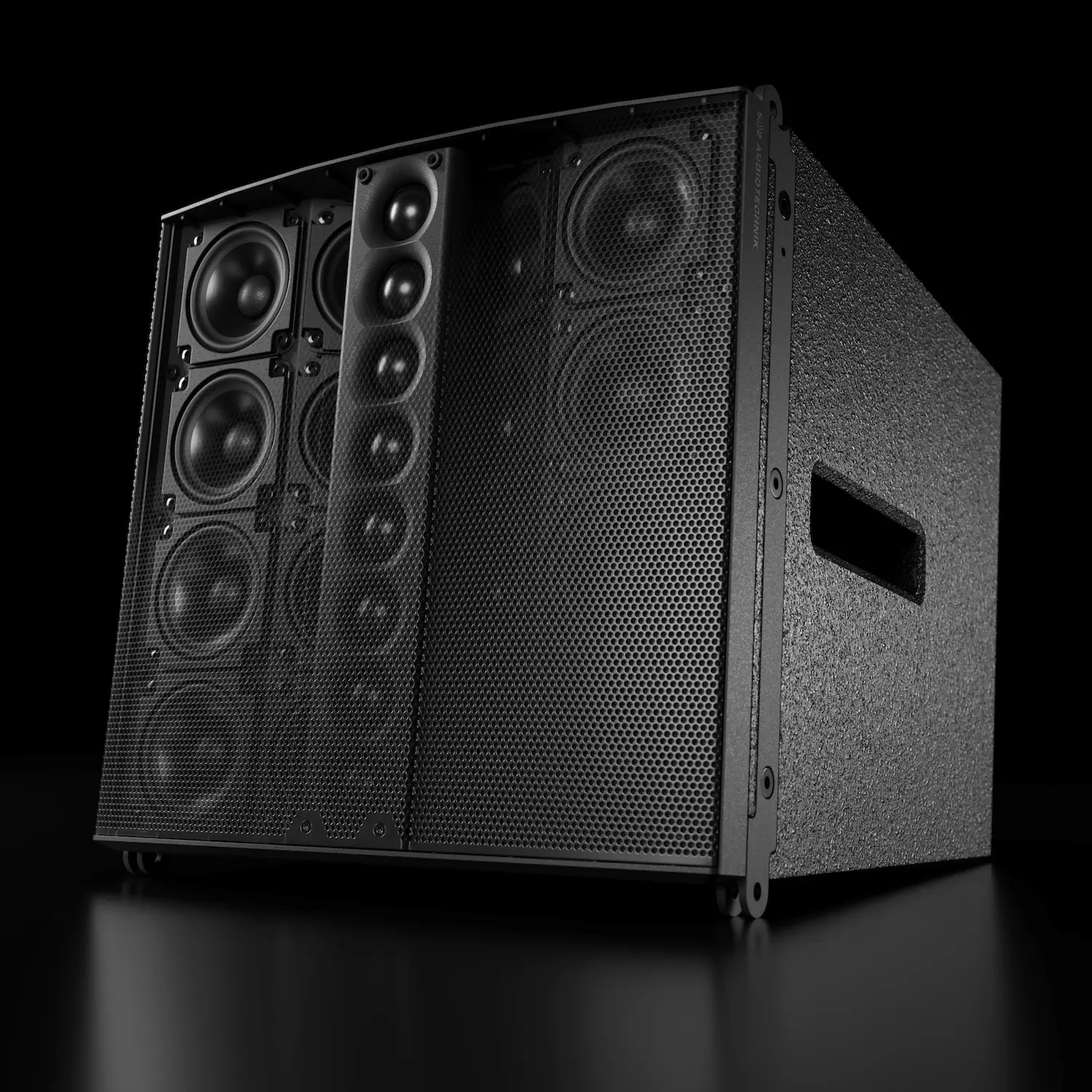

Developed from real‑world feedback, M-F3A PRO MAX advances the compact line‑array concept with extended midrange authority and optimised high‑frequency detail—preserving the SE signature of natural, articulate sound at scale. An array of high‑efficiency mid drivers reproduces the critical vocal band with clarity and impact, while an innovative high‑frequency section—featuring thermally optimised components and increased driver density—adds air and precision without harshness. The hornless acoustic design keeps timbre honest and balanced, even at elevated levels and over longer distances. Power and control are built in. High‑efficiency Class‑D amplification works hand in hand with precision DSP, so dynamics stay intact from subtle speech to energetic music. Intuitive onboard controls support quick, repeatable voicing for different array sizes and venues, and comprehensive protection ensures dependable performance day after day.

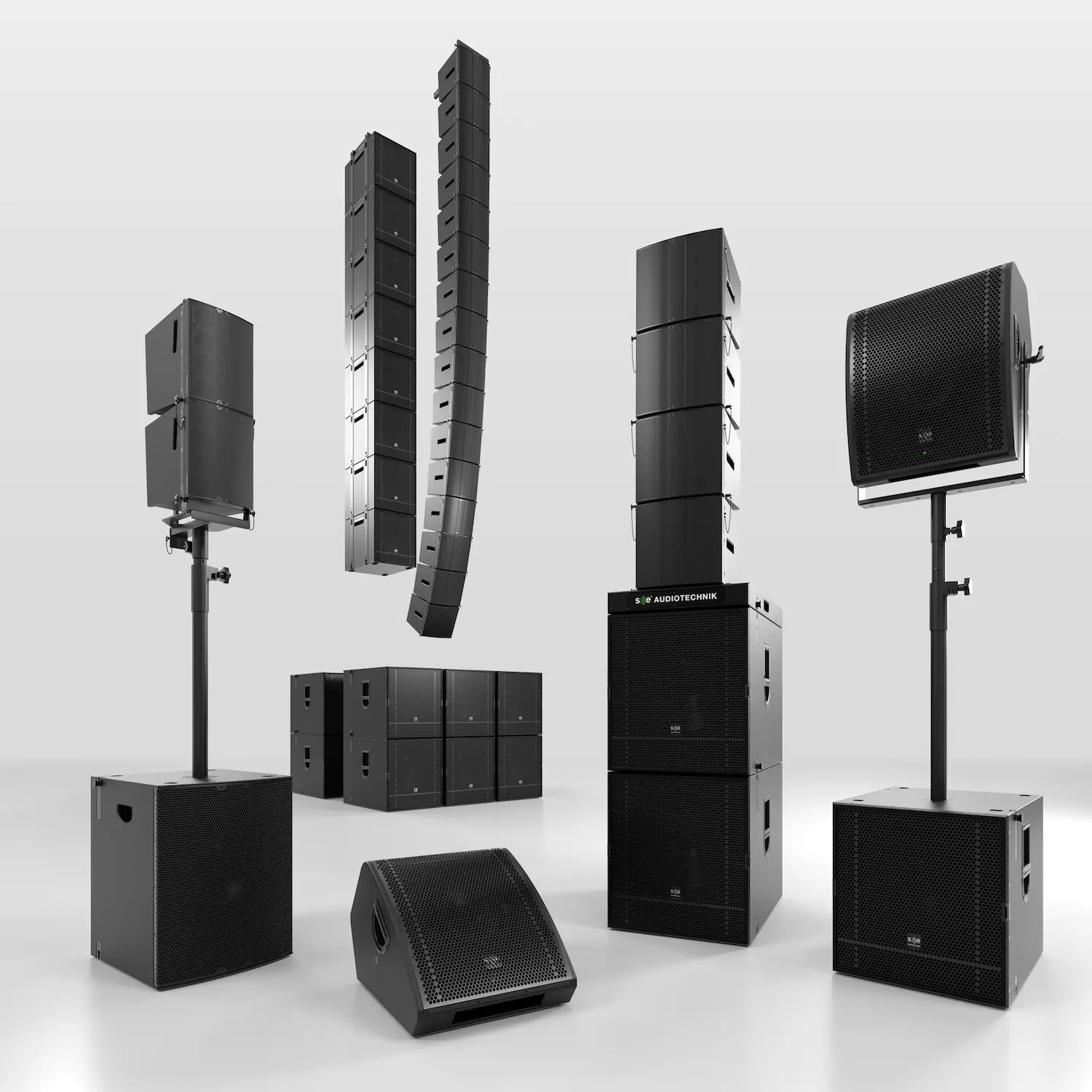

Despite its expanded capability, M-F3A PRO MAX remains compact and easy to handle. The lightweight enclosure, robust finish, and user‑centred rigging allow fast, safe arraying with precise splay control, while discreet aesthetics keep attention on the stage. A full ecosystem of accessories—bumpers, U‑brackets, carts, flight cases, rain covers, and stacking frames—streamlines logistics and unlocks versatile configurations. Combined with B‑Line subwoofers, M‑F3A PRO MAX forms scalable full‑range systems that serve everything from refined corporate productions to impactful live events—without overwhelming the space visually.
Technical details
| ACOUSTICAL DATA | |
|---|---|
| Frequency range (-3 dB)* | 135 Hz - 19 kHz |
| Frequency range (-6 dB)* | 108 Hz - 20 kHz |
| Frequency range (-10 dB)* | 95 Hz - 20 kHz |
| Coverage [H x V]** | 120° x 16° |
| Maximum Peak SPL*** | 133 dB |
| Maximum Continuous SPL*** | 121 dB |
| System type | 2-way self-powered |
| Crossover frequency | 1.9 kHz |

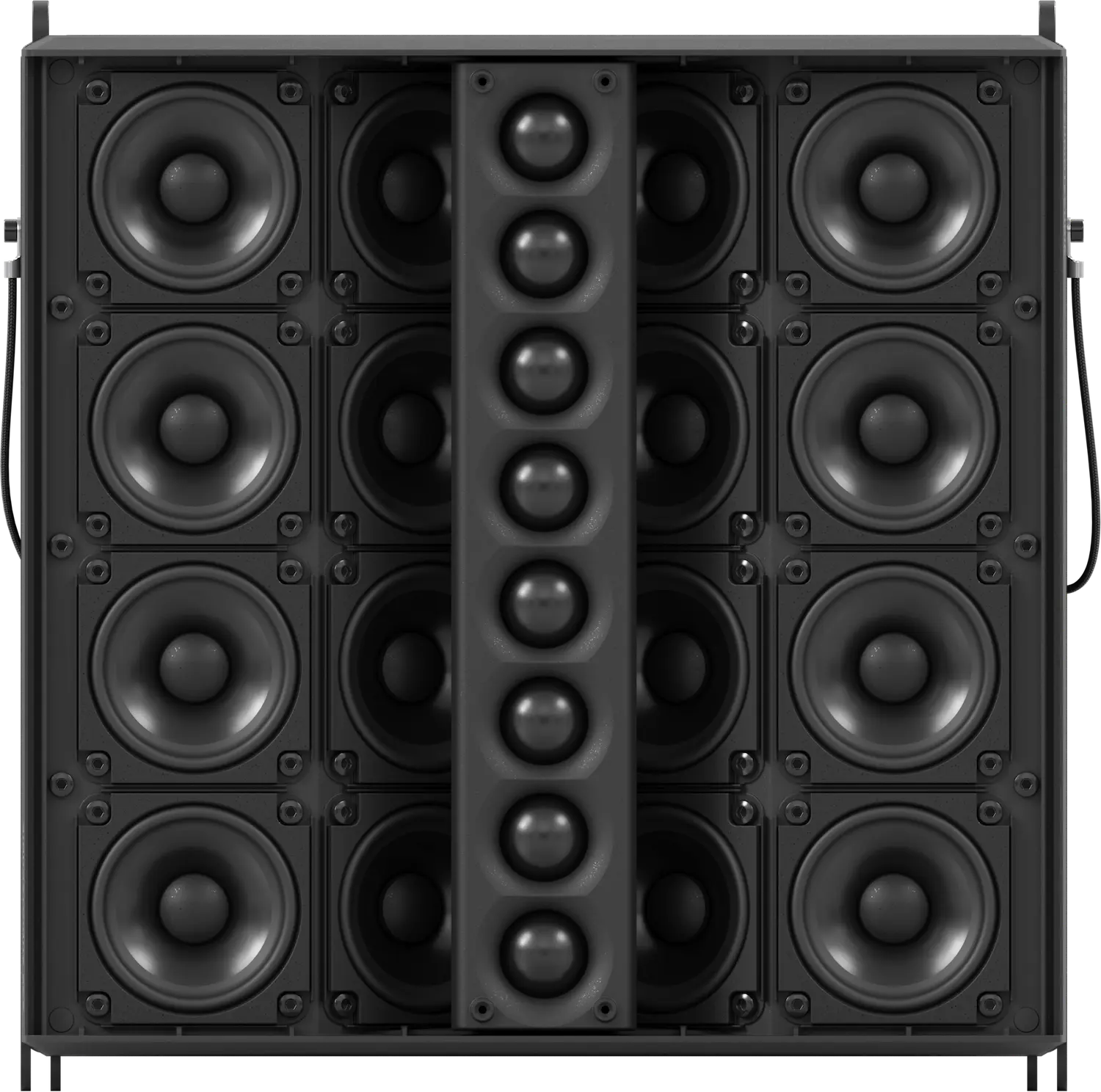

| Transducers | MF: 16x 2.8" drivers (0.8" voice coil) HF: 8 x 1" dome tweeters (1" voice coil) |
| Enclosure type | Vented box |
| ELECTROTECHNICAL DATA | |
| Type | Amp: Class-D Power supply: SMPS |
| Total power**** | 1000 W |
| Output power per channel***** | MF: 500 W HF:500 W |
| Protection | Short circuit | temperature |

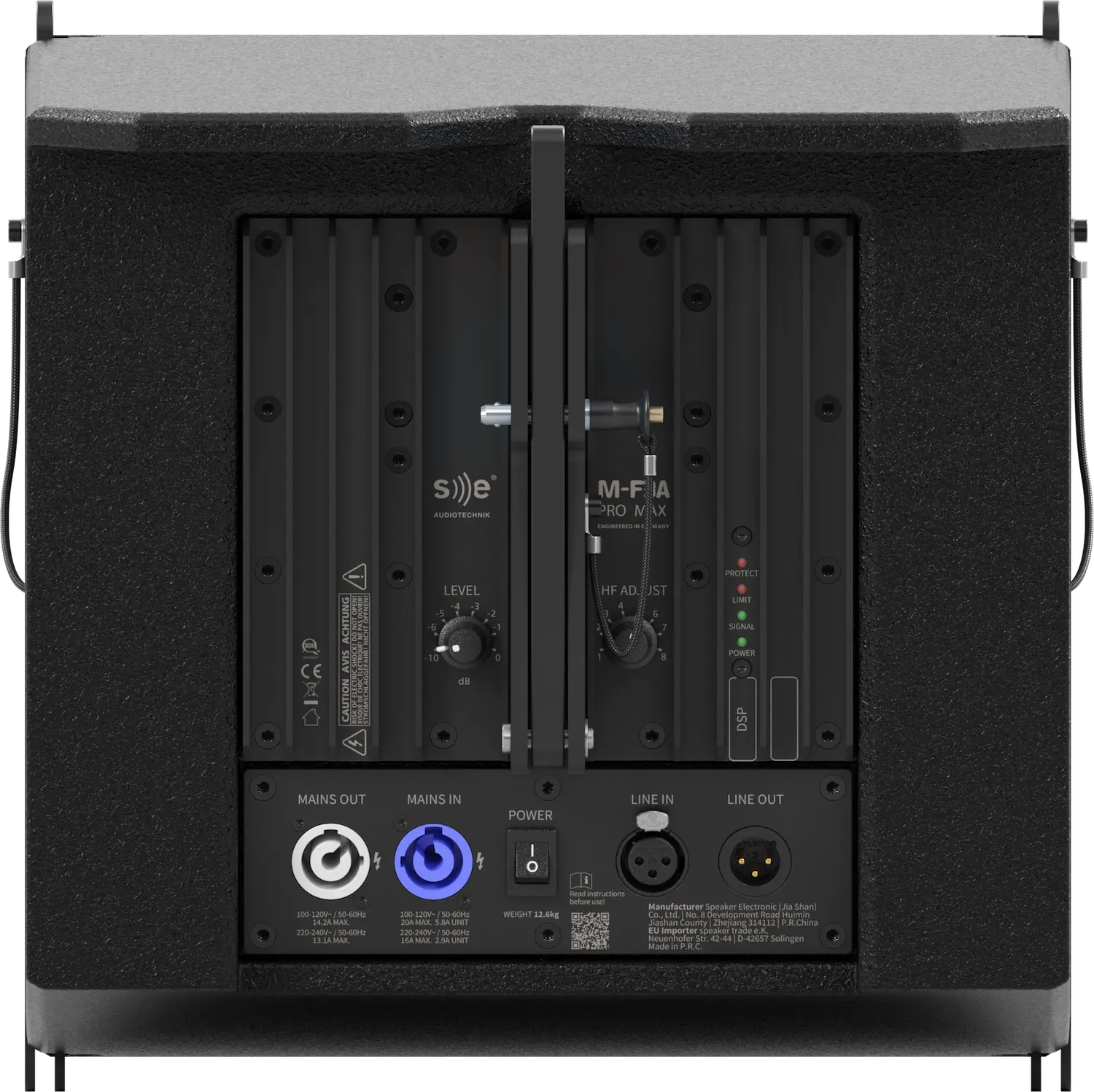

| Indicators | LEDs | ON (green) | SIGNAL (green) | LIMIT (red) | PROTECT (red) |

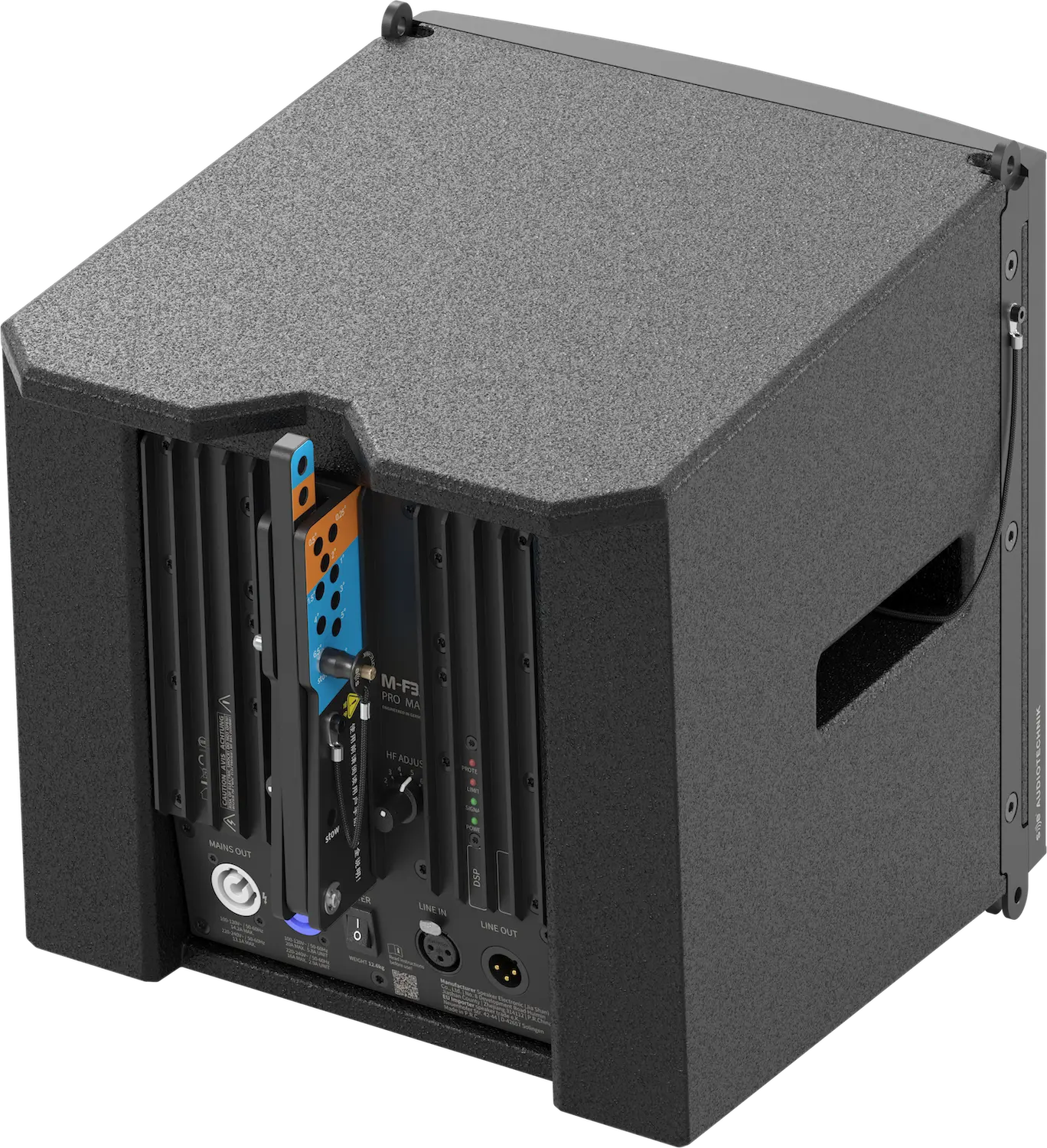

| Connectors | 1x XLR Line input (balanced) 1x XLR Line output (balanced) 1x Powercon, AC input, 20A 1x Powercon, AC output, 20A |
| Wiring | Pin layout XLR: Pin 2: Signal+ | Pin 3: Signal | Pin 1: Shield Pin layout powerCON® : Pin N: Neutral | Pin L: Conductor | Pin E: Earth, Ground |
| Operating voltage range | MAINS IN: 100 - 120 V~ / 50 - 60 Hz | 20A MAX./ 5.8A UNIT 220 - 240 V~ / 50 - 60 Hz | 16A MAX./ 2.9A UNIT MAINS OUT: 100 - 120 V~ / 50 - 60 Hz | 14.2A MAX 220 - 240 V~ / 50 - 60 Hz | 13.1A MAX |
| Input sensitivity | 0 dBu |
| DSP | 48 kHz/24 Bit with extended dynamics |
| Processing | Crossover | Limiter | EQ | Level | low noise AD-DA |
| User controls | LEVEL: 8 position rotational switch (-10 | -6 | -5 | -4 | -3 | -2 | -1 | 0) HF LEVEL: 8 position rotational switch (1~8) |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] | 329 x 328 x 384 mm |
| Net weight | 12.6 kg |
| Packaging dimensions | 485 x 415 x 452 mm |
| Total weight | 14 kg |
| Cabinet | 12 mm plywood |
| Cabinet finishing | Black polyurea coating |

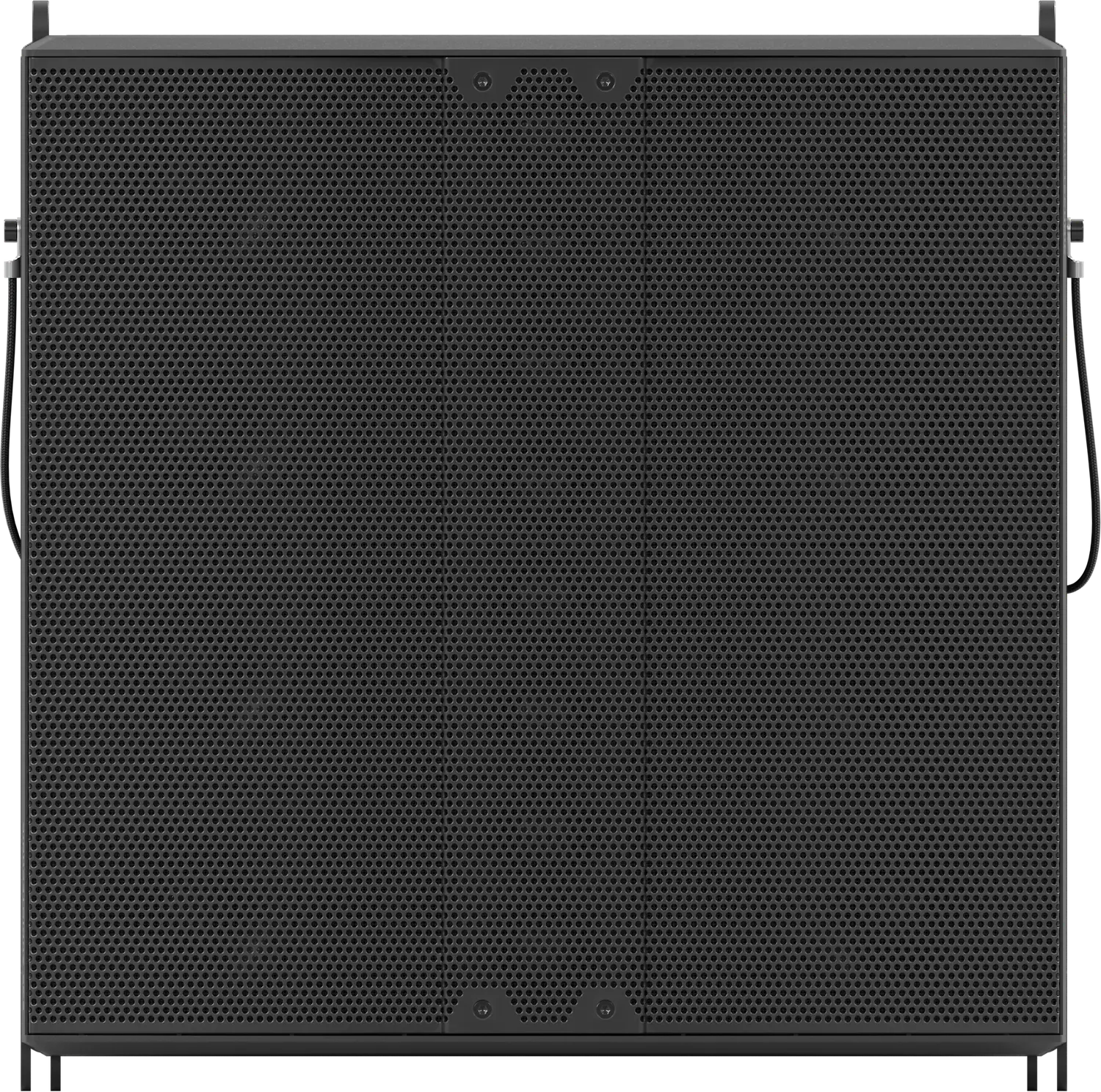

| Grille | Powder-coated perforated steel |
| Rigging | Three-point rigging system 3 x SE AUDIOTECHNIK 6 mm locking pins |
| Splay angles | 0.25º| 0.5º| 1º| 1.5º| 2º| 3º| 4º| 5°| 6.5º| 8º |
| ACCESSORIES | |
| Bumper frame | M-F3A PRO MAX BF |
| Stacking Frame | B 18 SFi MAX |
| U-bracket | M-F3A PRO MAX UB |
| Transport kart | M-F3A PRO MAX TK 43 |
| Flight case | M-F3A PRO MAX FC |
| Line rain cover | M-F3A PRO MAX FRC 8/12/16 |
| ANNOTATION | |
| * | Whole space | -10dBu/ 1m |
| ** | (-6 dB | 500 Hz - 6000 Hz) |
| *** | SPL / 1m | whole space | pink noise | 12dB crest factor | +10dBu input level |
| **** | Total power value is the sum of all individual channel output power |
| ***** | According to EIA-426B Standard |
