L-Line

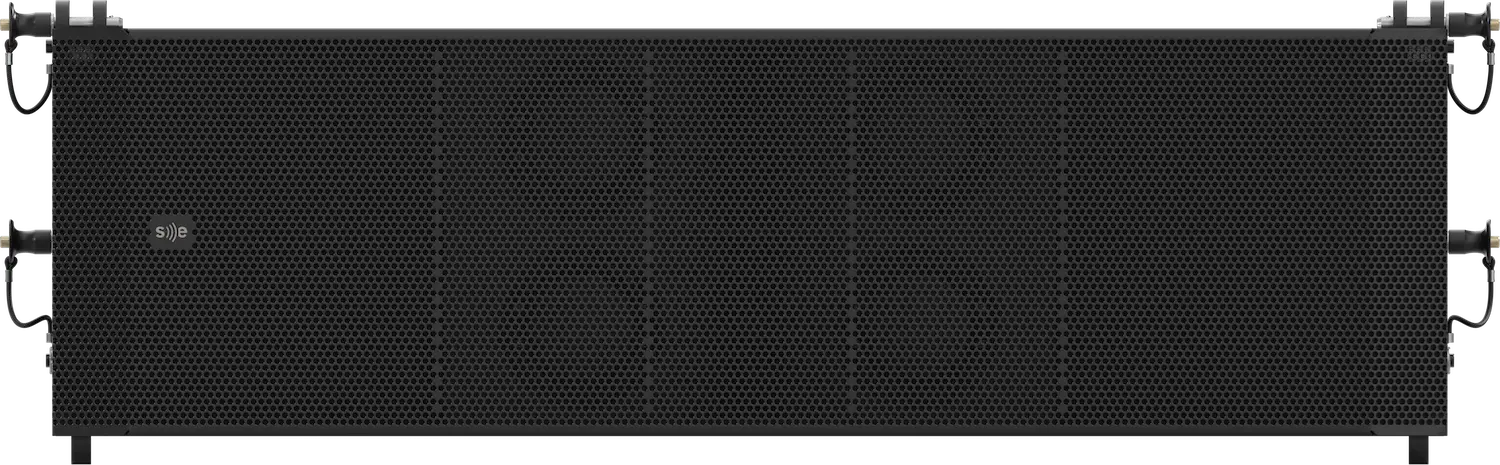

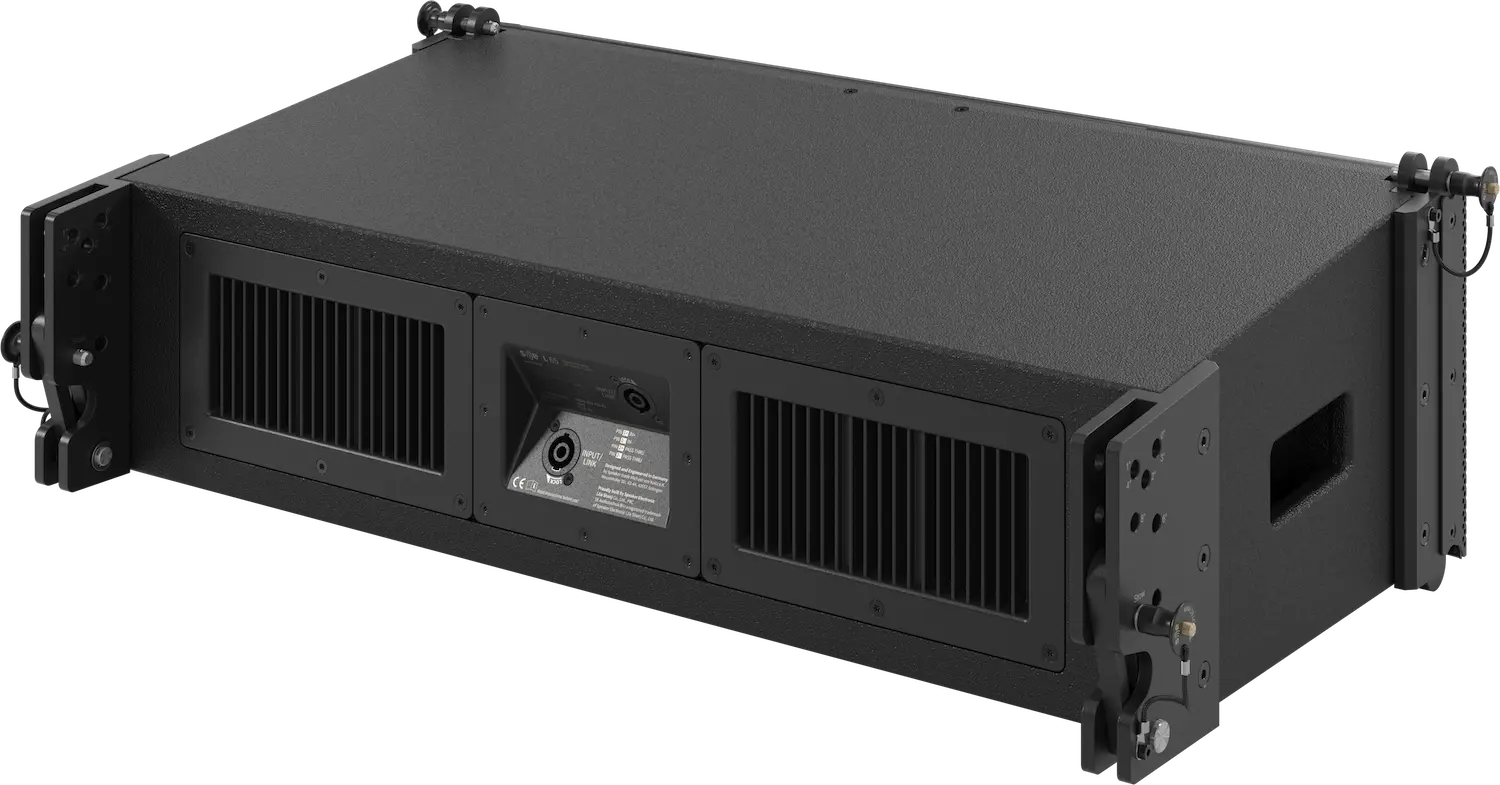

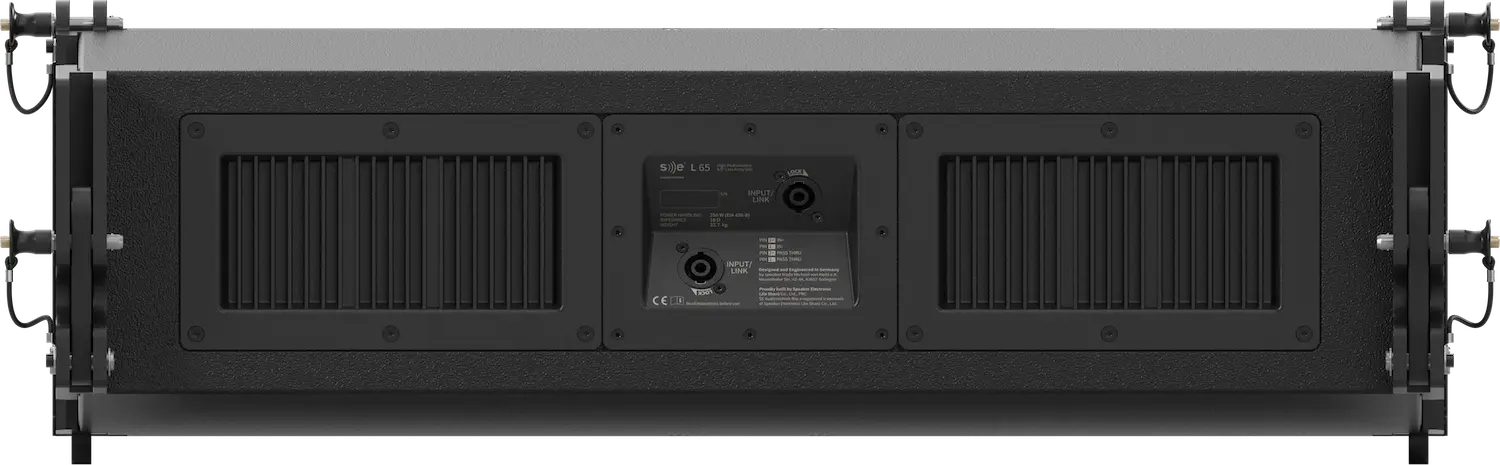

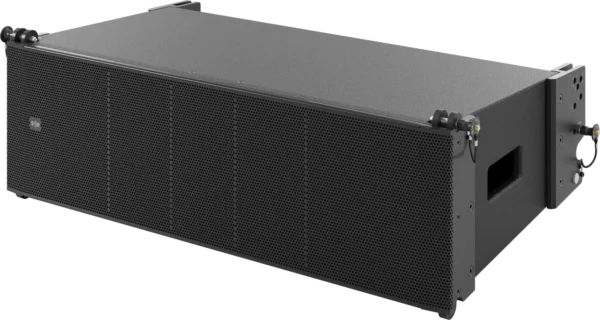

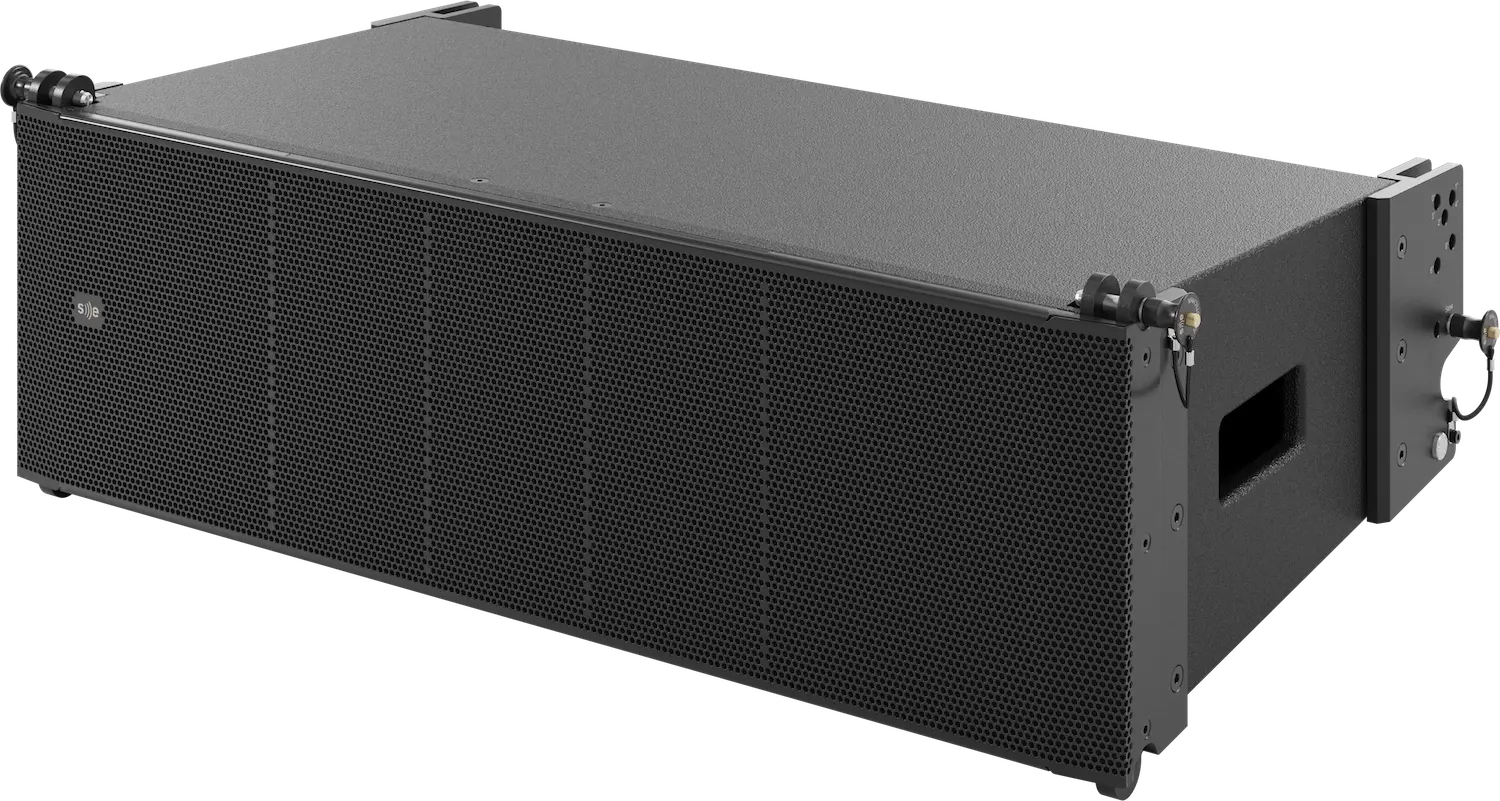

L 65 R
Technical details
| Model Name | L 65 R |
|---|---|
| Type | 3-way passive line array loudspeaker, weatherproof connectors |
| TECHNICAL INFORMATION | |
| ACOUSTICAL DATA | |
| Frequency range (-3 dB)* | 95 Hz – 17.5 kHz |
| Frequency range (-6 dB)* | |
| Frequency range (-10 dB)* | 60 Hz – 18 kHz |
| Coverage angles (-6 dB) [H x V] | 100° × 20° |
| Nominal impedance | 12 Ω |
| Sensitivity* | 103 dB |
| Peak power | 1000 W |
| Continuous power** | 250 W |
| Maximum Peak SPL*** | 137 dB |
| System type | 3-way passive system |
| Crossover frequency | MF: 400 Hz HF: 1.8 kHz |
| Transducers | LF: 2 × 6.5" woofers (2" voice coil) MF: 4 × 3.5" drivers (1" voice coil) HF: 2 × 1" compression drivers (1.4" voice coil) |
| Enclosure type | Vented box |
| Connectors | Input / Link signal: two weatherproof Neutrik speakON® NLT4MP |
| Wiring | Pins 1+/1- (both NLT4MP): drivers Pins 2+/2- (both NLT4MP): link signal |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] (incl. rigging) | 237 × 766 × 383 mm |
| Weight | 22.7 kg |
| Packaging dimensions [H x W x D] | 363 × 810 × 480 mm |
| Total weight | 25 kg |
| Cabinet | 12 mm plywood |
| Cabinet finishing | Black polyurea coating |
| Grille | Powder coated perforated steel |
| Hardware | Two side handles in plywood embedded in cabinet Two rear heatsink panels Outdoor front steel grille |
| Rigging | Four-point rigging system: two front and two rear 8 mm SE Audiotechnik® locking pins. |
| Splay angles | 0º, 1º, 2º, 3º, 4º, 6º, 8º |
| ACCESSORIES | |
| L 65 BF | Bumper frame |
| L 65 UFB | L35 Under frame adapter |
| ANNOTATION | |
| * | Whole space, 1W / 1m, on axis |
| ** | According to EIA-426B Standard (based on RMS Voltage) |
| *** | Max Peak SPL = Max RMS SPL + 12 dB Crest Factor |
