L-Line

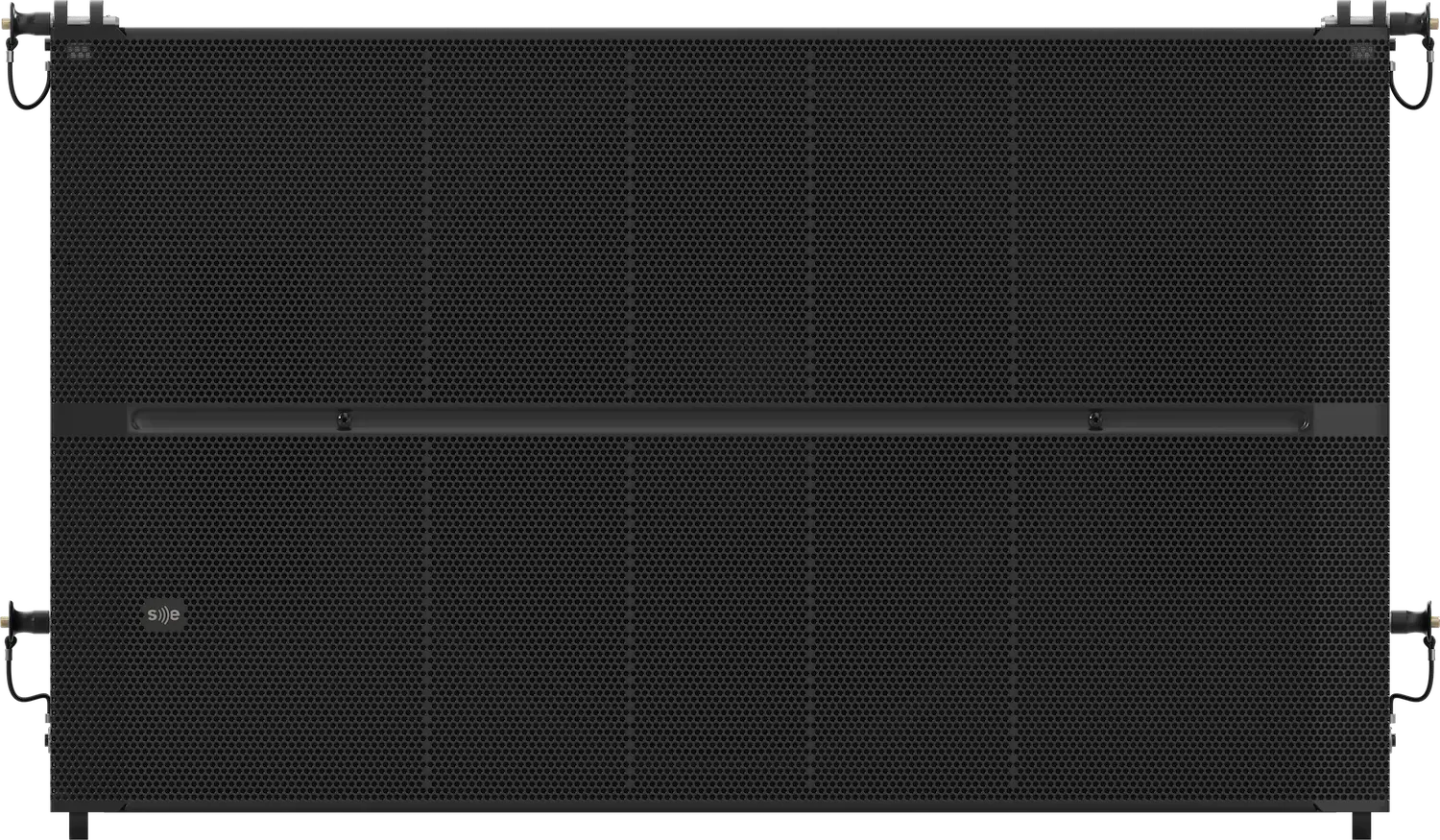

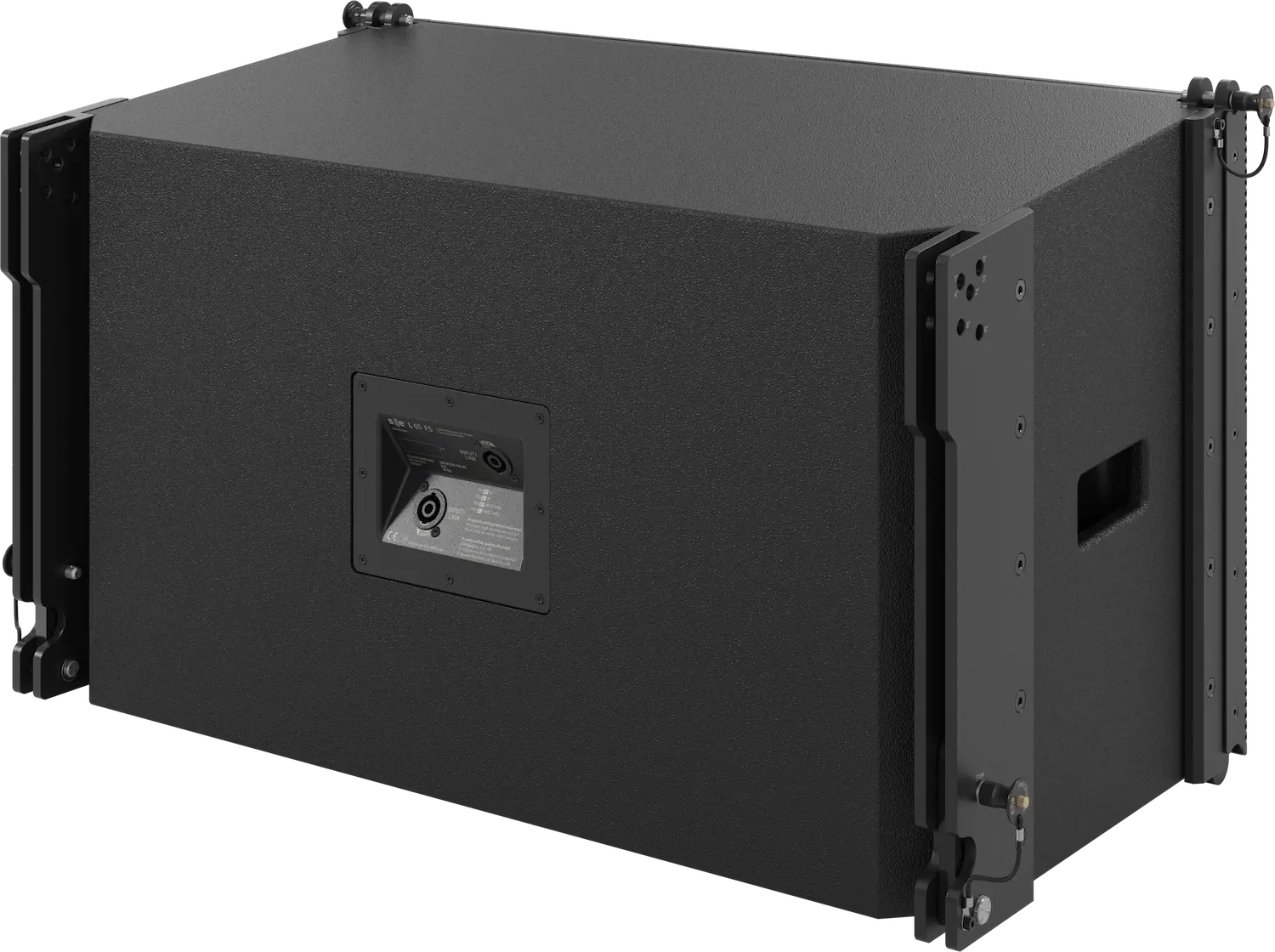

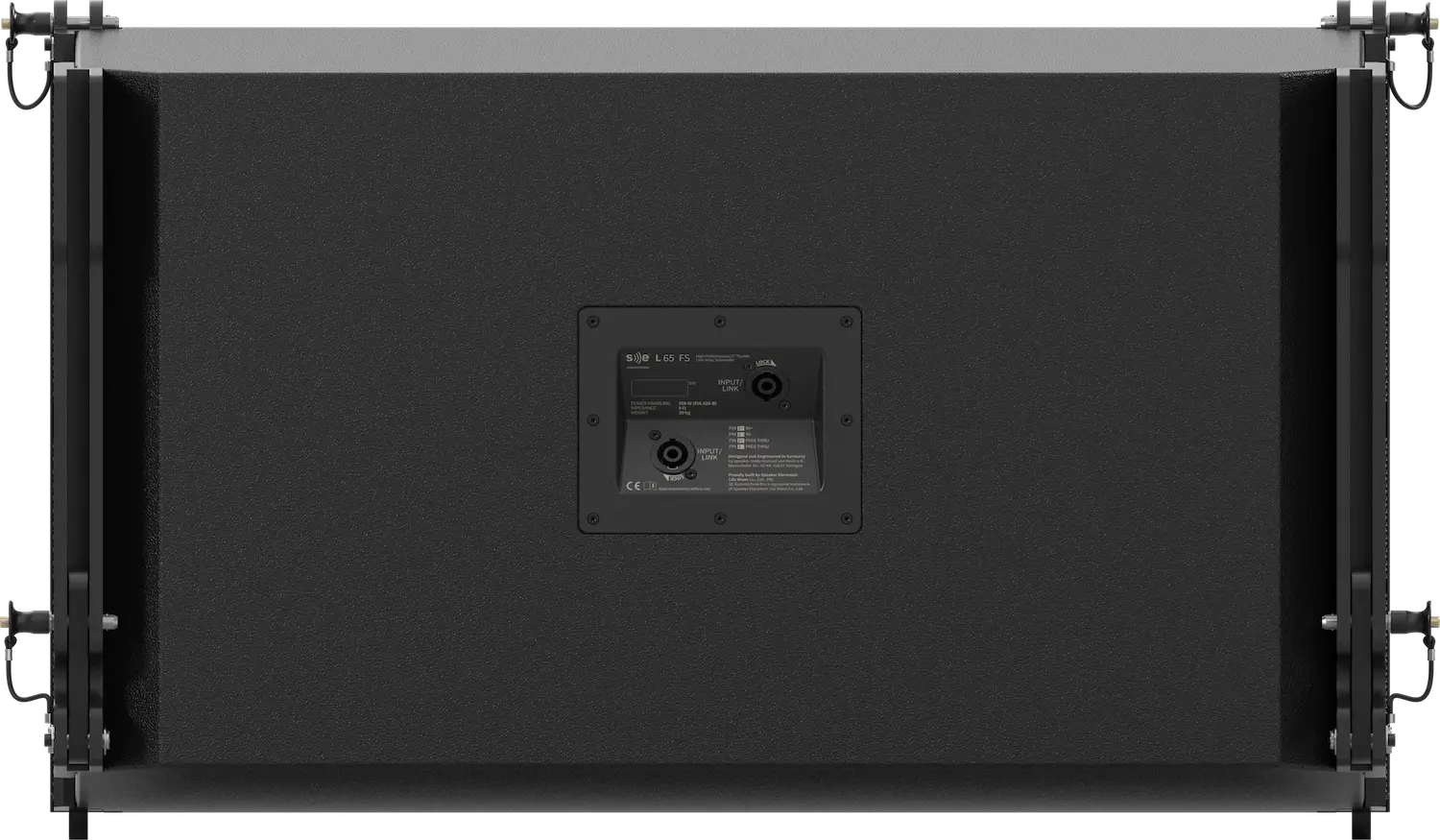

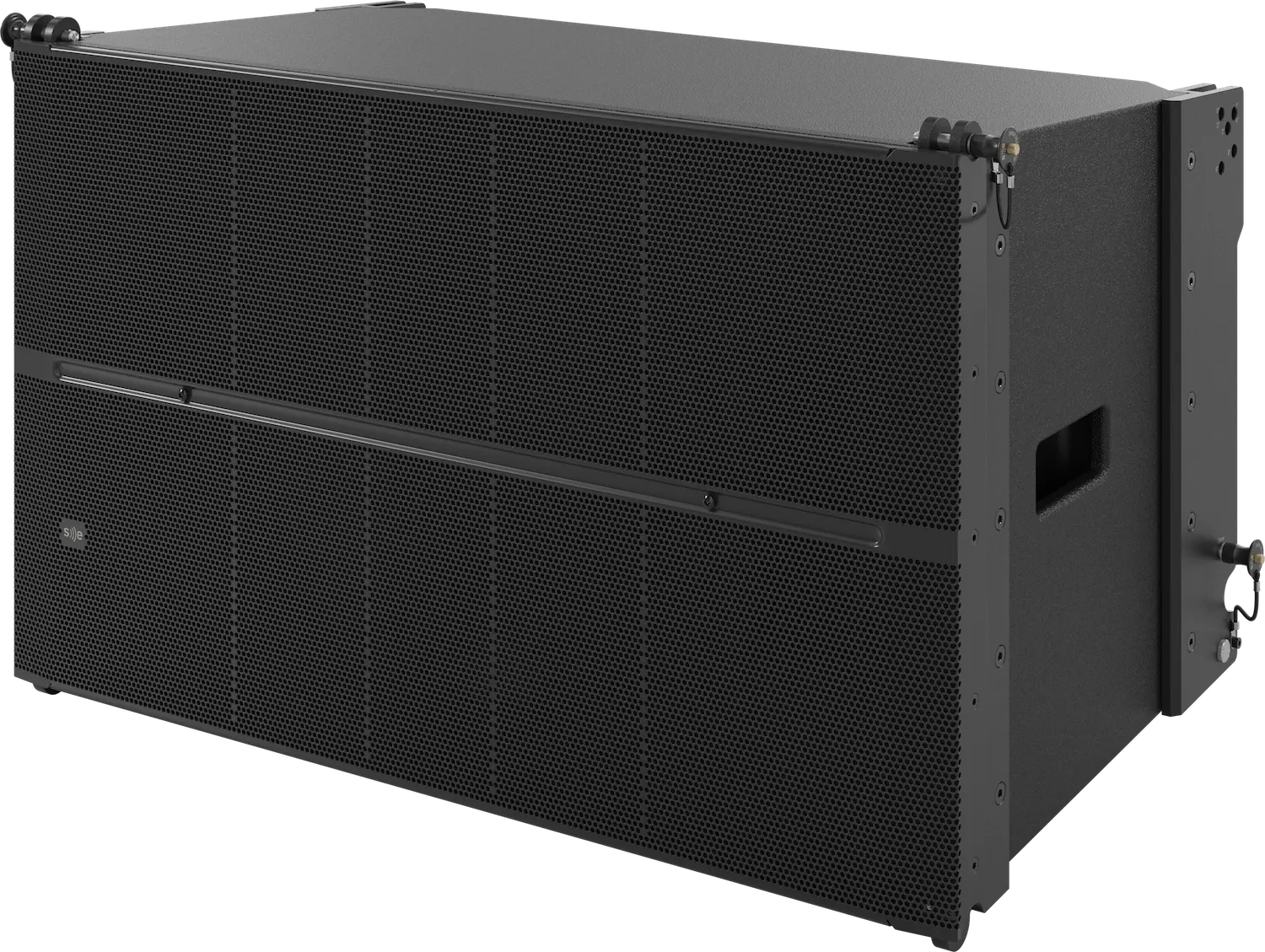

L 65 FS
Technical details
| Model Name | L 65 FS |
|---|---|
| Type | 1-way passive subwoofer system |
| TECHNICAL INFORMATION | |
| ACOUSTICAL DATA | |
| Frequency range (-3 dB)* | 60 Hz – 200 Hz |
| Frequency range (-6 dB)* | |
| Frequency range (-10 dB)* | 45 Hz – 275 Hz |
| Coverage angles (-6 dB) [H x V] | Omnidirectional |
| Nominal impedance | 8 Ω |
| Sensitivity* | 92 dB |
| Peak power | 2000 W |
| Continuous power** | 500 W |
| Maximum Peak SPL*** | 129 dB |
| System type | 1-way passive system |
| Crossover frequency | – |
| Transducers | 1 × 15" woofer (4" voice coil) |
| Enclosure type | Vented box |
| Connectors | Input / Link signal: two Neutrik speakON® NL4 |
| Wiring | Pins 1+/1- (both NL4): drivers Pins 2+/2- (both NL4): link signal |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] (incl. rigging) | 447 × 766 × 385 mm |
| Net weight | 30 kg |
| Packaging dimensions [H x W x D] | 573 × 810 × 480 mm |
| Total weight | 33 kg |
| Cabinet | 12 mm plywood |
| Cabinet finishing | Black polyurea coating |
| Grille | Powder coated perforated steel |
| Hardware | Side handles in plywood embedded in cabinet |
| Rigging | Four-point rigging system: two front and two rear 8 mm SE Audiotechnik® locking pins. |
| Splay angles | 0º, 1º, 2º, 3º, 4º, 6º, 8º |
| ACCESSORIES | |
| L 65 BF | Bumper frame |
| L 65 UFB | L35 Under Frame Adapter |
| ANNOTATION | |
| * | Measured with a 6th-order Butterworth low-pass filter applied at 130 Hz |
| ** | Whole space, 1W / 1m, on axis. Measured with Pink Noise from 50 Hz to 160 Hz |
| *** | According to EIA-426B Standard (based on RMS Voltage) |
| **** | Max Peak SPL = Max RMS SPL + 12 dB Crest Factor |
