L-Line

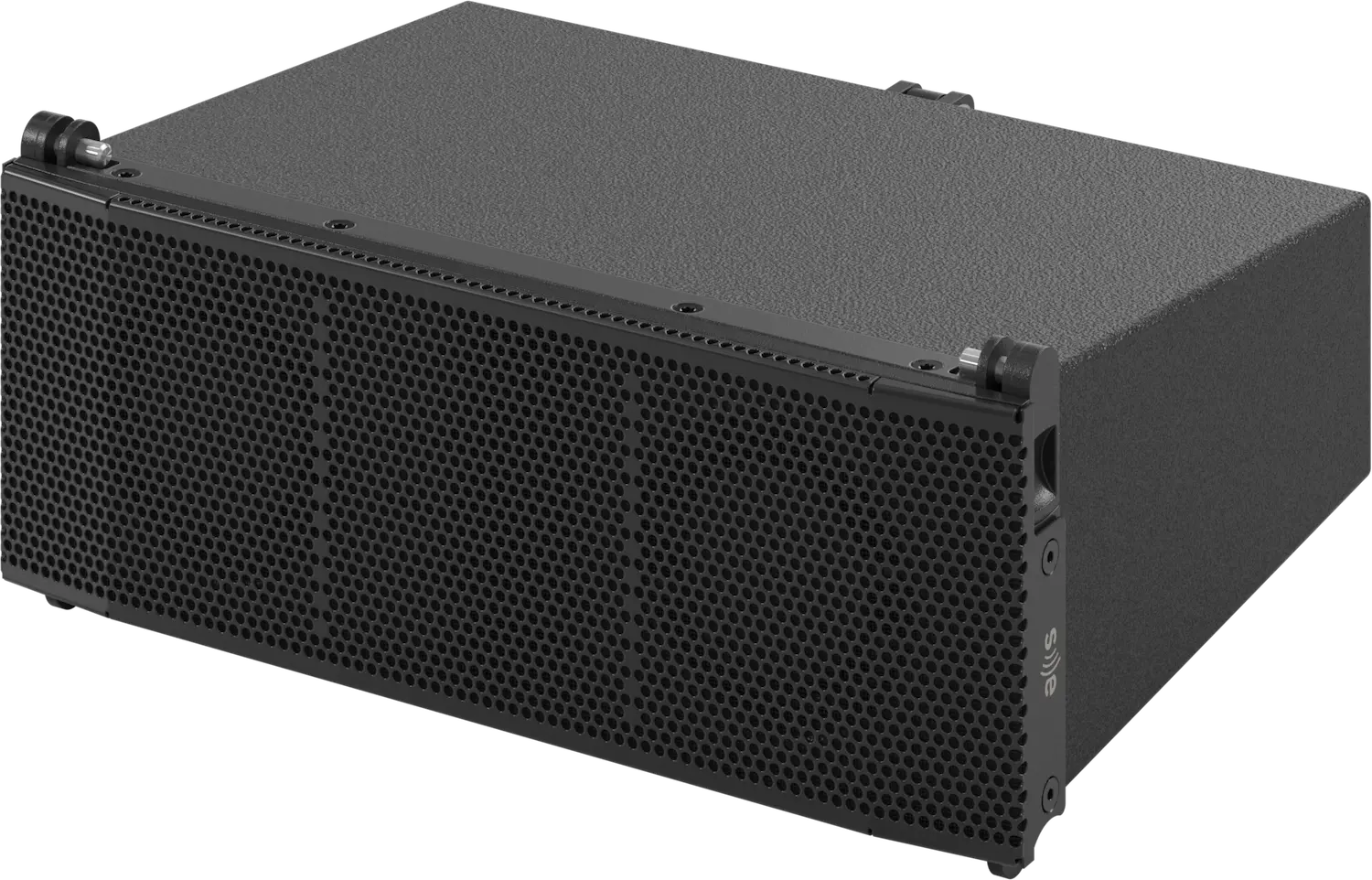

L 35 R
Technical details
| Model Name | L 35 R |
|---|---|
| Type | 2-way passive line array loudspeaker, closed box, weatherproof connectors |
| TECHNICAL INFORMATION | |
| ACOUSTICAL DATA | |
| Frequency range (-3 dB)* | 172 Hz – 18 kHz |
| Frequency range (-6 dB)* | |
| Frequency range (-10 dB)* | 134 Hz – 19 kHz |
| Coverage angles (-6 dB) [H x V] | 100° × 20° |
| Nominal impedance | 16 Ω |
| Sensitivity* | 91 dB |
| Peak power | 400 W |
| Continuous power** | 100 W |
| Maximum Peak SPL*** | 127 dB |
| System type | 2-way passive system |
| Crossover frequency | 2.2 kHz |
| Transducers | LF: 2 × 3.5" drivers (1" voice coil) MHF: 1" compression driver (1.4" voice coil) |
| Enclosure type | Closed box |

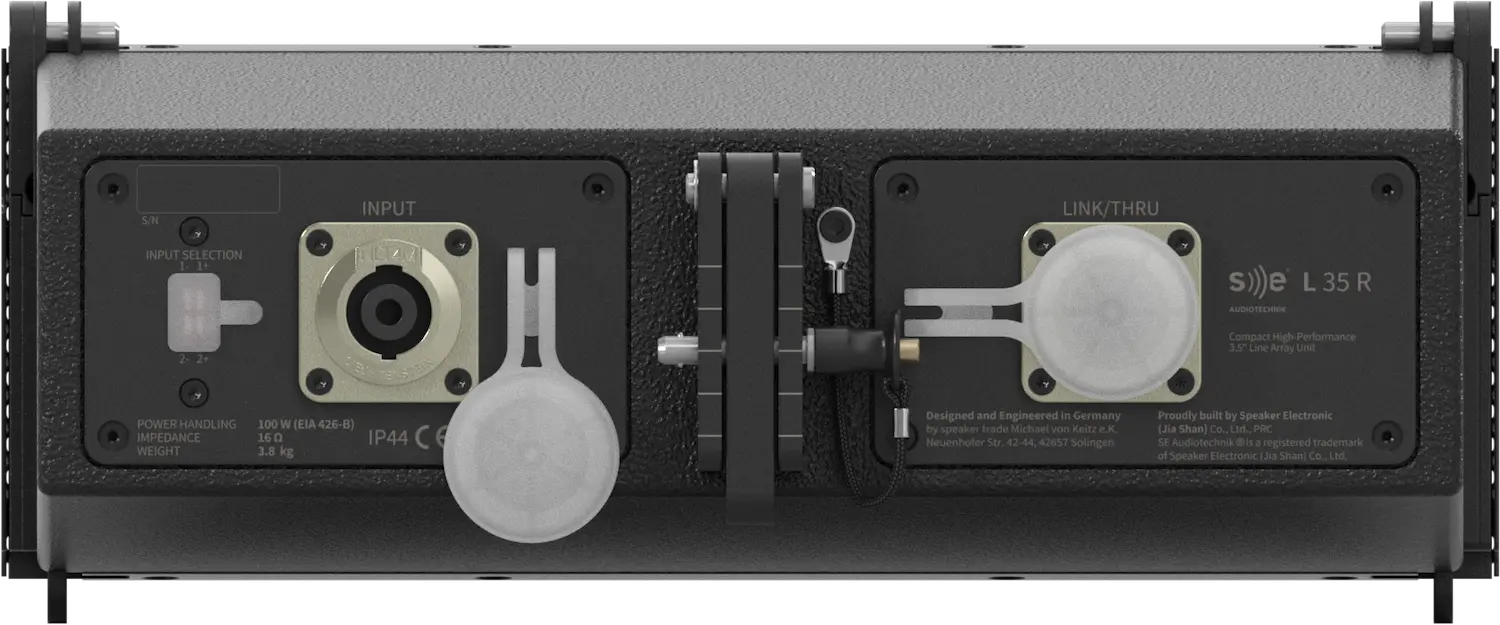

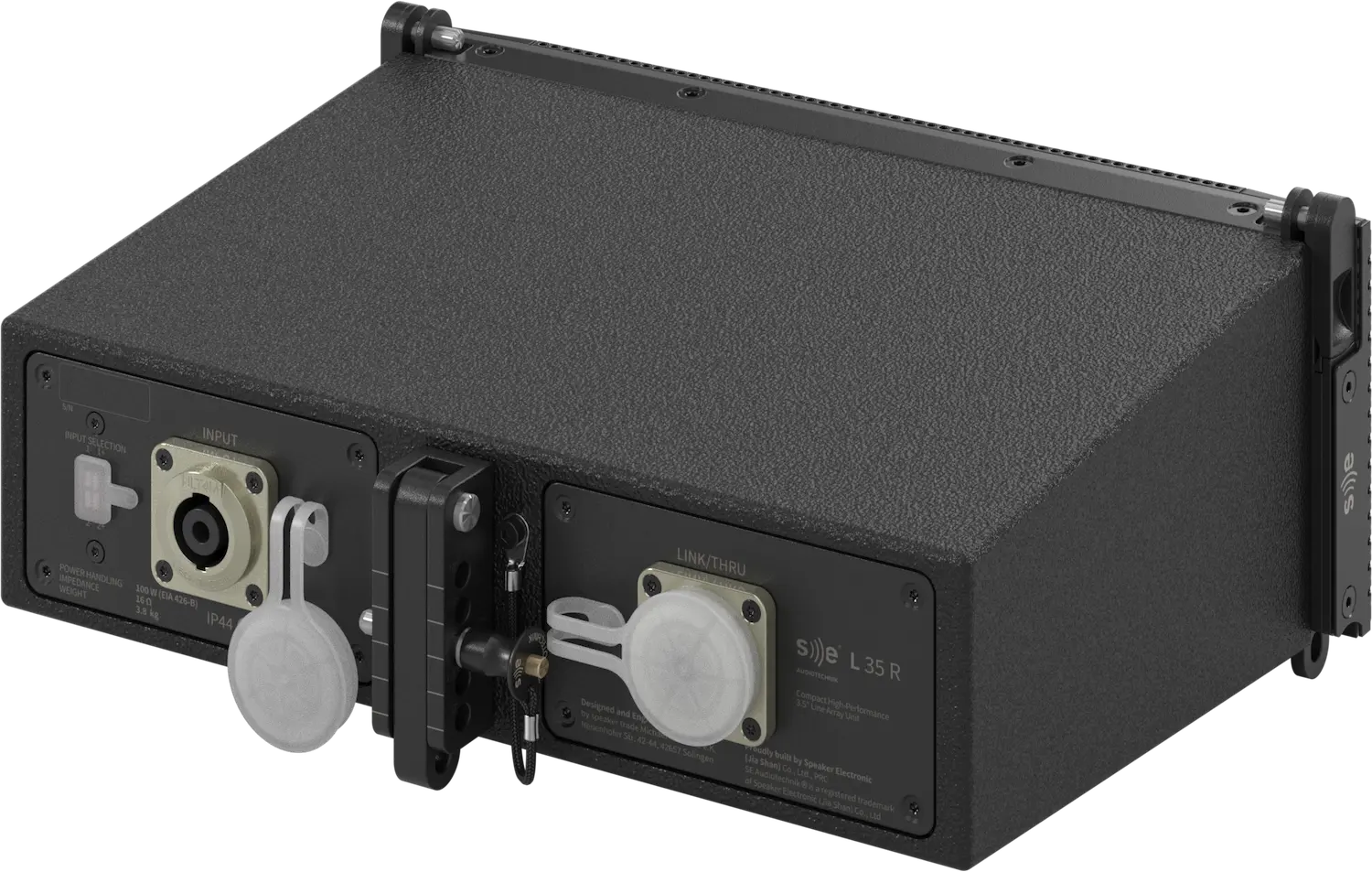

| Connectors | Input signal: 1 × weatherproof Neutrik speakON® NLT4MP Link output: 1 × weatherproof Neutrik speakON® NLT4MP |
| Wiring | Input signal: switchable 1+/1- or 2+/2- Link output: 1+/1- and 2+/2- |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] (incl. rigging) | 131 × 312 × 234 mm |
| Weight | 3.8 kg |
| Packaging dimensions [H x W x D] | 225 × 415 × 311 mm |
| Total weight | 4.9 kg |
| Cabinet | 12 mm plywood with die-cast aluminium front |
| Cabinet finishing | Black or white polyurea coating |
| Grille | Powder coated perforated steel |
| Hardware | Additional front steel grille |
| Rigging | Three-point rigging system: two front and one rear 6 mm SE Audiotechnik® locking pins. |
| Splay angles | 0º, 2.5º, 5º, 7.5º, 10º |
| ACCESSORIES | |
| L 35 BF | Bumper frame |
| L 35 UB | U-bracket |
| B 15 SFi L35 | Stacking frame for B 15 or B 15A subwoofers |
| B 18 SFi L35 | Stacking frame for B 18 subwoofer |
| SPS20 | Pole bar |
| ANNOTATION | |
| * | Measured with IA 402D amplifier and 2L35R preset |
| ** | Whole space, 1W / 1m, on axis |
| *** | According to EIA-426B Standard (based on RMS Voltage) |
| **** | For 4 units measured with IA 402D amplifier and 4L35R preset + 12 dB Crest Factor |
