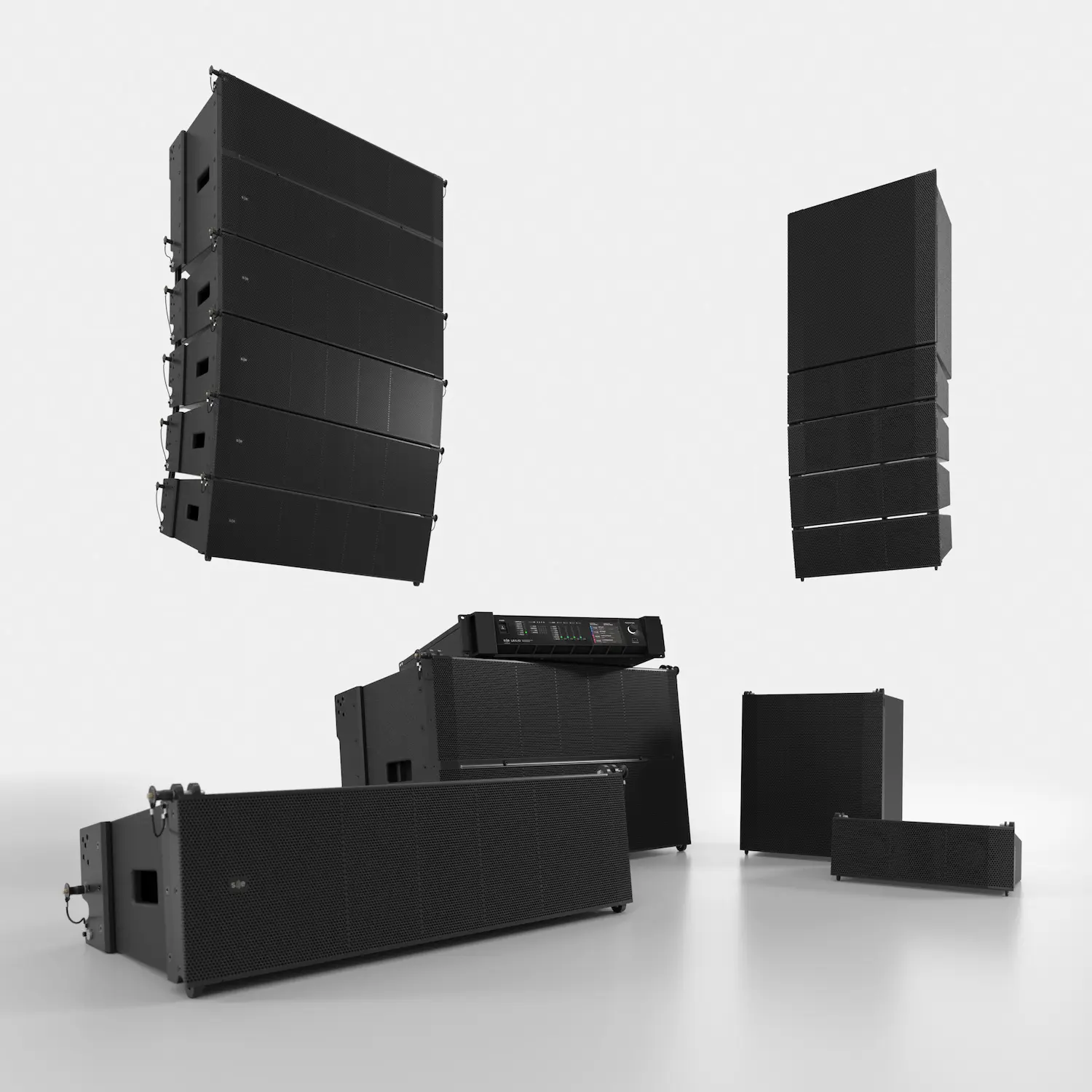

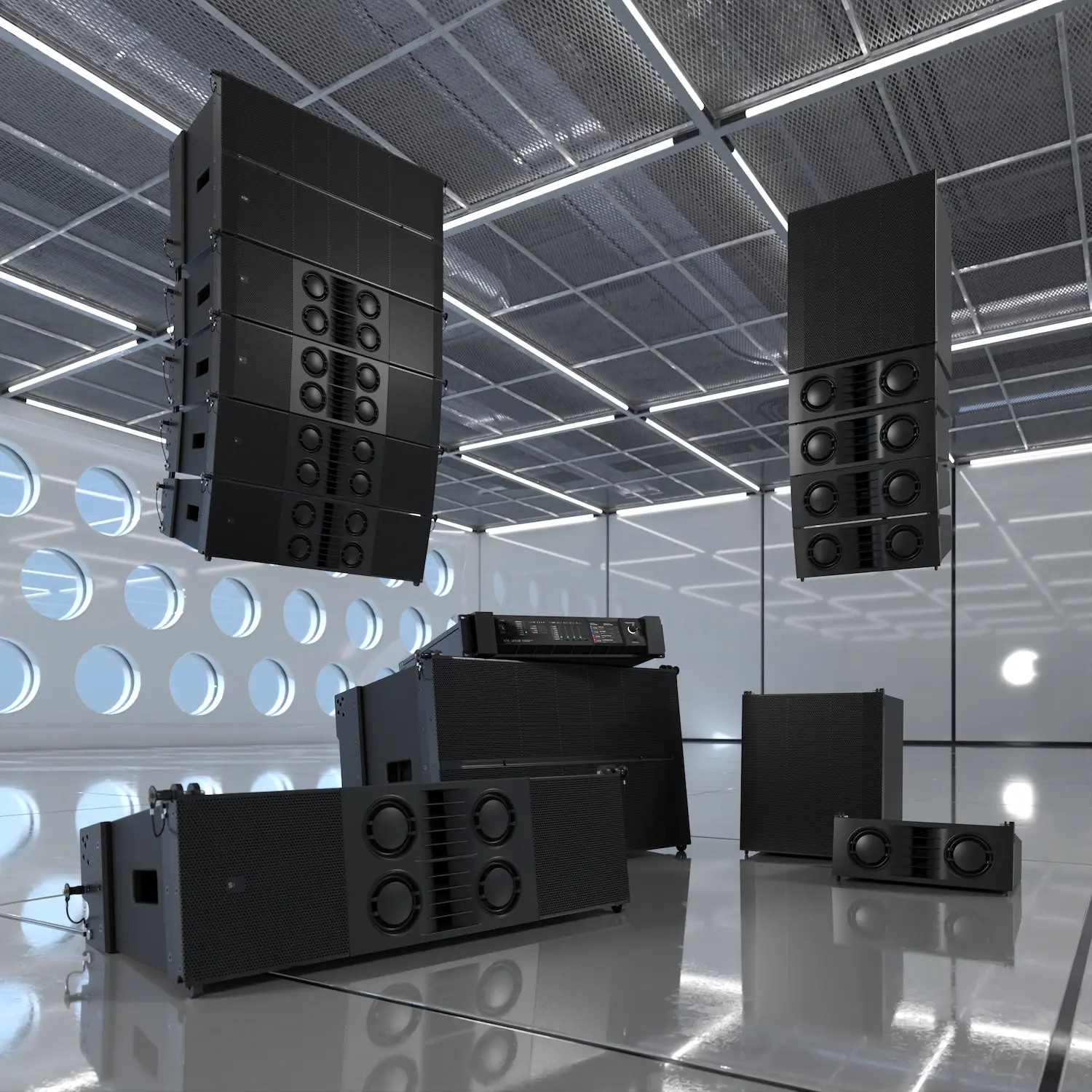

L-Line

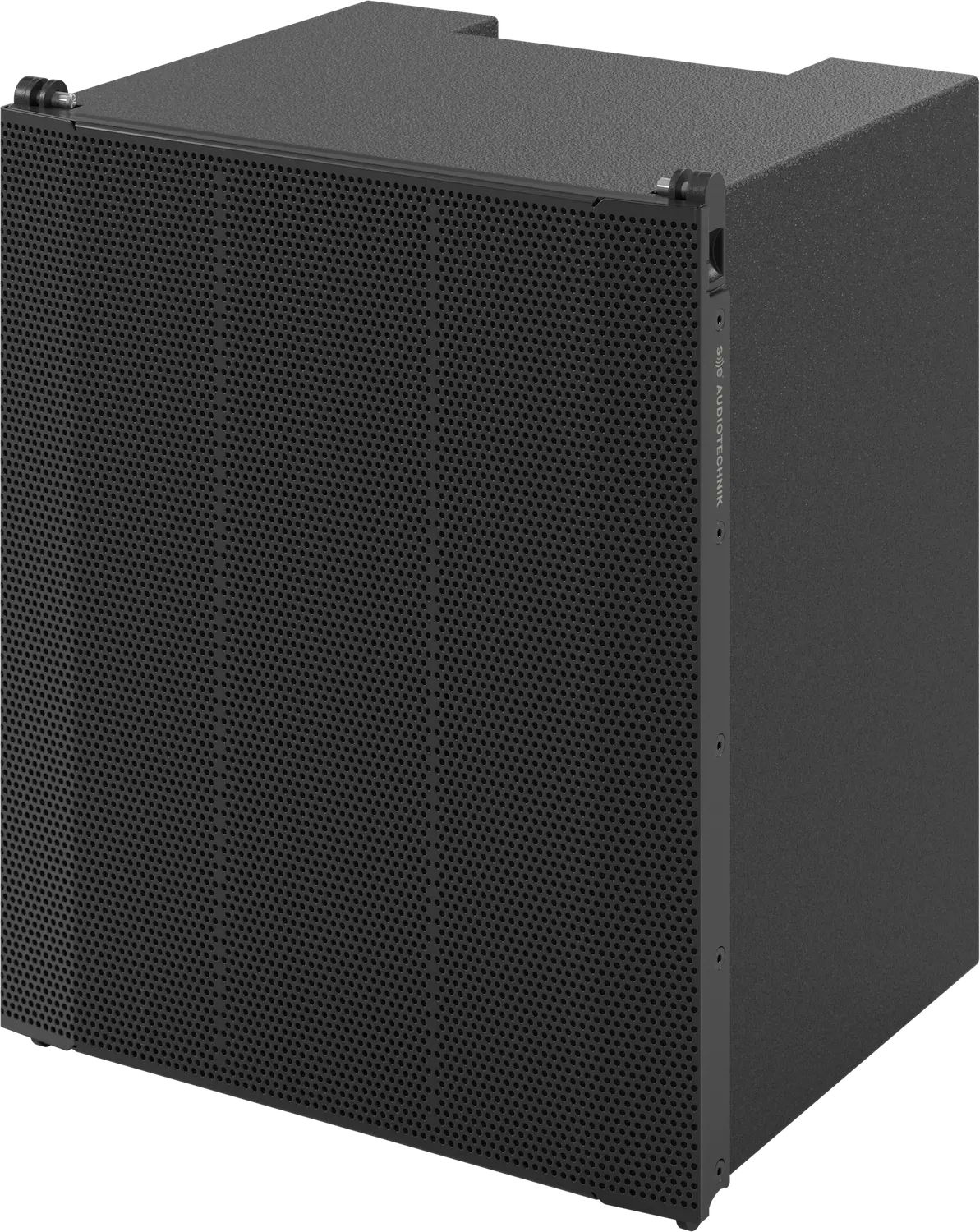

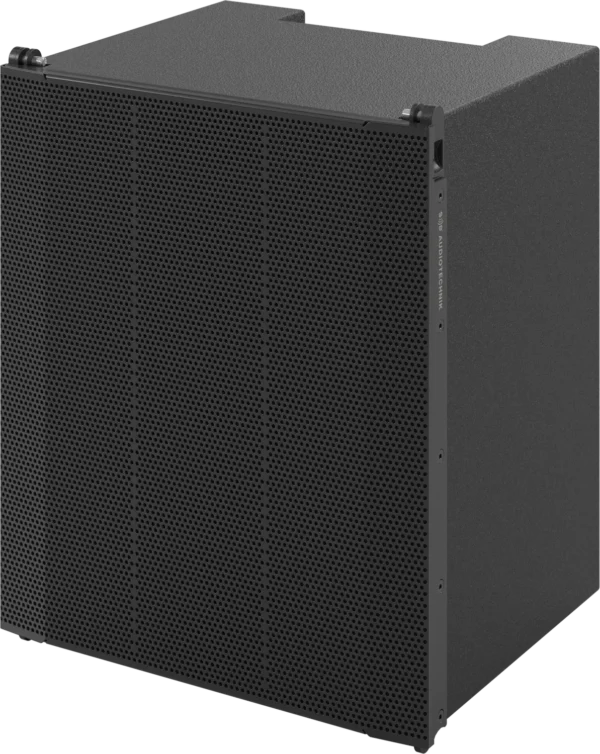

L 35 FS R
Technical details
| Model Name | L 35 FS R |
|---|---|
| Type | 1-way passive subwoofer system, weatherproof connectors |
| TECHNICAL INFORMATION | |
| ACOUSTICAL DATA | |
| Frequency range (-3 dB)* | 65 Hz – 123 Hz |
| Frequency range (-6 dB)* | |
| Frequency range (-10 dB)* | 57 Hz – 165 Hz |
| Coverage angles (-6 dB) [H x V] | Omnidirectional |
| Nominal impedance | 8 Ω |
| Sensitivity* | 86 dB |
| Peak power | 1200 W |
| Continuous power** | 300 W |
| Maximum Peak SPL*** | 124 dB |
| System type | 1-way passive system |
| Crossover frequency | – |
| Transducers | 1 × 8" driver (2.6" voice coil) |
| Enclosure type | Vented box |

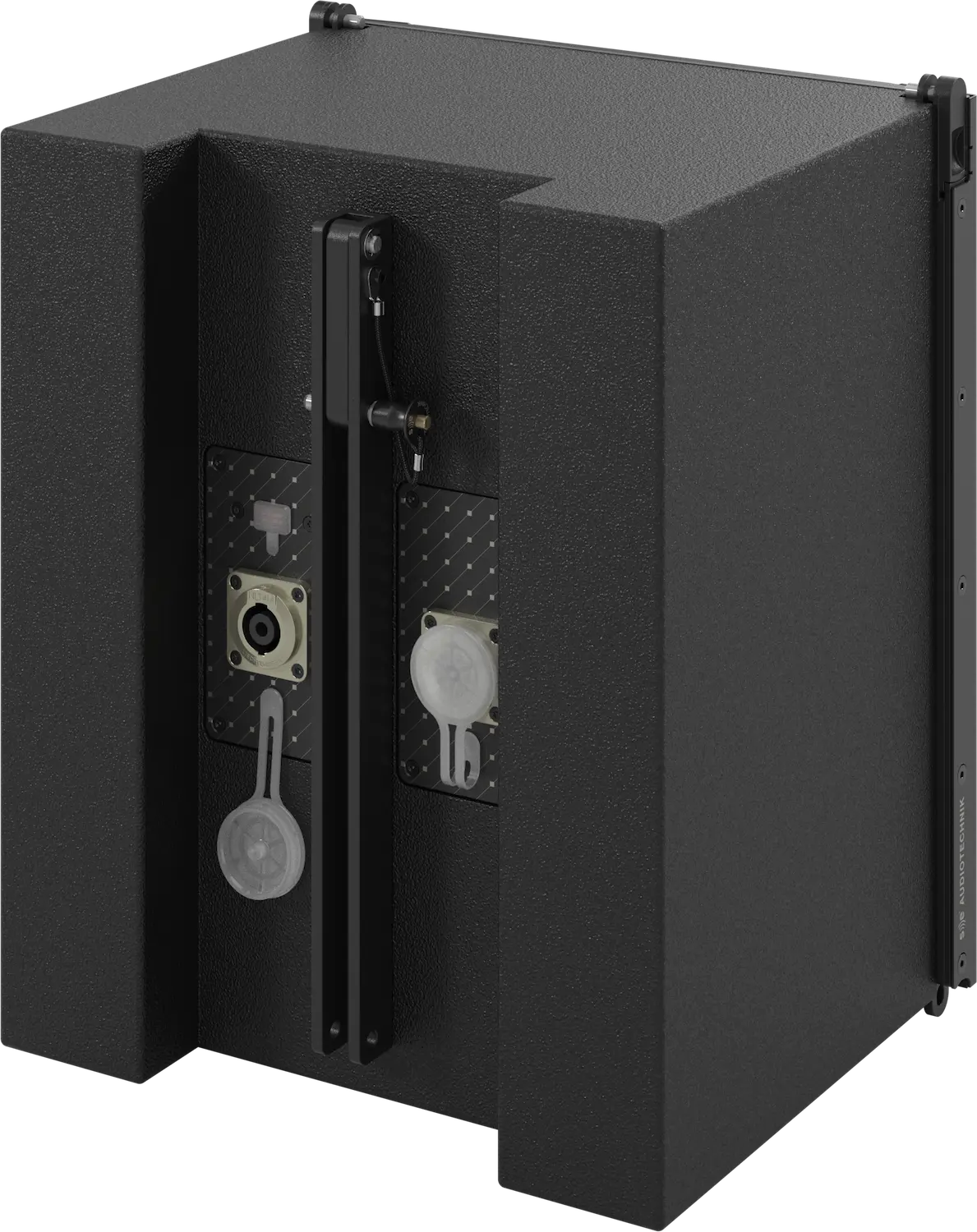

| Connectors | Input signal: 1 × weatherproof Neutrik speakON® NLT4MP Link output: 1 × weatherproof Neutrik speakON® NLT4MP |
| Wiring | Input signal: switchable 1+/1- or 2+/2- Link output: 1+/1- and 2+/2- |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] (incl. rigging) | 379 × 312 × 244 mm |
| Net weight | 9.1 kg |
| Packaging dimensions [H x W x D] | 473 × 410 × 340 mm |
| Total weight | 10.2 kg |
| Cabinet | 12 mm plywood |
| Cabinet finishing | Black or white polyurea coating |

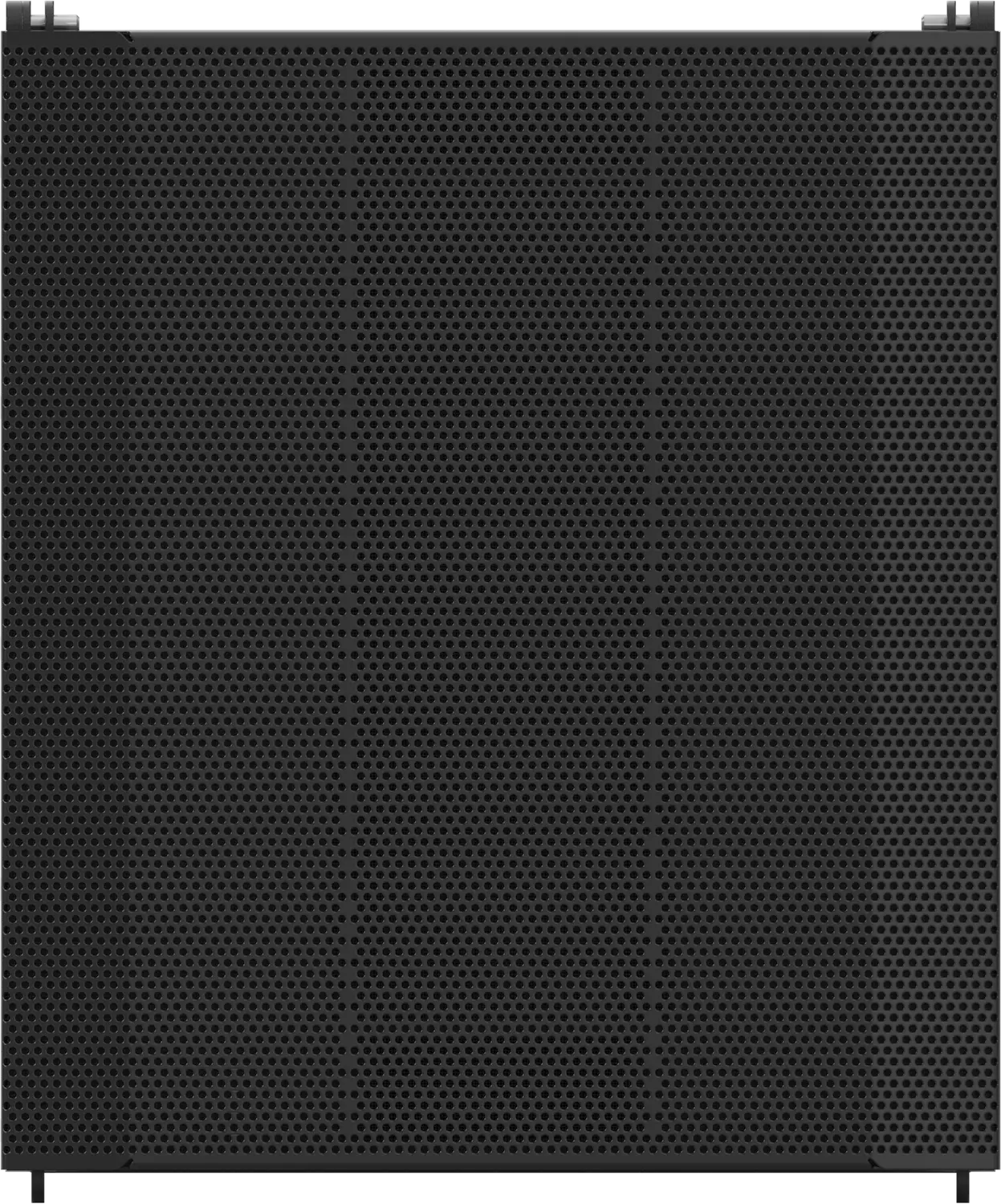

| Grille | Powder coated perforated steel |
| Hardware | Additional front steel grille |
| Rigging | Three-point rigging system: two front and one rear 6 mm SE Audiotechnik® locking pins. |
| Splay angles | 0º |
| ACCESSORIES | |
| L 35 BF | Bumper frame |
| ANNOTATION | |
| * | Measured with IA 402D amplifier and L35FS+R preset |
| ** | Whole space, 1W / 1m, on axis |
| *** | According to EIA-426B Standard (based on RMS Voltage) |
| **** | For 2 flysubs measured with IA 402D amplifier and L35FS+R preset + 12 dB Crest Factor |
