Amps & Controller

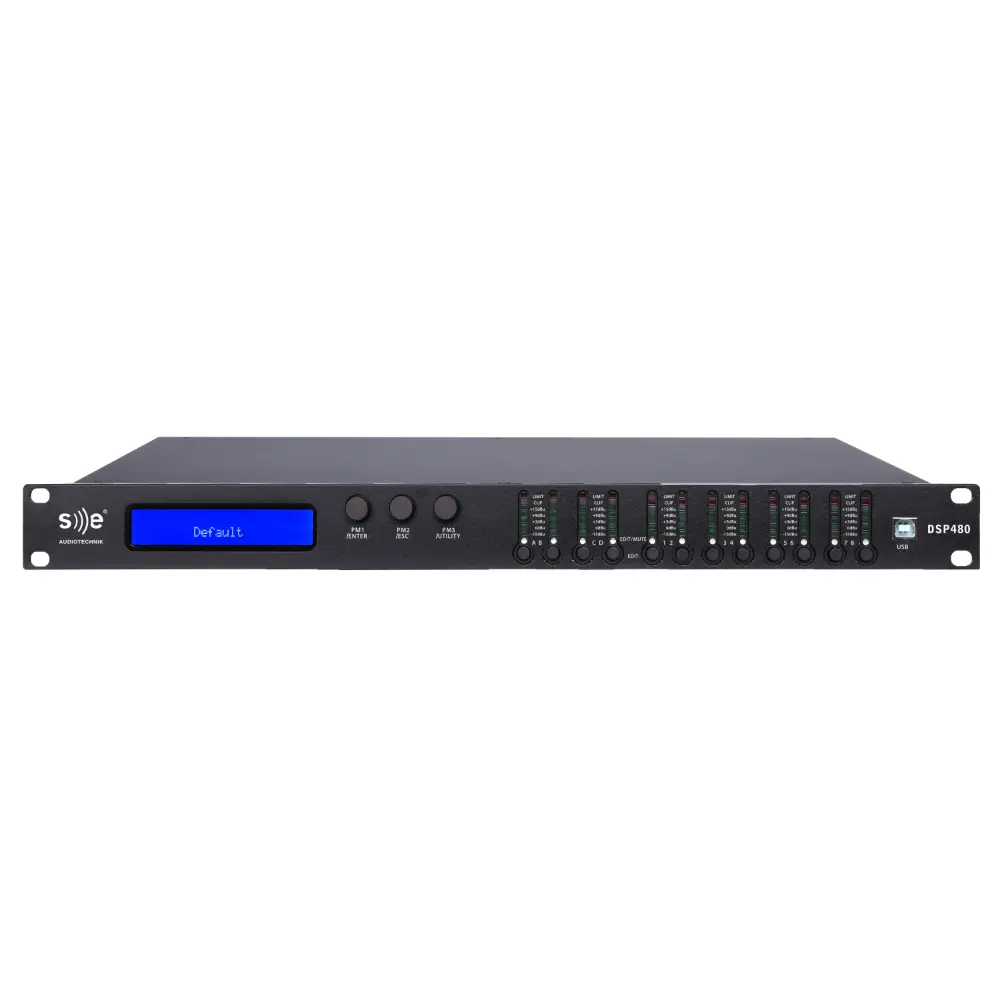

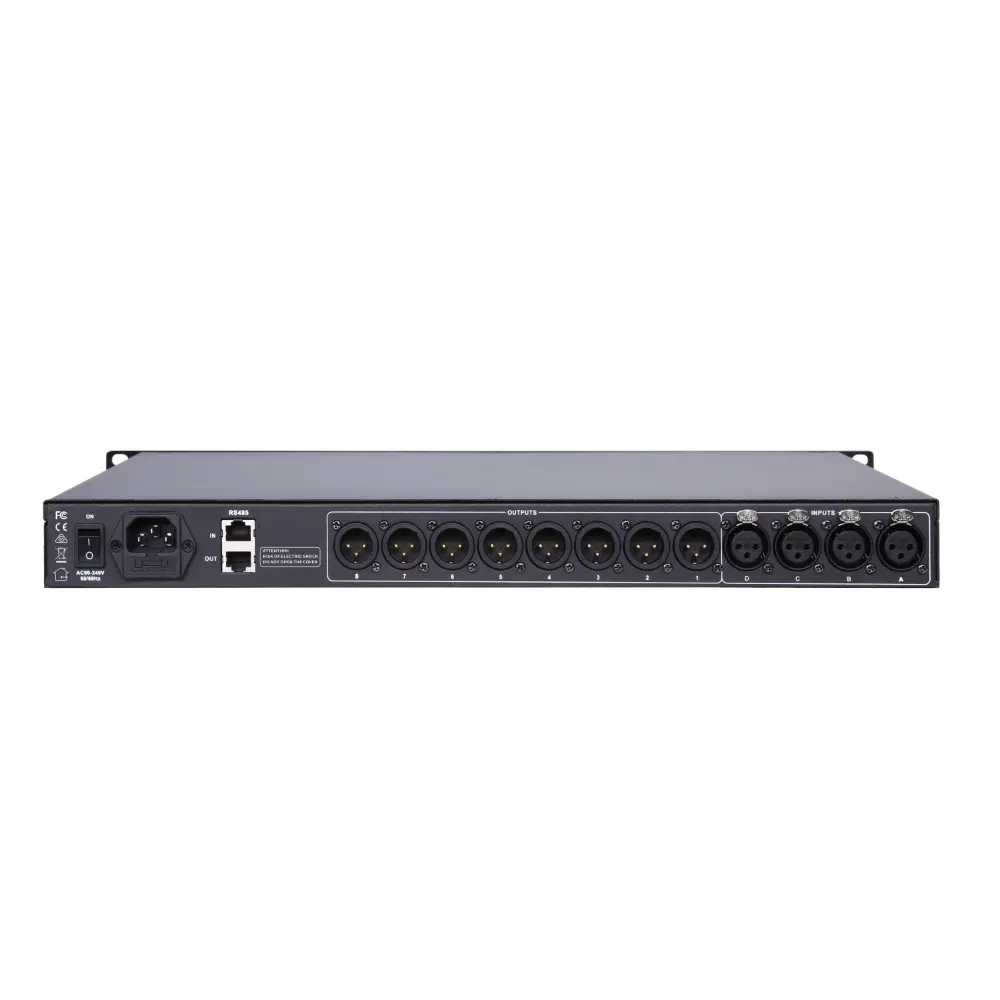

DSP 480
Available in:East Asia, South Asia, Southeast Asia
Technical details
| Model Name | DSP 480 |
|---|---|
| Type | Digital Speaker Processor |
| Analog Input Signal | ChA/ChB/ChC/ChD Balanced Female XLR |
| Maximum Input Level | +16 dBu |
| Analog Output Signal | Ch1–Ch8 Balanced Male XLR |
| Maximum Output Level | +16 dBu |
| Sampling Frequency | 48 kHz |
| S/N Ratio | 107 dBA |
| THD+N | 0.005% |
| Frequency Response (Bypass) | 20 Hz – 20 kHz (±1 dB) |
| Power Supply | Switching Power Supply |
| PC Control | USB, RS485 |
The following overview contains information on the regulated substances used in the product and on compliance with the applicable limit values.
"Lead (Pb): Used in printed circuit boards (printed circuit board | electronic components on the PCB | internal connecting wires | copper traces) (permitted exemption).
"
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
Environmental Protection Use Period: 15 year(s)
