V-Line
V-L8
Technical details
| Model Name | V-L8 |
|---|---|
| Type | Dual 8" two-way line array loudspeaker |
| Frequency Range (-6dB) | 70 Hz - 19 kHz |
| Horizontal Coverage (-6dB) | 100° |
| Vertical Coverage (-6dB) | 10° × 1, adjustable in 1° steps |
| Max. Array Elements | 24 pcs |
| Power (LF RMS/Peak) | 500 W / 2000 W |
| Power (HF RMS/Peak) | 150 W / 600 W |
| Sensitivity (LF, 1W/1M) | 103 dB |
| Sensitivity (HF, 1W/1M) | 108 dB |
| Peak SPL (AES, 1m) | 136 dB |
| LF Driver(s) | 2 × 8" Neodymium, 2" VC; 1 × 16 Ω (2 × 8 Ω in series); 2 × 250 W RMS |
| HF Driver(s) | 2 × 1" Neodymium Titanium Compression, 1.35" VC; 1 × 16 Ω (2 × 8 Ω in series); 2 × 75 W RMS |
| Recommended Amplifier | 4 × V-L8 per group: LF 2 × 1200 W / 8 Ω, HF 2 × 800 W / 8 Ω, dual channel |
| Recommended Crossover | LF/HF: 1.6 kHz |
| Enclosure Material/Finish | 18 mm birch plywood, polyurea coating |
| Suspension System | 6061 aluminum profile, SUS 630 stainless steel pins, 12× safety factor |
| Input Connectors | Neutrik® Speakon 2×NL-4: pins+1/-1 LF, pins+2/-2 HF |

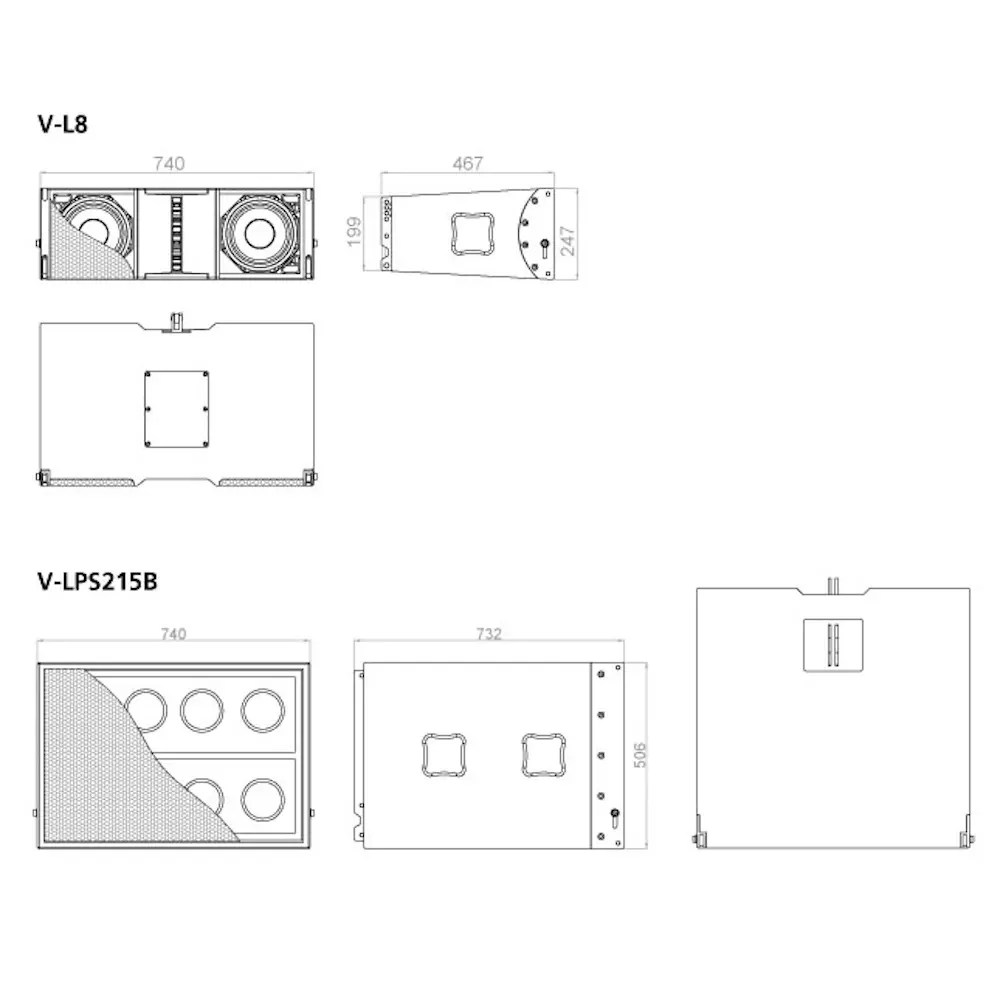

| Dimensions (W×H×D) | 740 × 247 × 467 mm |
| Net Weight | 27.5 kg |
