V-Line
V-12
Available in:East Asia, South Asia, Southeast Asia
Technical details
| Model Name | V-12 |
|---|---|
| Type | 12" passive two-way fullrange speaker |
| Frequency Range (-6dB) | 55 Hz - 19 kHz |
| Power (Rated/Peak) | 500 W / 2000 W |
| Sensitivity (1W/1M) | 99 dB |
| Peak SPL (1M) | 132 dB |
| Impedance | 8 Ω |
| Coverage Angle (Horizontal × Vertical) | 70° × 55°, rotatable horn |
| LF Driver | 12" Neodymium Driver, 3" Voice Coil |
| HF Driver | 1.4" Neodymium PEN Compression Driver, 1.75" Voice Coil |
| Protection | HF Protection |
| Input Connectors | 2× Neutrik NL-4, pins+1/-1 input/THRU, pins+2/-2 not connected |
| Suspension Points | 11 × M8 suspension points |
| Cabinet Material/Finish | 15 mm Birch Plywood / Polyurea |

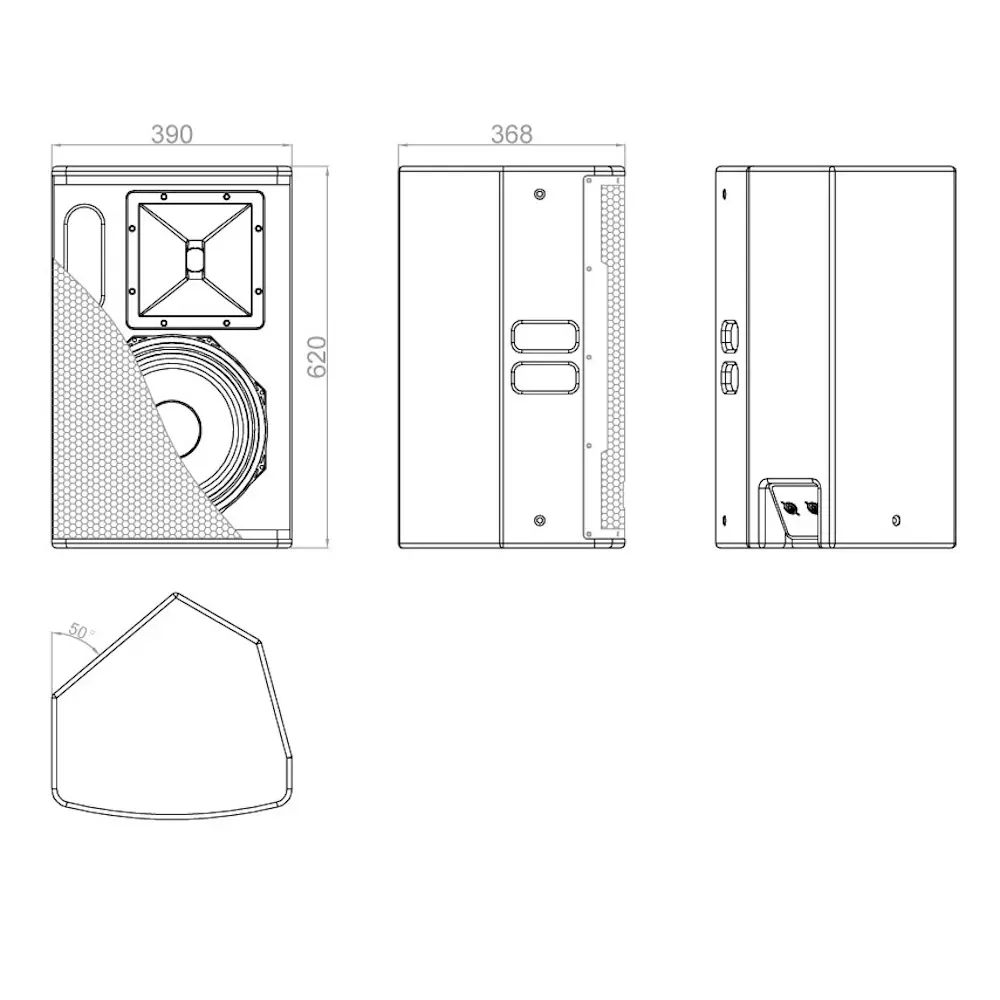

| Dimensions (W×H×D) | 390 × 620 × 368 mm |
| Net Weight | 22.5 kg |
| Features | Comfortable handles, vertically adjustable support (SM707), M8 suspension points |
Packaging:
Cardboard outer packaging: 84.48% (1960 g) | Foam inner padding: 12.93% (300 g) | Plastic protective sleeve: 2.59% (60 g)
The following overview contains information on the regulated substances used in the product and on compliance with the applicable limit values.
"Lead (Pb): Used in printed circuit boards (printed circuit board | electronic components on the PCB | internal connecting wires | copper traces) (permitted exemption).
"
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
Environmental Protection Use Period: 15 year(s)
