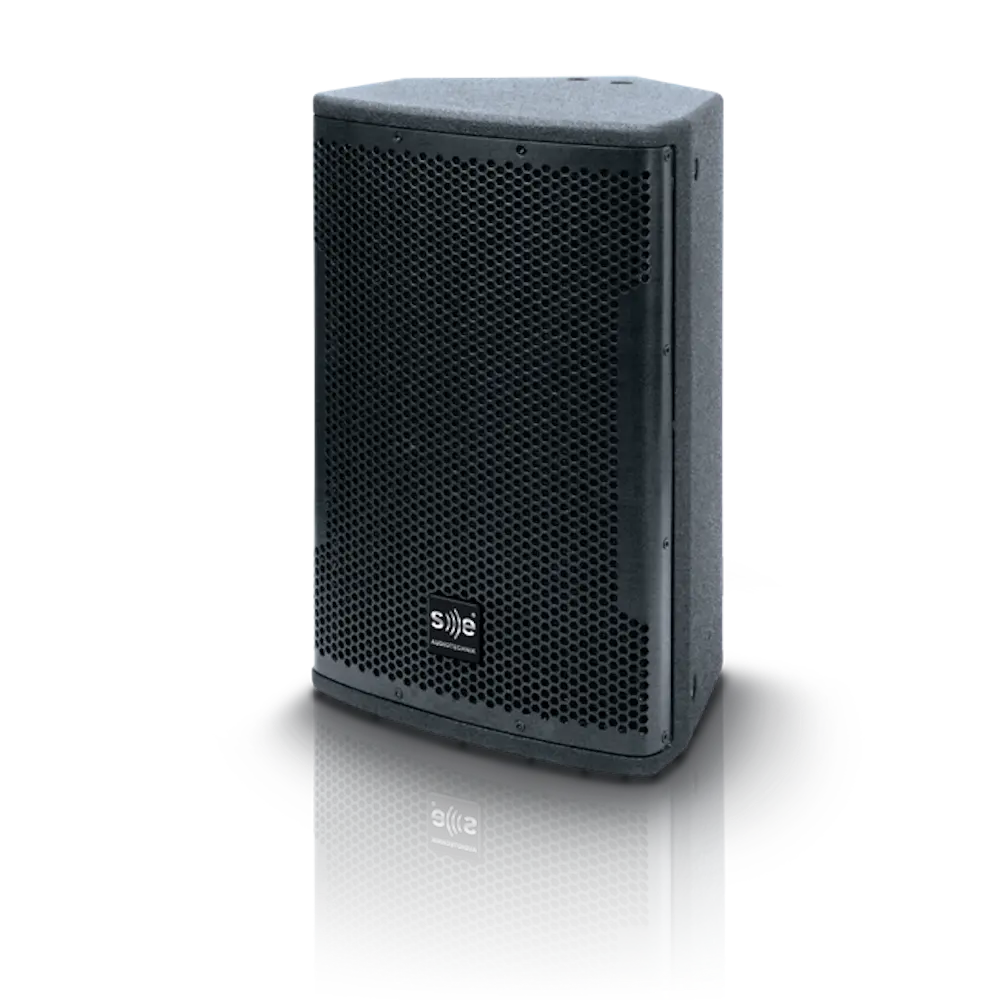

V-Line
V-10
Available in:East Asia, South Asia, Southeast Asia
Technical details
| Model Name | V-10 |
|---|---|
| Type | 10" Passive Two-way Full-range |
| Frequency Range (-6dB) | 65 Hz - 19 kHz |
| Power (Rated/Peak) | 350 W / 1400 W |
| Sensitivity (1W/1M) | 97 dB |
| Peak SPL (1M) | 128 dB |
| Impedance | 8 Ω |
| Coverage Angle (Horizontal × Vertical) | 70° × 55°, rotatable horn |
| LF Driver | 10" Neodymium Driver, 3" Voice Coil |
| HF Driver | 1" Neodymium Titanium Compression Driver, 1.35" Voice Coil |
| Protection | HF Protection |
| Input Connectors | 2× Neutrik NL-4 |

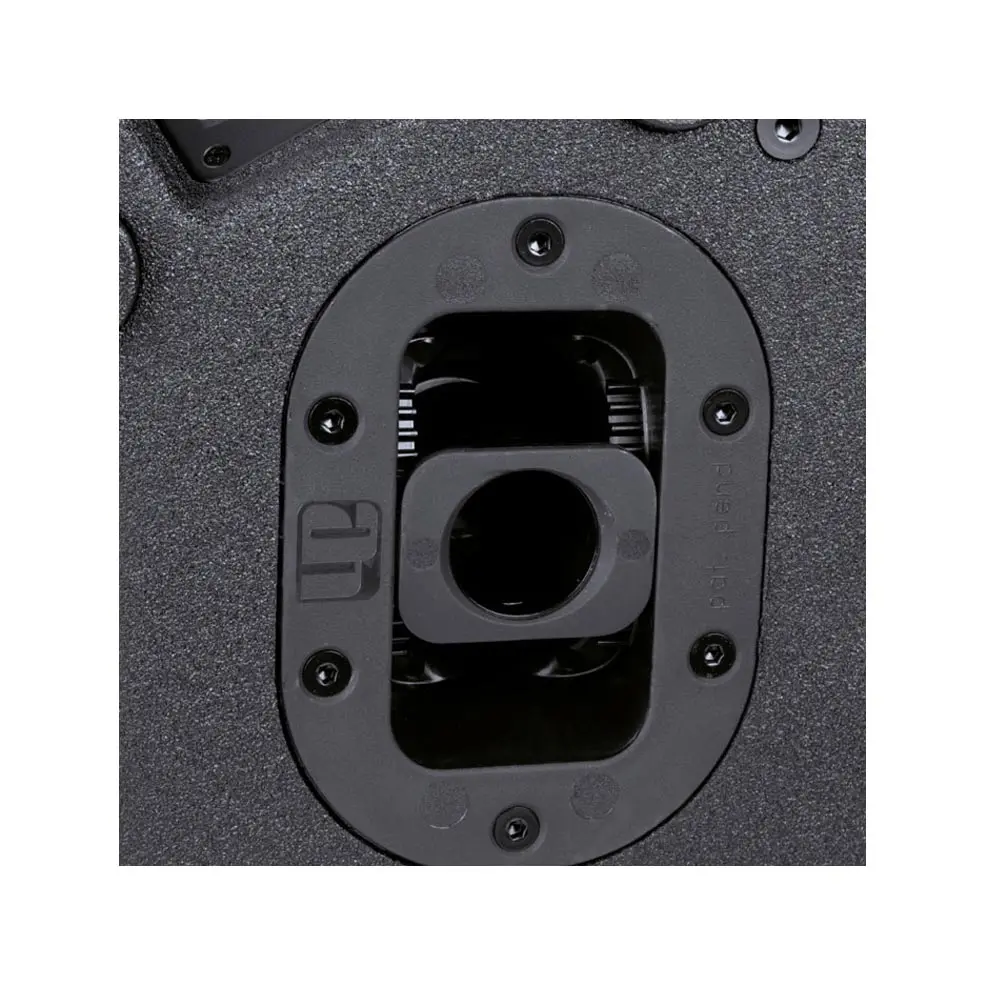

| Suspension Points | 15 × M8 |
| Cabinet Material/Finish | 15mm Birch Plywood / Polyurea |

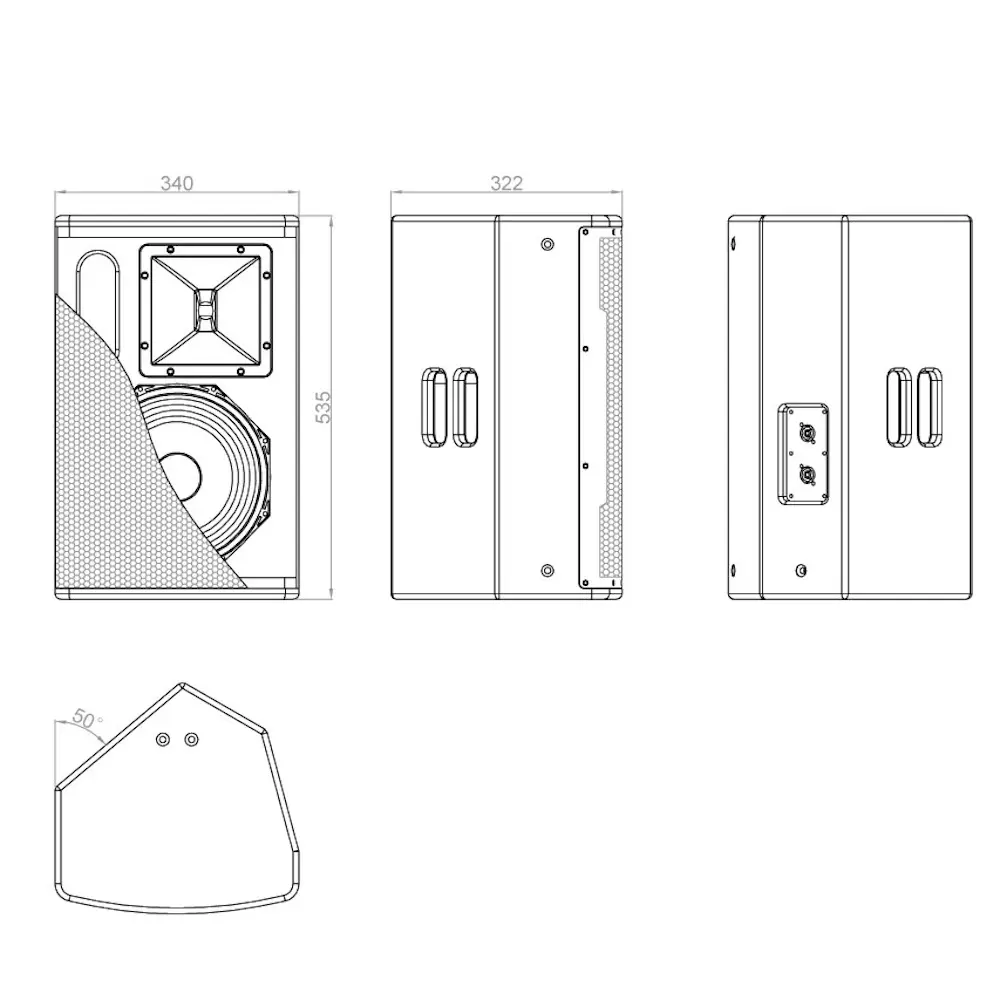

| Dimensions (W×H×D) | 340 × 535 × 322 mm |
| Net Weight | 16.3 kg |
| Features | Comfortable handles, vertically adjustable support (SM707), M8 suspension points |
Packaging:
Cardboard outer packaging: 84.41% (1570 g) | Foam inner padding: 12.90% (240 g) | Plastic protective sleeve: 2.69% (50 g)
The following overview contains information on the regulated substances used in the product and on compliance with the applicable limit values.
"Lead (Pb): Used in printed circuit boards (printed circuit board | electronic components on the PCB | internal connecting wires | copper traces) (permitted exemption).
"
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
Environmental Protection Use Period: 15 year(s)
