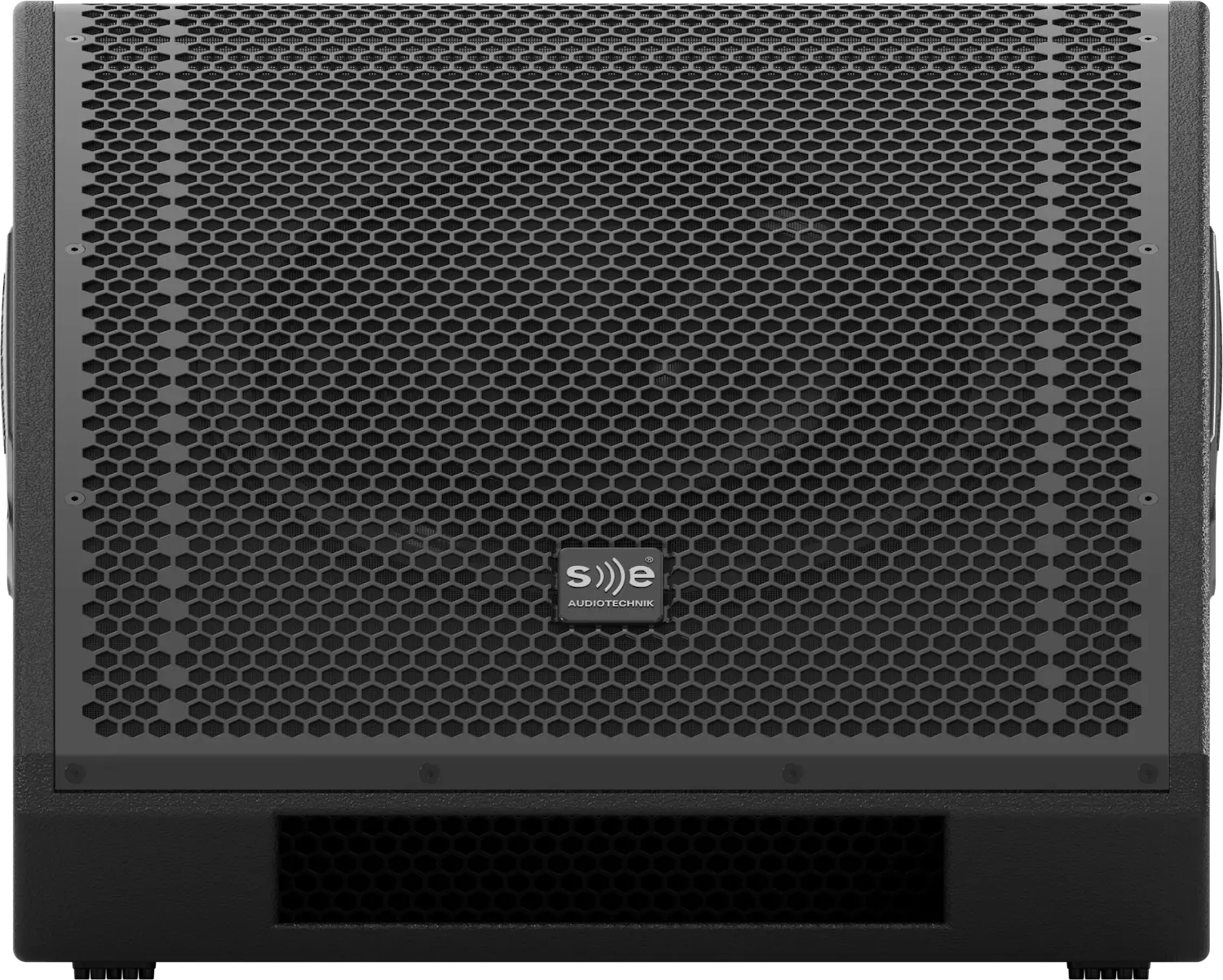

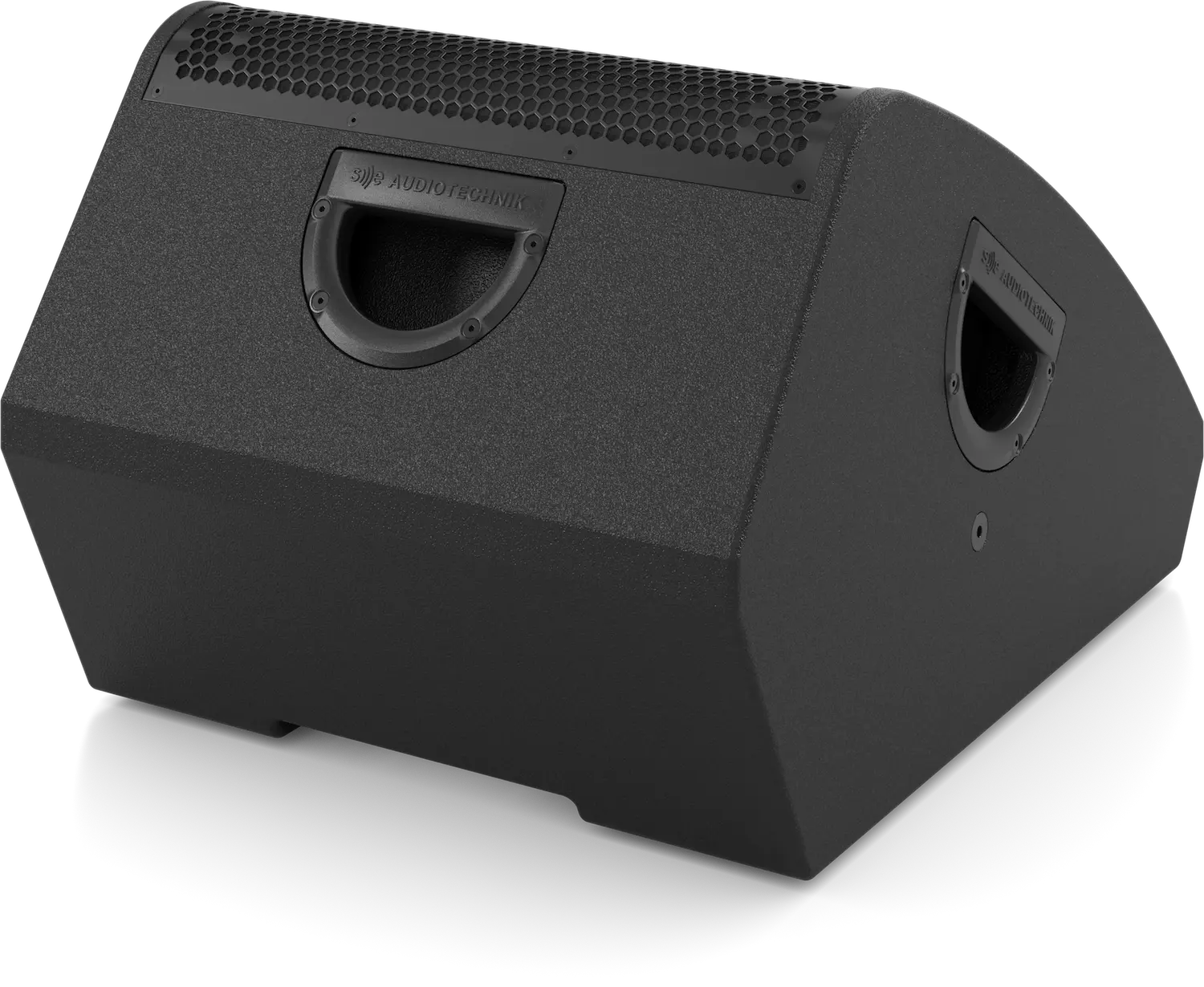

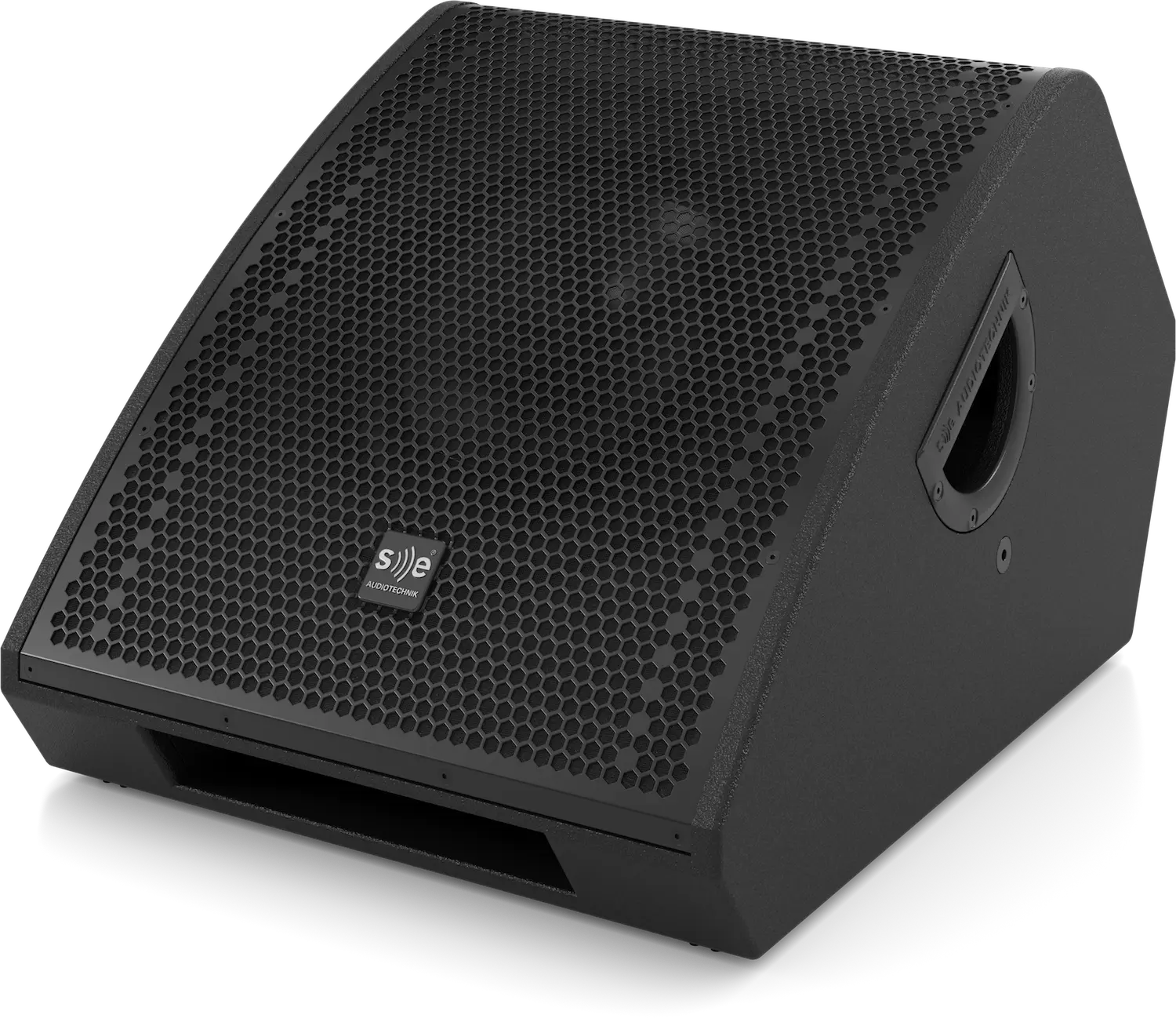

SMX 12
Technical details
| Model Name | SMX 12 |
|---|---|
| Type | Mid-sized passive 2-way coaxial monitor speaker |
| TECHNICAL INFORMATION | |
| ELECTRO-ACOUSTICAL DATA | |
| Frequency response (-3 dB)* | 125 Hz – 16 kHz |
| Frequency range (-6 dB)* | |
| Frequency range (-10 dB)* | 60 Hz – 20 kHz |
| Coverage angles (-6 dB) [H x V] | 80° x 80° |
| Nominal impedance | LF: 8 Ω HF: 16 Ω |
| Sensitivity* | 99 dB |
| Peak power | 1600 W |
| Continuous power** | 400 W |
| Maximum Peak SPL*** | 136 dB |
| System type | 2-way coaxial system |
| Acoustic crossover frequency | 1.3 kHz |
| Crossover type | LPF: Butterworth 2nd Order HPF: Butterworth 3rd Order |
| Transducers | Coaxial driver with: LF: 1 × 12" driver (3" voice coil) HF: 1" compression driver (1.7" voice coil) |
| Enclosure type | Vented box |
| Connectors | Input signal: Neutrik speakON® NL4 Link output: Neutrik speakON® NL4 |
| Wiring | Pins 1+ / 1- : driver |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] (incl. rigging) | 368 × 450 × 575 mm |
| Weight | 19 kg |
| Packaging dimensions [H x W x D] | 447 × 535 × 660 mm |
| Total weight | 23 kg |
| Cabinet | 15 mm plywood |
| Cabinet finishing | Black polyurea coating |
| Grille | Powder coated perforated steel |
| Hardware | 1 top and 2 side handles embedded in cabinet Rubber feet 2 × M10 for U-bracket mounting |
| Rigging | – |
| Splay angles | – |
| ACCESSORIES | |
| SMX 12UB | U-bracket |
| SMX 12TC | Transport cover |
| SPS20 | Pole bar |
| PS35 | M10 screw to 35mm pole socket adaptor |
| ANNOTATION | |
| * | Whole space, 1W / 1m, on axis |
| ** | According to EIA-426B Standard |
| *** | Max Peak SPL = Sensitivity + 10log10(Continuous Power) + 12 dB Crest Factor |
