M-Array

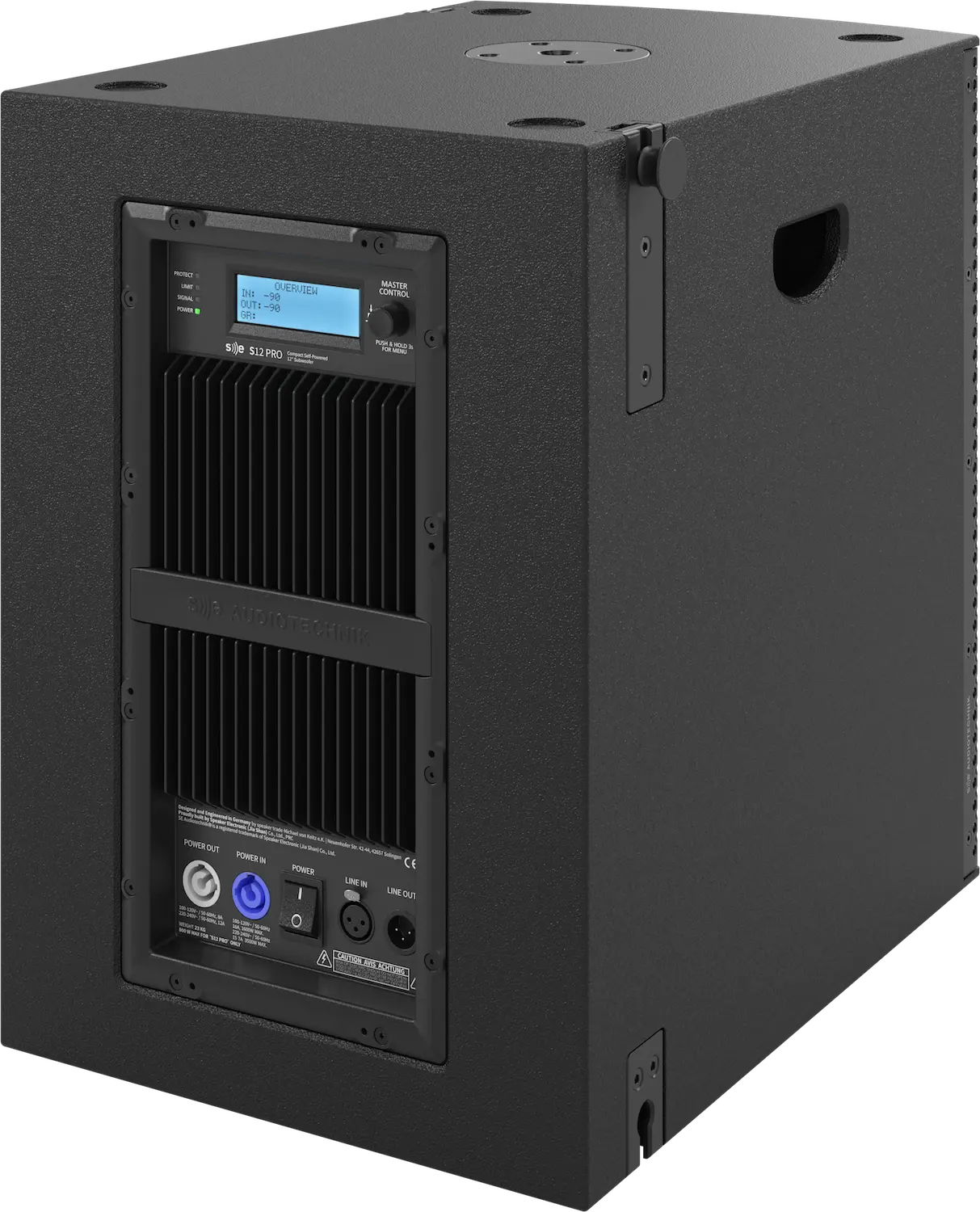

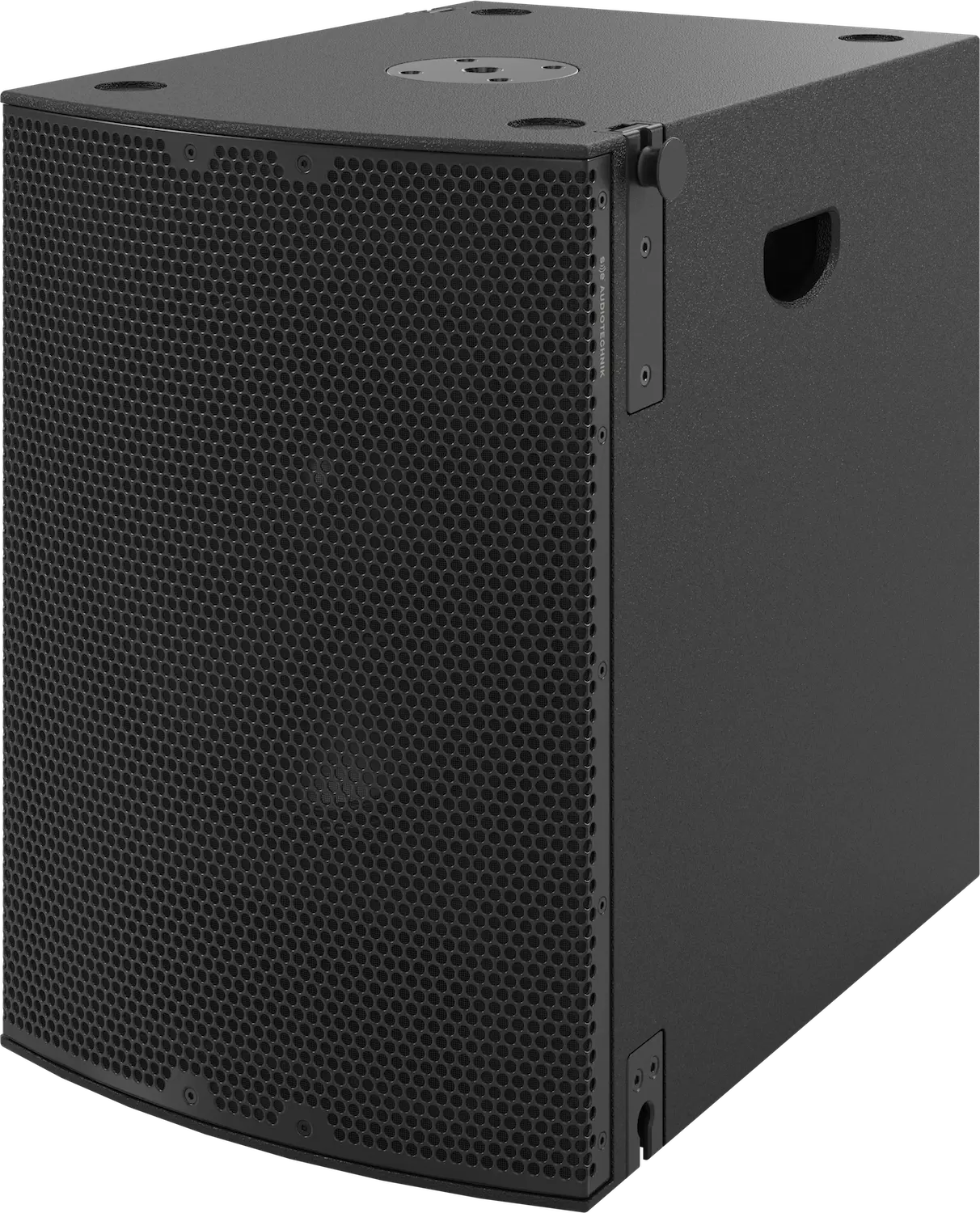

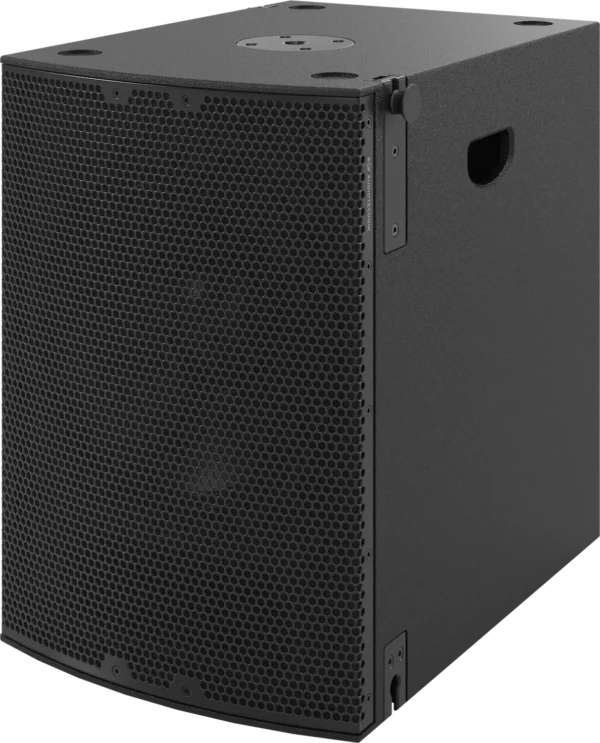

S12 PRO
Technical details
| ACOUSTICAL DATA | |
|---|---|
| Model Name | S12 PRO |
| Frequency range (-3 dB) | 42 Hz – 99 Hz* |
| Frequency range (-6 dB) | 40 Hz – 135 Hz* |
| Frequency range (-10 dB) | 36 Hz – 145 Hz* |
| Coverage angles (-6 dB) [H x V] | Omnidirectional |
| Maximum Peak SPL | 132 dB** |
| System type | 1-way active system |
| Crossover frequency | - |
| Transducers | 1 × 12" driver (3" voice coil) |
| Enclosure type | Vented box |
| AMPLIFICATION | |
| Type | Single channel, class-D with SMPS |
| Output power | 800 W |
| Protection | Short circuit, overheating, overcurrent |
| Connectors | Input signal: balanced XLR 3-pin female; Link output: balanced XLR 3-pin male; Power input: powerCON® 20A; Power link output: powerCON® 20A |
| Wiring | Pin N: Neutral; Pin L: Conductor; Pin E: Ground |
| Input sensitivity | 0 dBu |
| DSP | 48 kHz/24 bit with extended dynamics, processing latency: 1.1 ms |
| Processing | Factory and user presets, directivity control, EQ, delay, phase inversion |

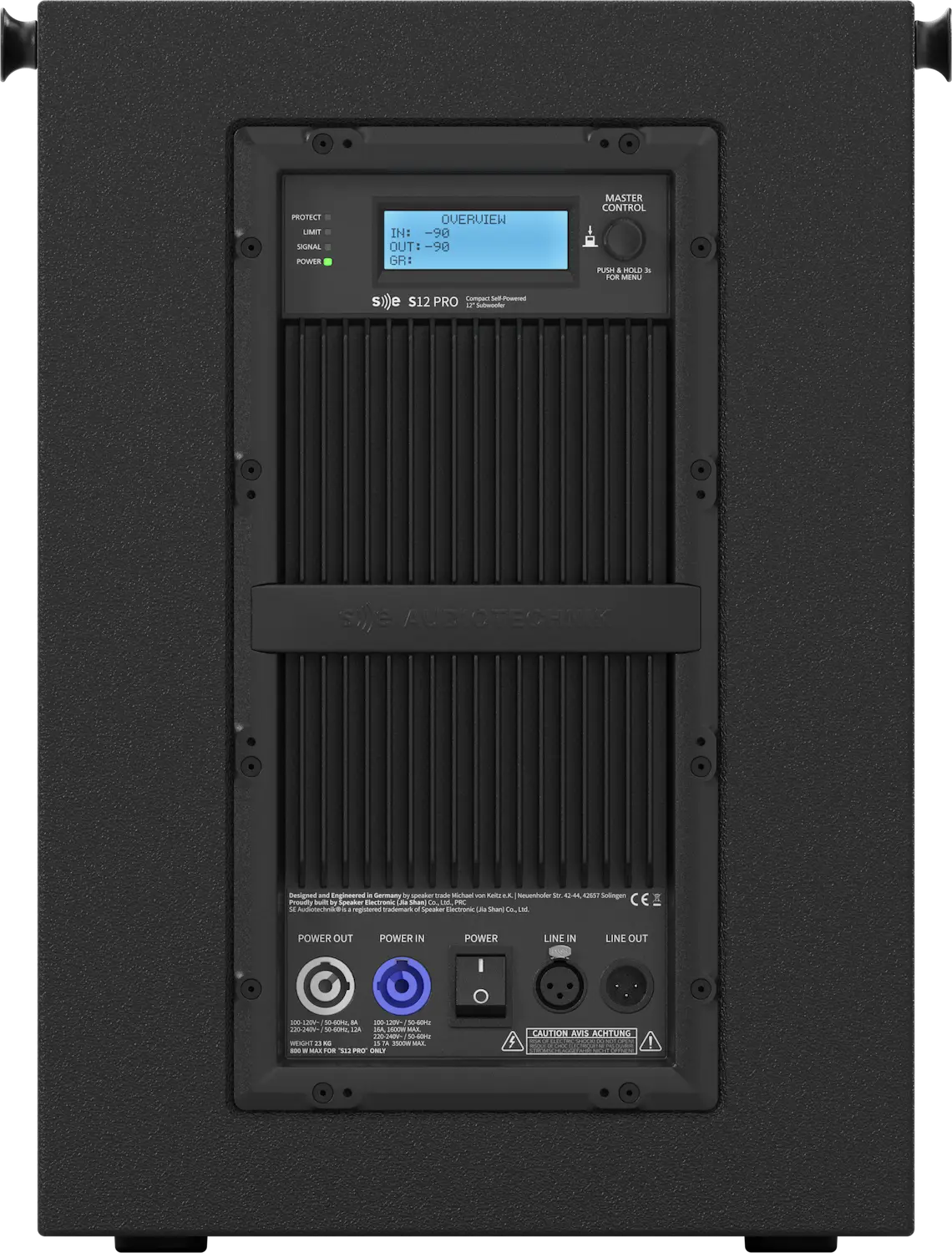

| User controls | Power: ON/OFF switch; DSP: display with digital encoder |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] | 507 × 385 × 495 mm |
| Net weight | 23 kg |
| Packaging dimensions [H x W x D] | 598 × 435 × 575 mm |
| Total weight | 24.8 kg |
| Cabinet | 15 mm plywood |
| Cabinet finishing | Black or white polyurea coating |

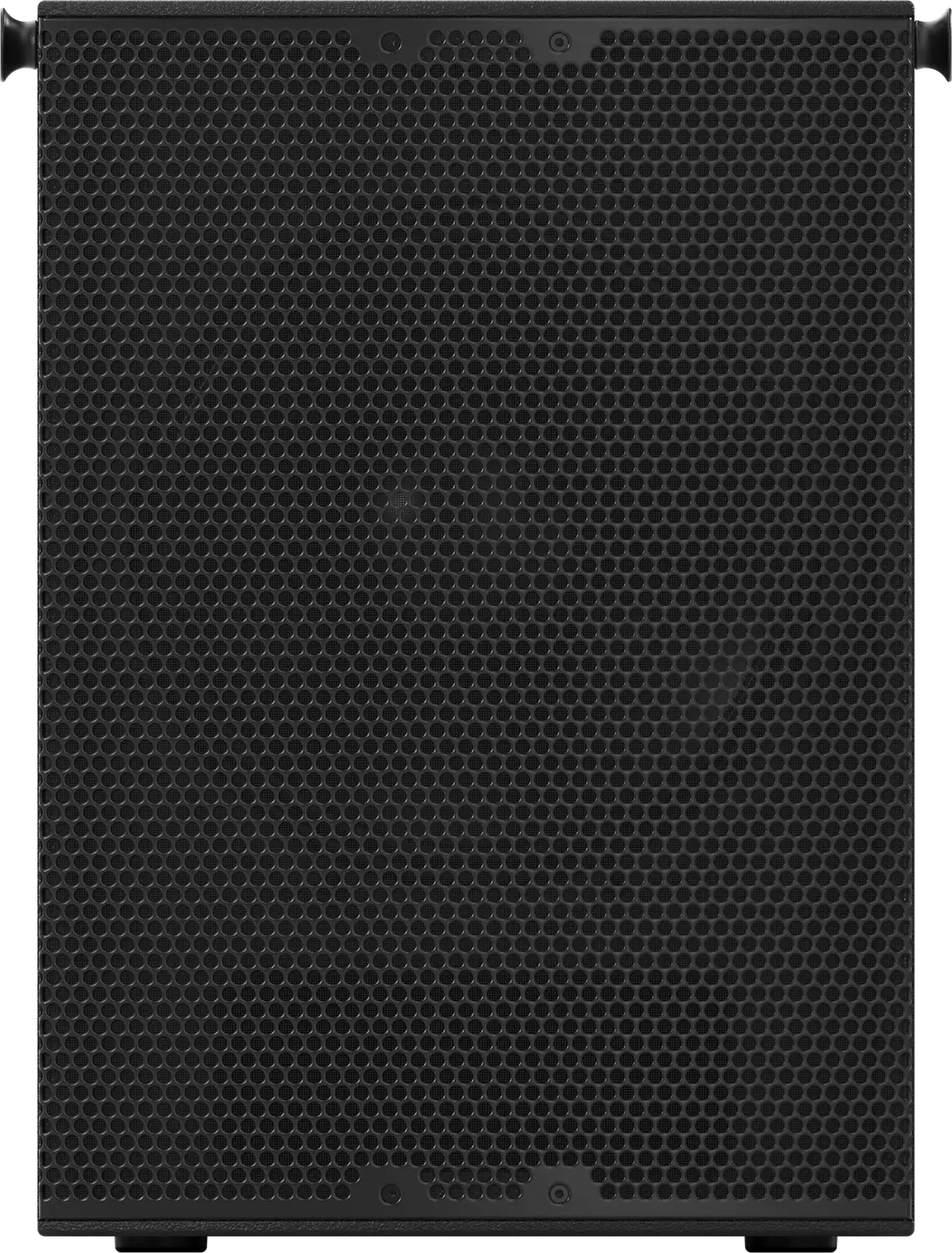

| Grille | Powder coated perforated steel |
| Hardware | Two side handles embedded in cabinet, 4 rubber feet and top slots for stacking, M20 pole thread |
| Stacking | Two-point SE Audiotechnik® stacking system |
| Splay angles | - |
| ACCESSORIES | |
| M-F3A S12 PRO SFi | Stacking frame for M-F3A PRO |
| SPS20 | Pole bar for S12 PRO |
| M-F3A S12 PRO FC | Flight case for S12 PRO |
| P801DL RC | Amplifier rain cover for S12 PRO |
| M-F3A S12 PRO TK 32 | Transport kart (6 units) for S12 PRO |
| ANNOTATION | |
| * | Measured with MF3AP preset |
| ** | Measured with 12 dB Crest factor Pink Noise, half space |
