IC-Line

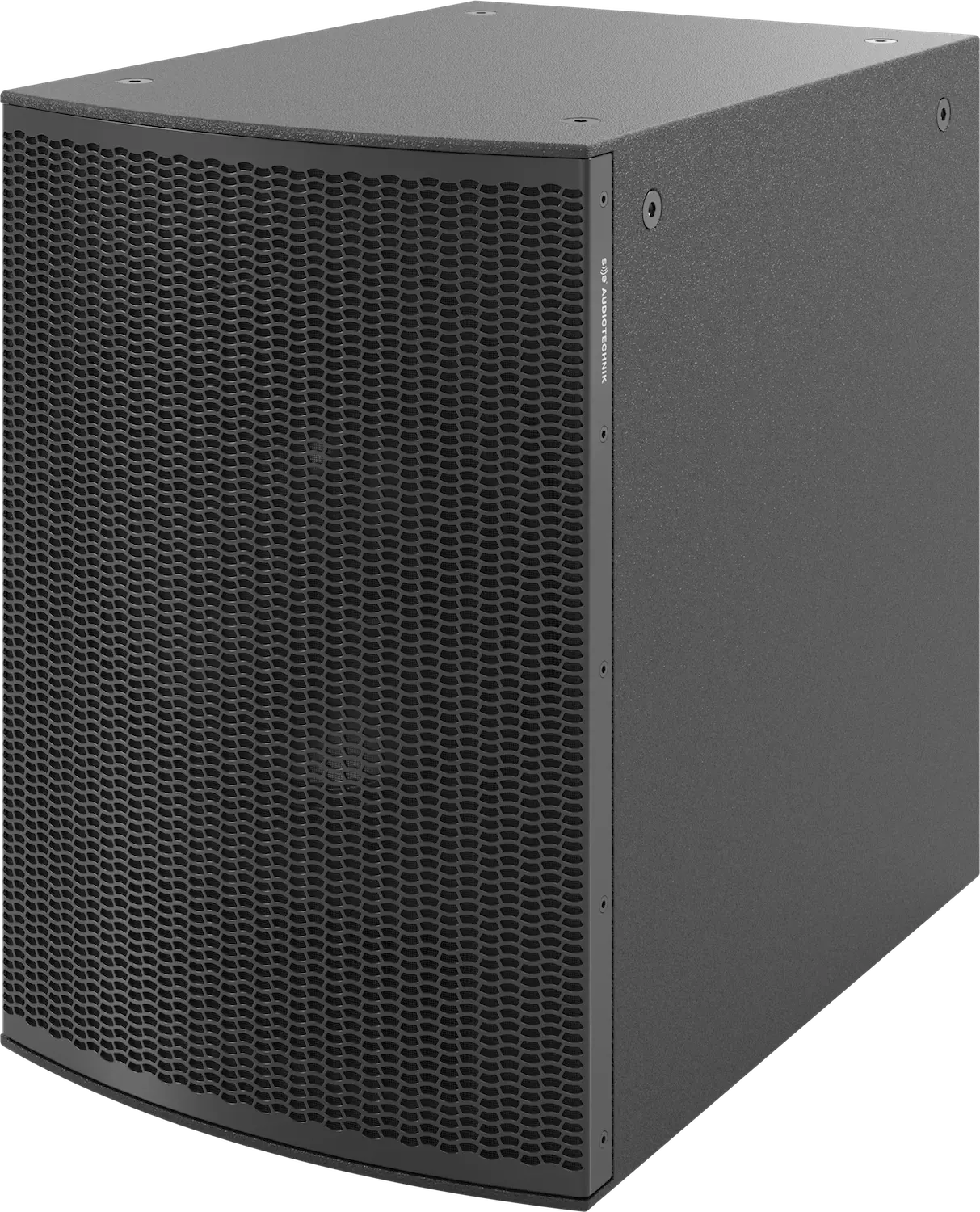

S 112i PRO
Technical details
| Model Name | S 112i PRO |
|---|---|
| Type | 12" Active Subwoofer |
| ACOUSTICAL DATA | |
| Frequency range (-3 dB)*|*** | 42 Hz – 99 Hz | 42 Hz – 250 Hz |
| Frequency range (-6 dB)*|*** | 42 Hz – 220 Hz |
| Frequency range (-10 dB)*|*** | 36 Hz – 145 Hz | 36 Hz – 300 Hz |
| Coverage angles (-6 dB) [H x V] | Omnidirectional |
| Maximum Peak SPL** | 132 dB |
| System type | 1-way active system |
| Crossover frequency | – |
| Transducers | 1 × 12" driver (3" voice coil) |
| Enclosure type | Vented box |
| AMPLIFICATION | |
| Type | Single channel, Class-D with SMPS |
| Output power | 800 W |
| Protection | Short circuit, overheating, overcurrent |

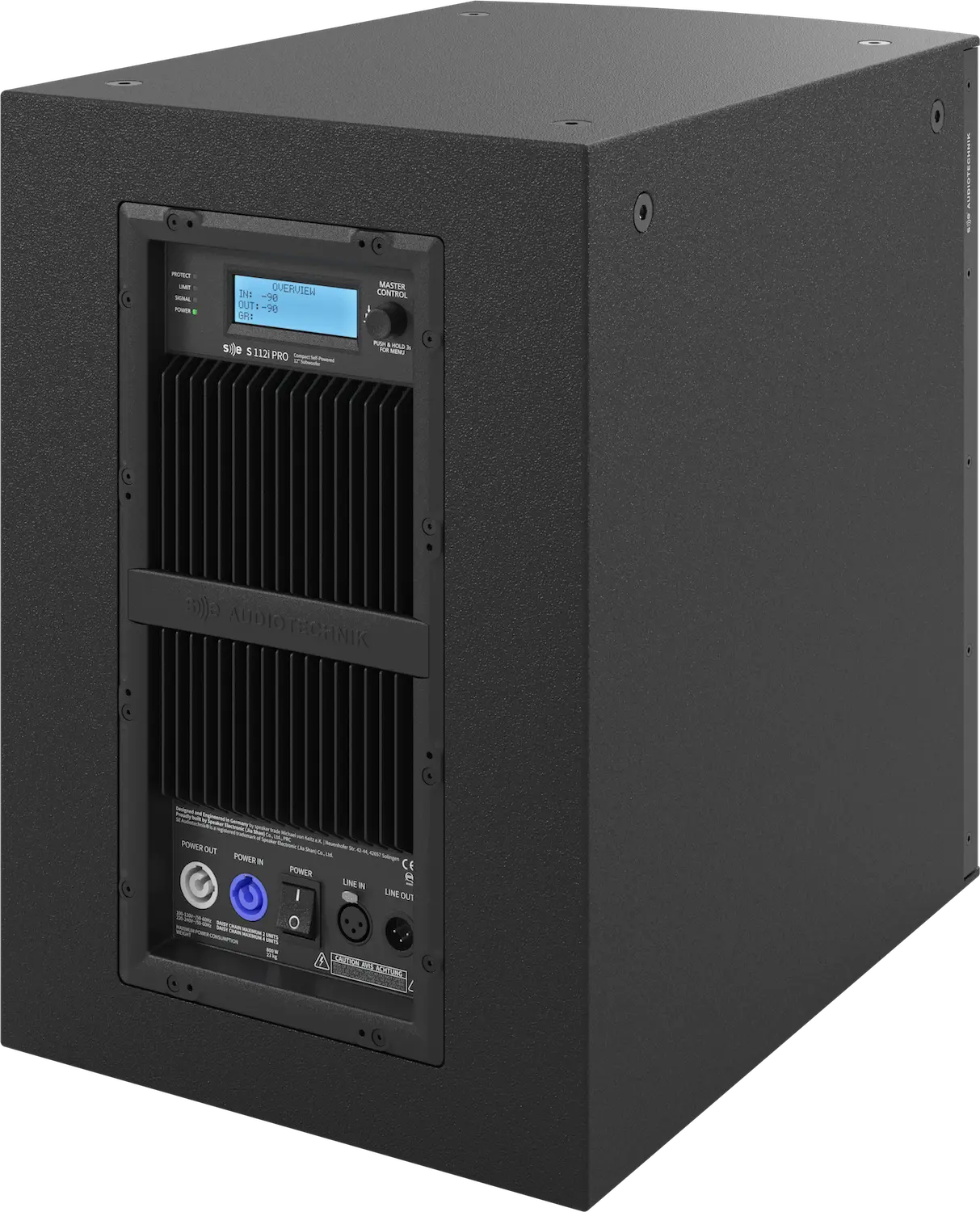

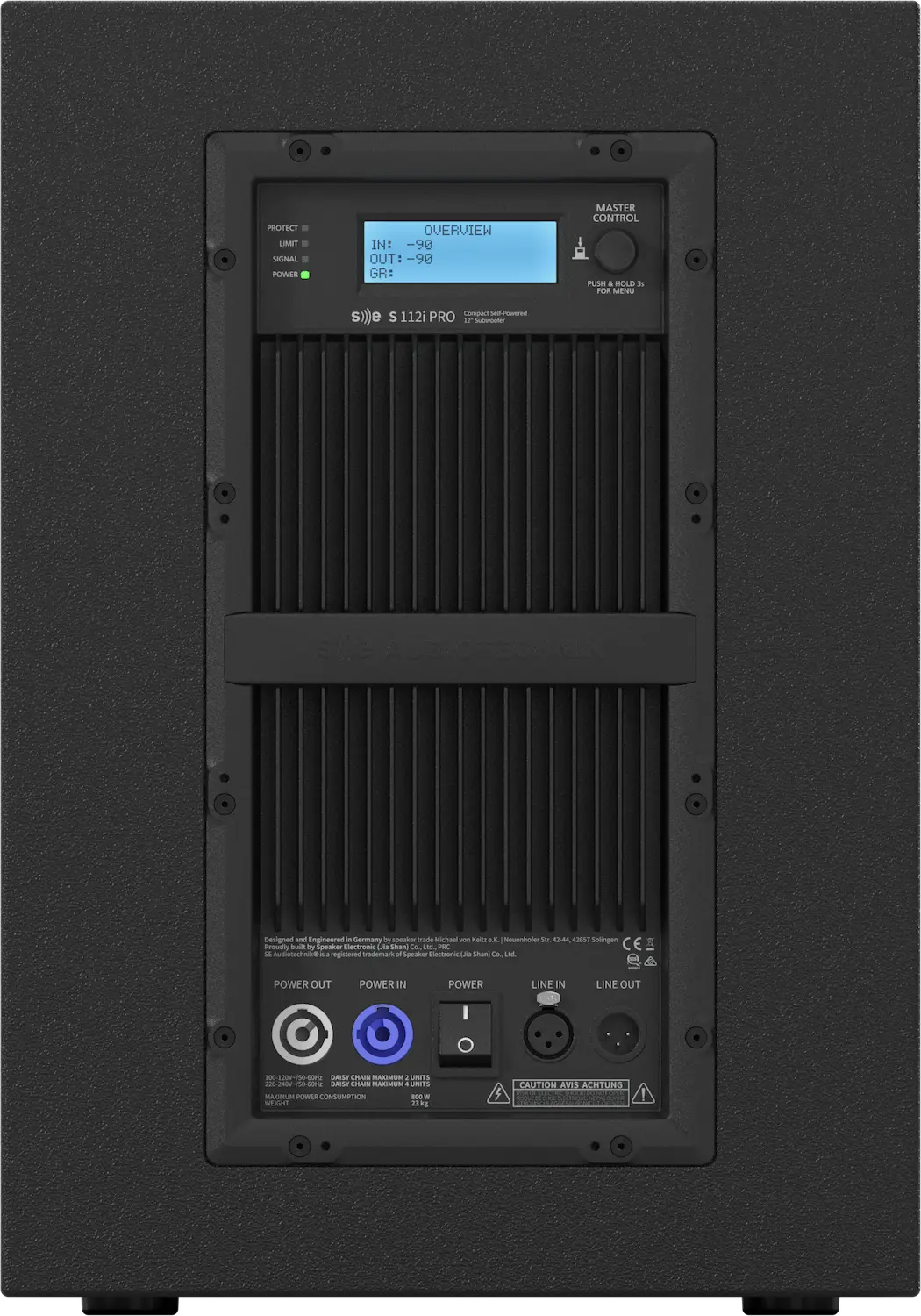

| Connectors | Input signal: balanced XLR 3-pin female; Link output: balanced XLR 3-pin male; Power input: powerCON® 20A; Power link output: powerCON® 20A |
| Wiring | Pin N: Neutral; Pin L: Conductor; Pin E: Ground |
| Input sensitivity | 0 dBu |
| DSP | 48 kHz/24 bit with extended dynamics; Processing latency: 1.1 ms |
| Processing | Factory and user presets, directivity control, EQ, delay, phase inversion, input sensitivity |
| User controls | Power: ON/OFF switch; DSP: display with digital encoder |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] (incl. rigging) | 507 × 355 × 495 mm |
| Net weight | 23 kg |
| Packaging dimensions [H x W x D] | 593 × 435 × 580 mm |
| Total weight | 25.2 kg |
| Cabinet | 15 mm plywood |
| Cabinet finishing | Black or white polyurea coating |

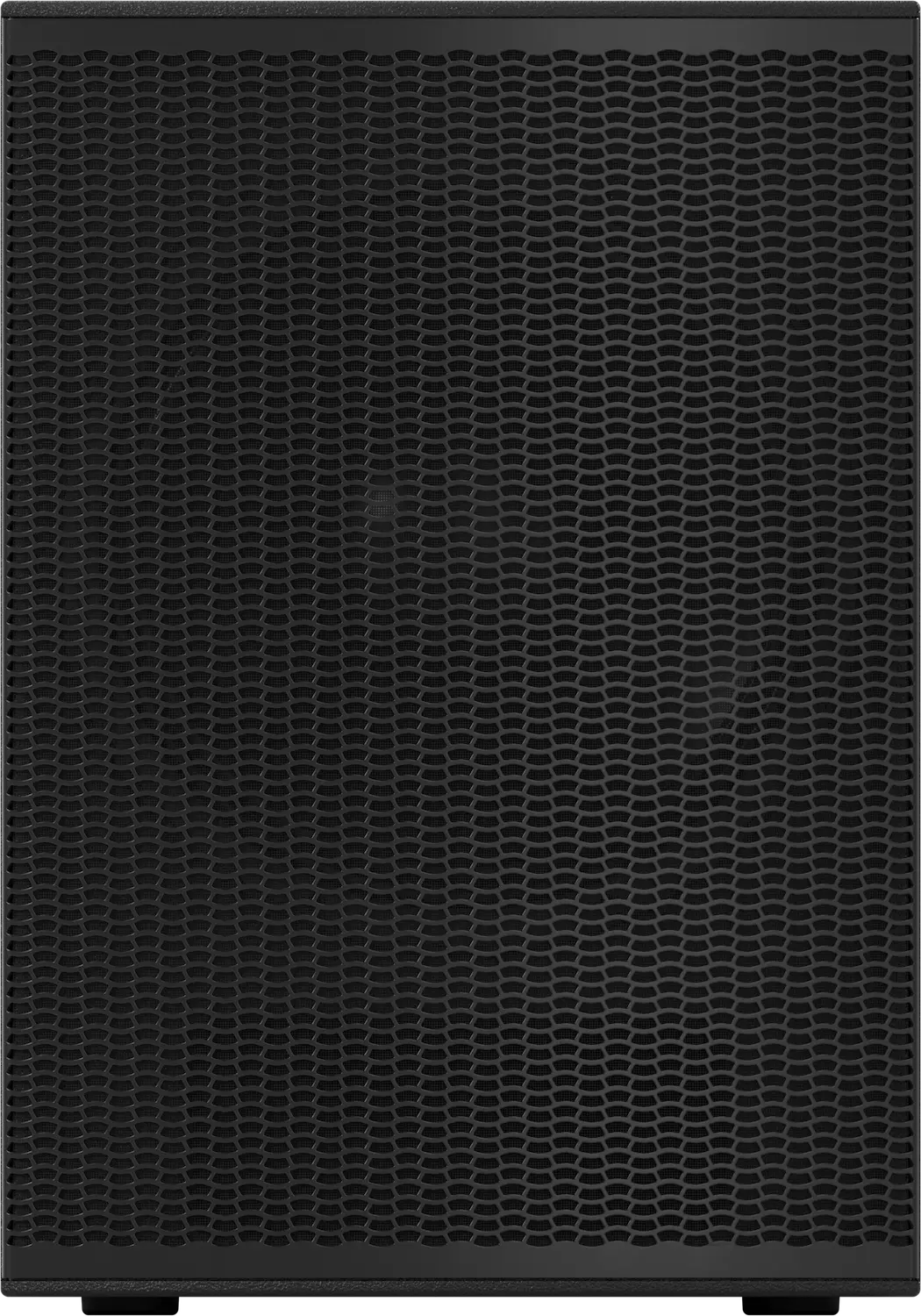

| Grille | Powder coated perforated steel |
| Hardware | 4 rubber feet; 2x M10 thread on each side and 4 on top |
| Rigging | – |
| Splay angles | – |
| ACCESSORIES | |
| ANNOTATION | |
| * | Measured with dedicated preset |
| ** | Measured with 12 dB Crest factor Pink Noise, half space |
| *** | Measured with GENERAL preset with 6th-order Butterworth low-pass filter applied at 240 Hz |
