Amps & Controller
MA2800
Available in:East Asia, South Asia, Southeast Asia
Technical details
| Model Name | MA 2800 |
|---|---|
| Type | 2-channel power amplifier |
| Output Power (1 kHz, <0.05% THD) | 8 Ω: 2 × 800 W 4 Ω: 2 × 1200 W 2 Ω: 2 × 1400 W 8 Ω bridged: 2000 W 4 Ω bridged: 2400 W |
| Output Power (16 Ω bridged) | — |
| Frequency Response (Power Bandwidth ±0.1dB) | 20 Hz – 20 kHz |
| Phase Response (@1W 20Hz–20kHz) | +15° |
| THD+N (1 kHz, 20 Hz–20 kHz) | ≤ 0.05% |
| Intermodulation Distortion (SMPTE) | ≤ 0.05% |
| Damping Factor (20 Hz–500 Hz @ 8Ω) | 550:1 |
| Crosstalk (20 Hz–20 kHz) | >75 dB |
| Gain (Selectable) | 26 / 29 / 32 dB |
| Input Sensitivity | 0.775 / 1.0 / 1.55 V |
| S/N Ratio | 106 dB |

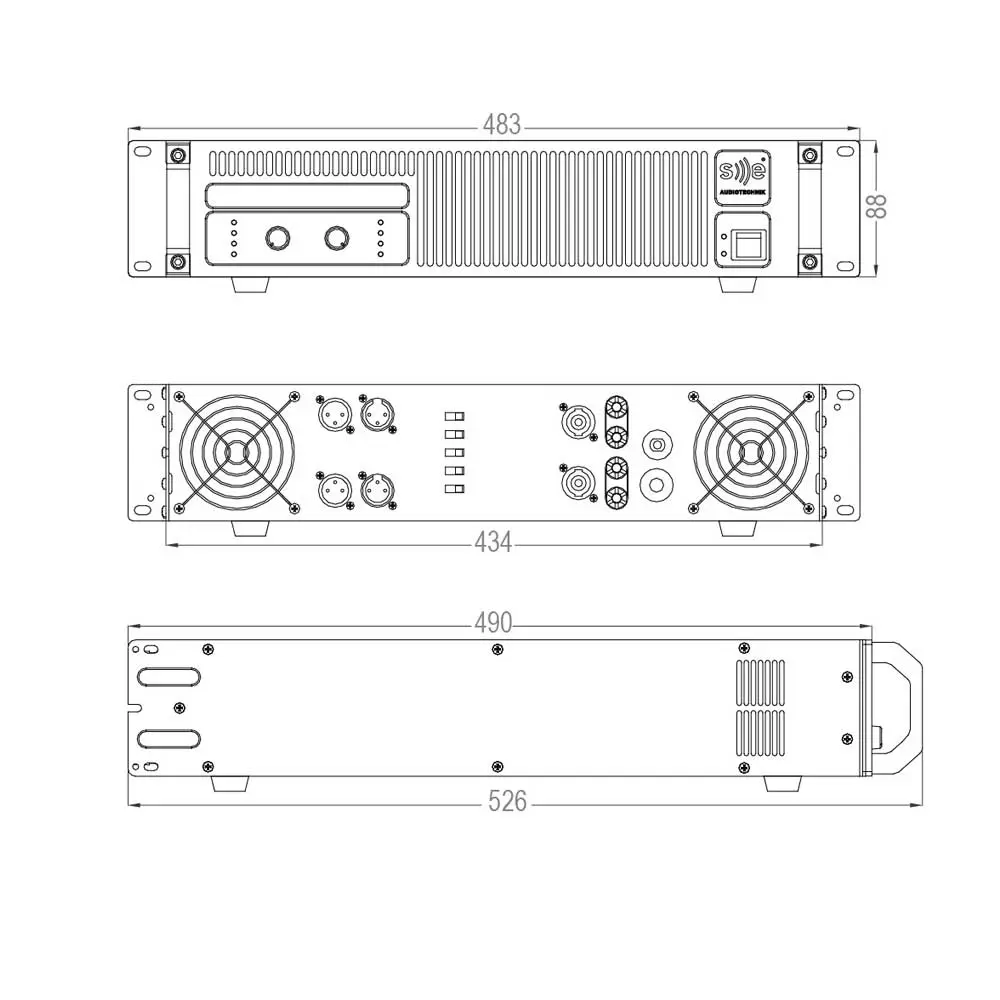

| Product dimensions (W x H x D) | 483 × 88 × 490 mm |
| Net weight | 25 kg |
Packaging:
Cardboard outer packaging: 83.58% (1400 g) | Foam inner padding: 14.33% (240 g) | Plastic protective sleeve: 2.09% (35 g)
The following overview contains information on the regulated substances used in the product and on compliance with the applicable limit values.
"Lead (Pb): Used in printed circuit boards (printed circuit board | electronic components on the PCB | internal connecting wires | copper traces) (permitted exemption).
"
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
Environmental Protection Use Period: 15 year(s)
