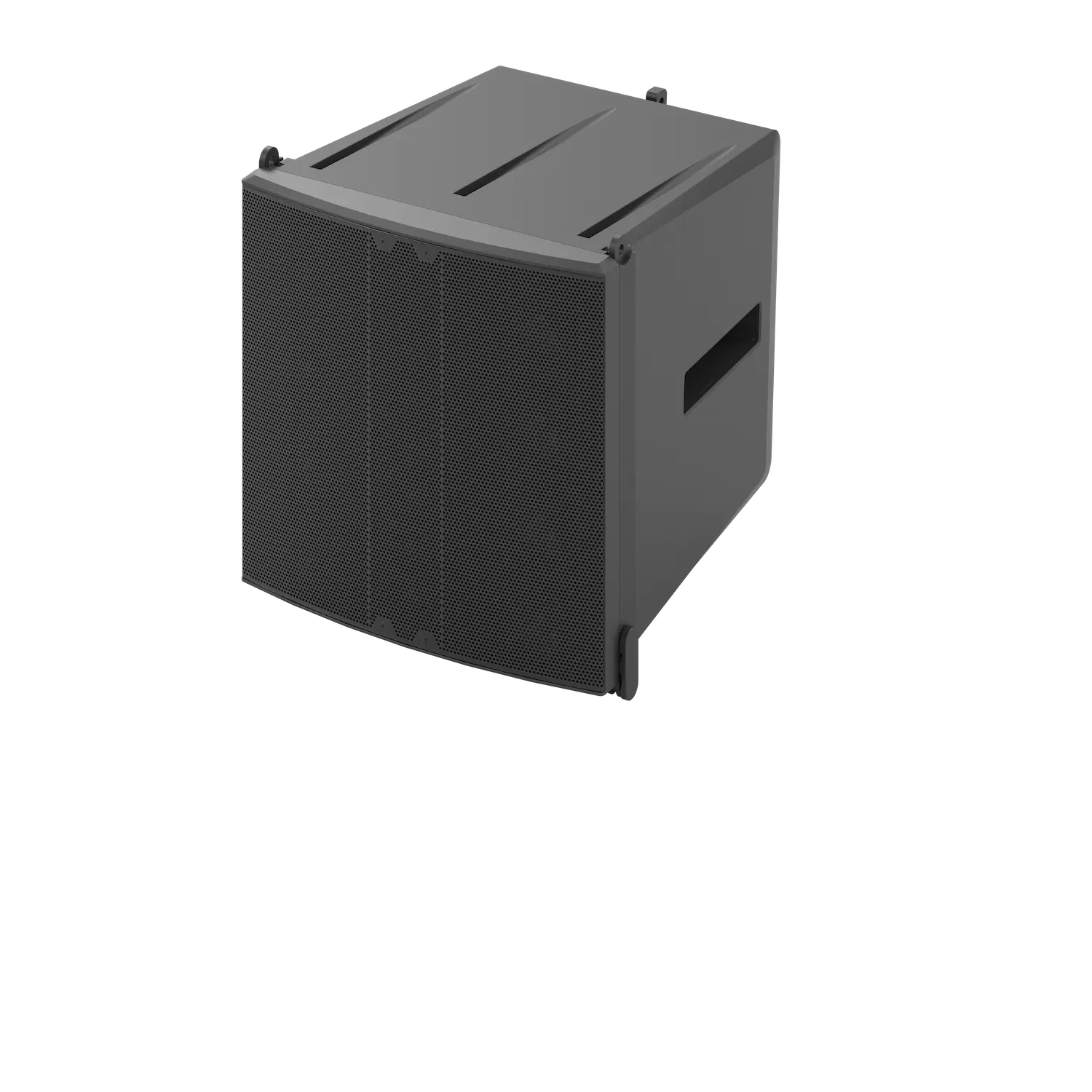

M3 MAX WP
M3 MAX WP brings SE’s signature hornless sound to permanent outdoor systems and open‑air shows. Built for reliable, all‑weather operation and effortless integration, it delivers clear, natural coverage in a compact, lightweight format that’s easy to deploy and scale. With an installer‑friendly rigging concept and dedicated amplifier presets, M3 MAX WP is a compelling alternative to conventional horn‑loaded arrays for cultural tourism, public spaces, and live events.
- Compact, weatherised passive line‑array module for permanent outdoor use (IP 56 rating)
- Hornless M‑Array clarity with smooth, uniform coverage across wide areas
- Passive system design with SE amplifier presets for consistent voicing and protection
- Optimised three‑point rigging for fast, safe arraying and precise coverage control
- Black, white and customizable colours available
Developed for today’s outdoor projects, M3 MAX WP combines true weather‑ready construction with the natural, articulate voicing of SE’s hornless M‑Array approach. Its rugged, injection‑moulded enclosure forms a stable, sealed shell while internal bracing keeps resonances under control. A multi‑layer grille system and water‑smart venting protect the acoustics from rain, spray, dust, and sun exposure, maintaining consistent performance season after season with minimal visual impact.
Beyond resilience, M3 MAX WP is engineered for coverage and efficiency. The vented system and carefully tuned array topology deliver balanced warmth, extended reach, and high intelligibility across wide audience areas. Arrays scale predictably while preserving voicing, making it straightforward to meet throw and SPL targets in larger spaces.

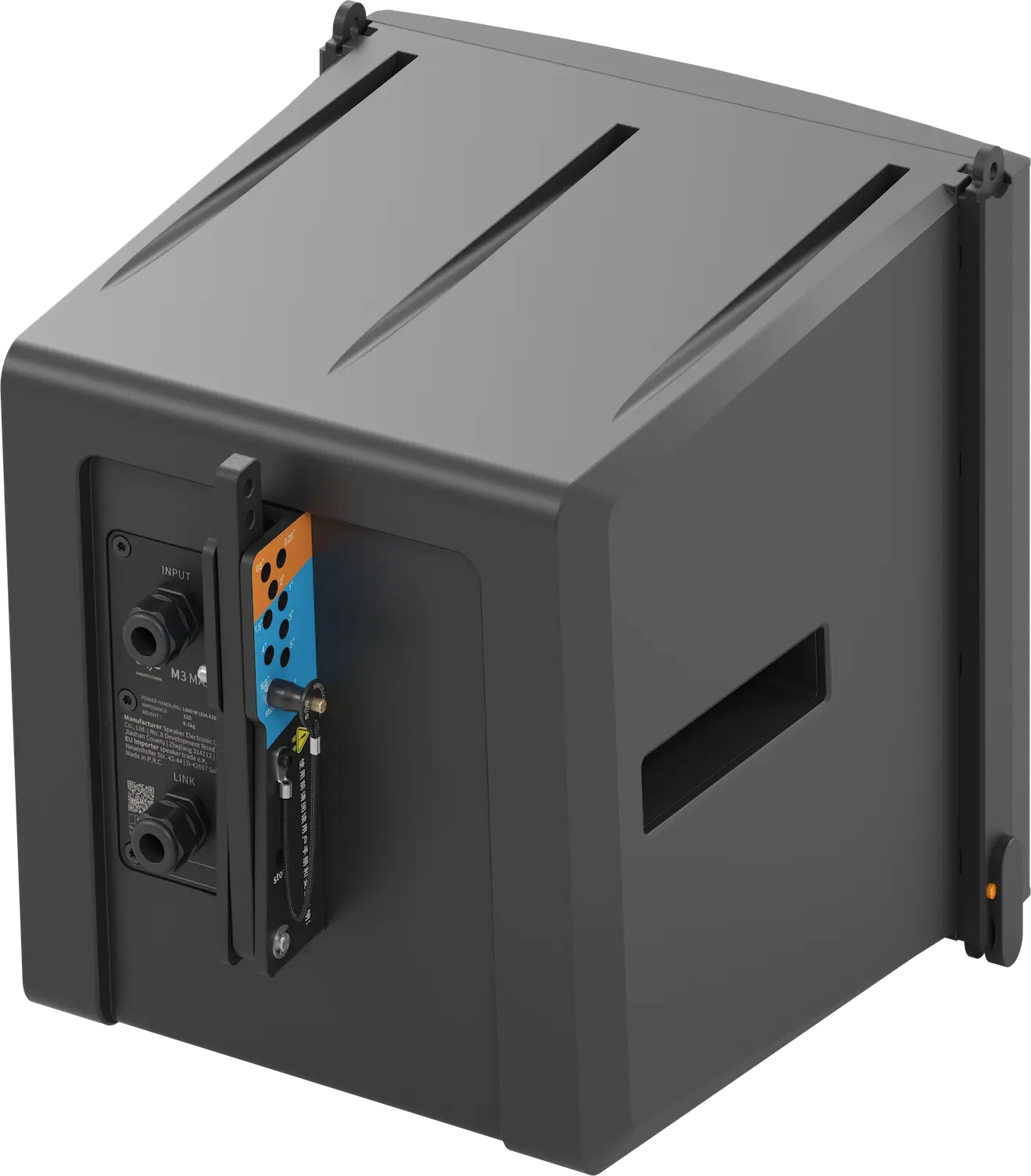

As a passive module, it pairs with SE rack amplifiers via dedicated presets for protection and tonal consistency, streamlining system design and reducing complexity. Connectivity is handled through a sealed, quick‑connect interface for neat, reliable wiring, and the optimised three‑point rigging enables fast, safe assembly with precise splay control for smooth vertical coverage. Standard finishes blend into themed environments, with accessories supporting flown arrays and architectural mounting.
Technical details
| Model Name | M3 MAX WP |
|---|---|
| ACOUSTICAL DATA | |
| Frequency range (-3 dB) | 137 Hz—19 kHz* |
| Frequency range (-6 dB) | 120 Hz—20 kHz* |
| Frequency range (-10 dB) | 104 Hz—20 kHz* |
| Coverage angles (-6 dB) [H x V] | 120° x 16° |
| Nominal impedance | 32 Ω |
| Sensitivity | 98 dB* |
| Peak power | 2400 W |
| Continuous power | 600 W** |
| Maximum Peak SPL | 135 dB*** |
| System type | 2-way passive |
| Crossover frequency | 1.9 kHz |

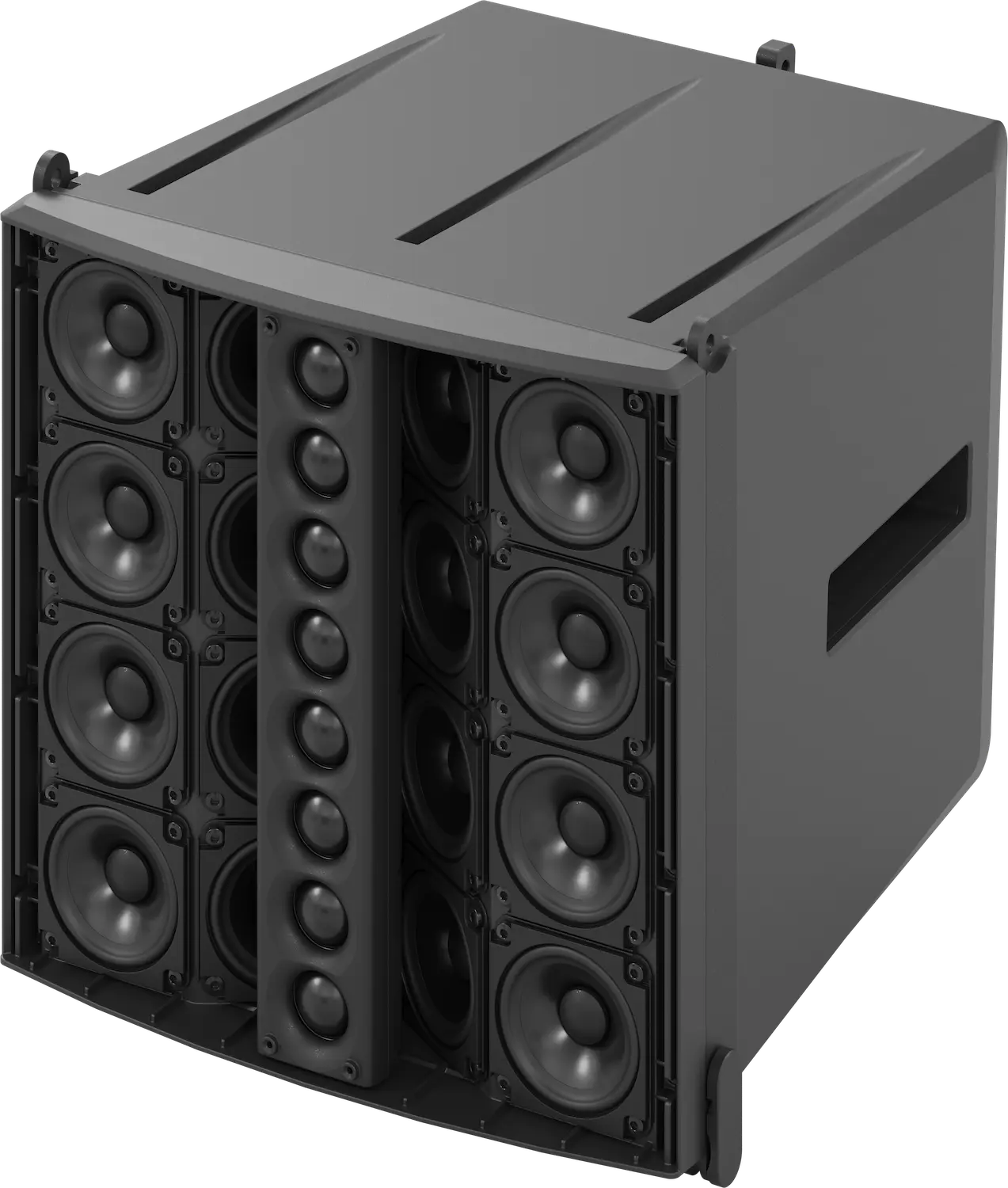

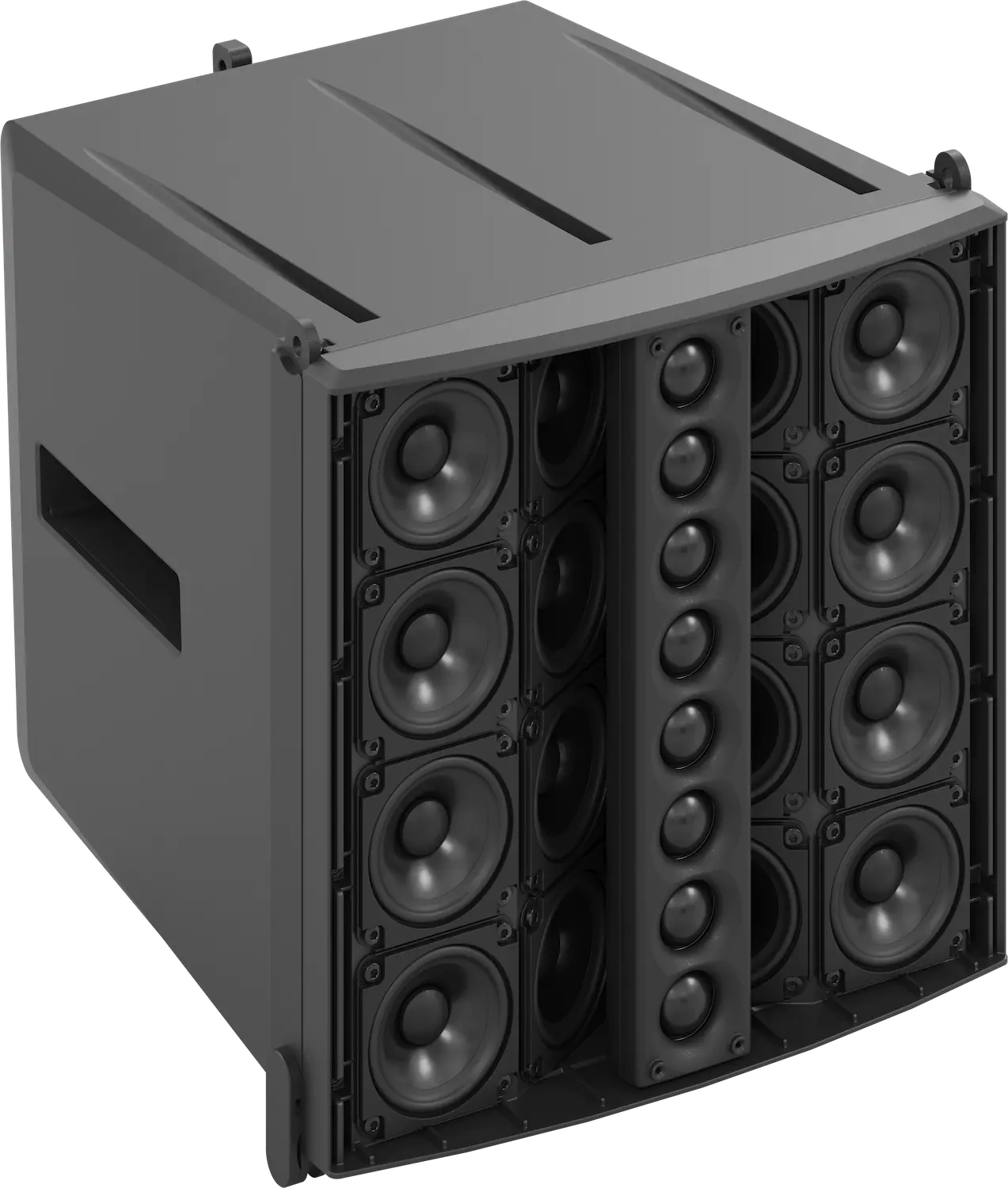

| Transducers | MF: 16x 2.8" drivers (0.8" voice coil), HF: 8 x 1" dome tweeters (1" voice coil) |
| Enclosure type | Vented box |

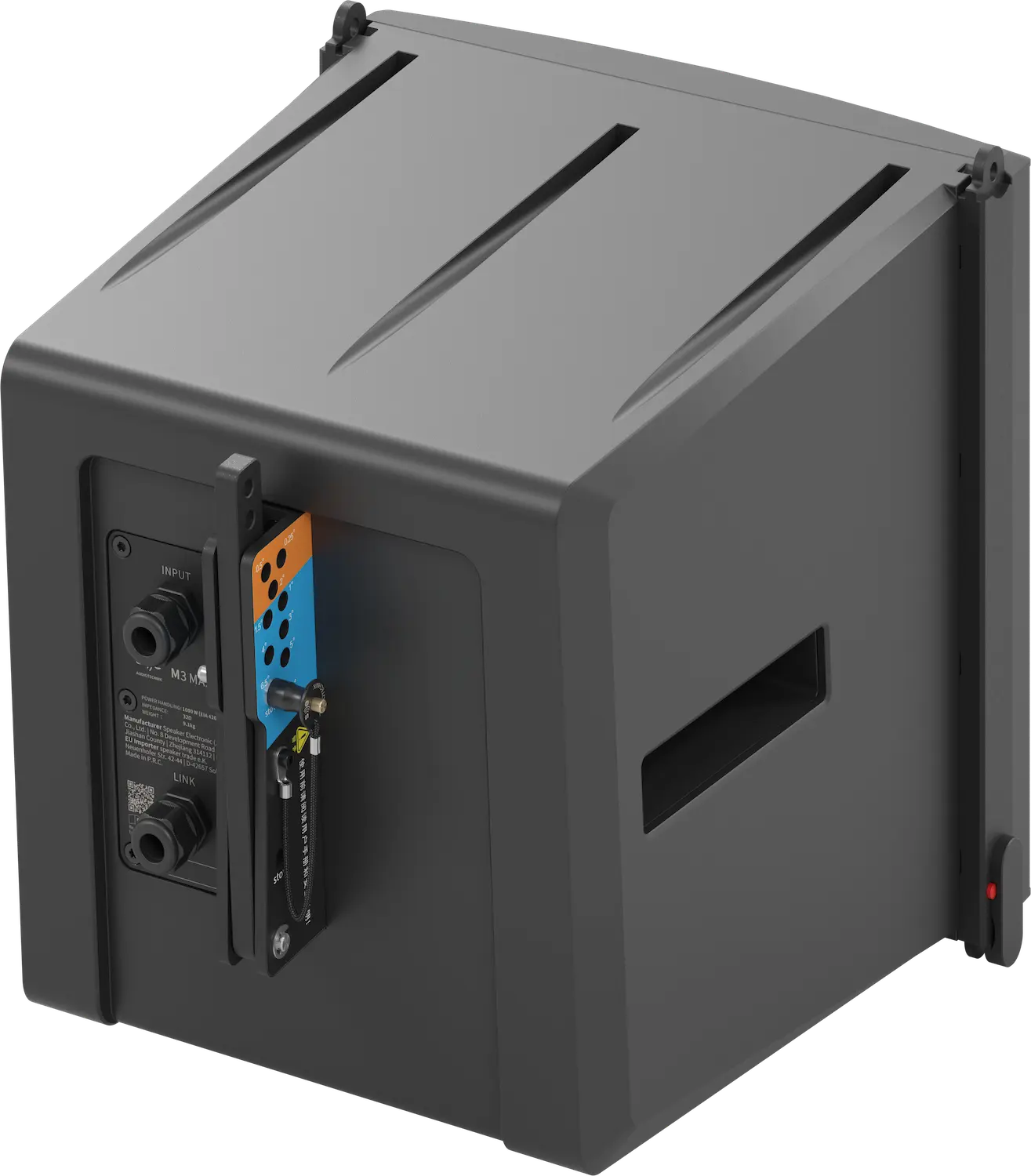

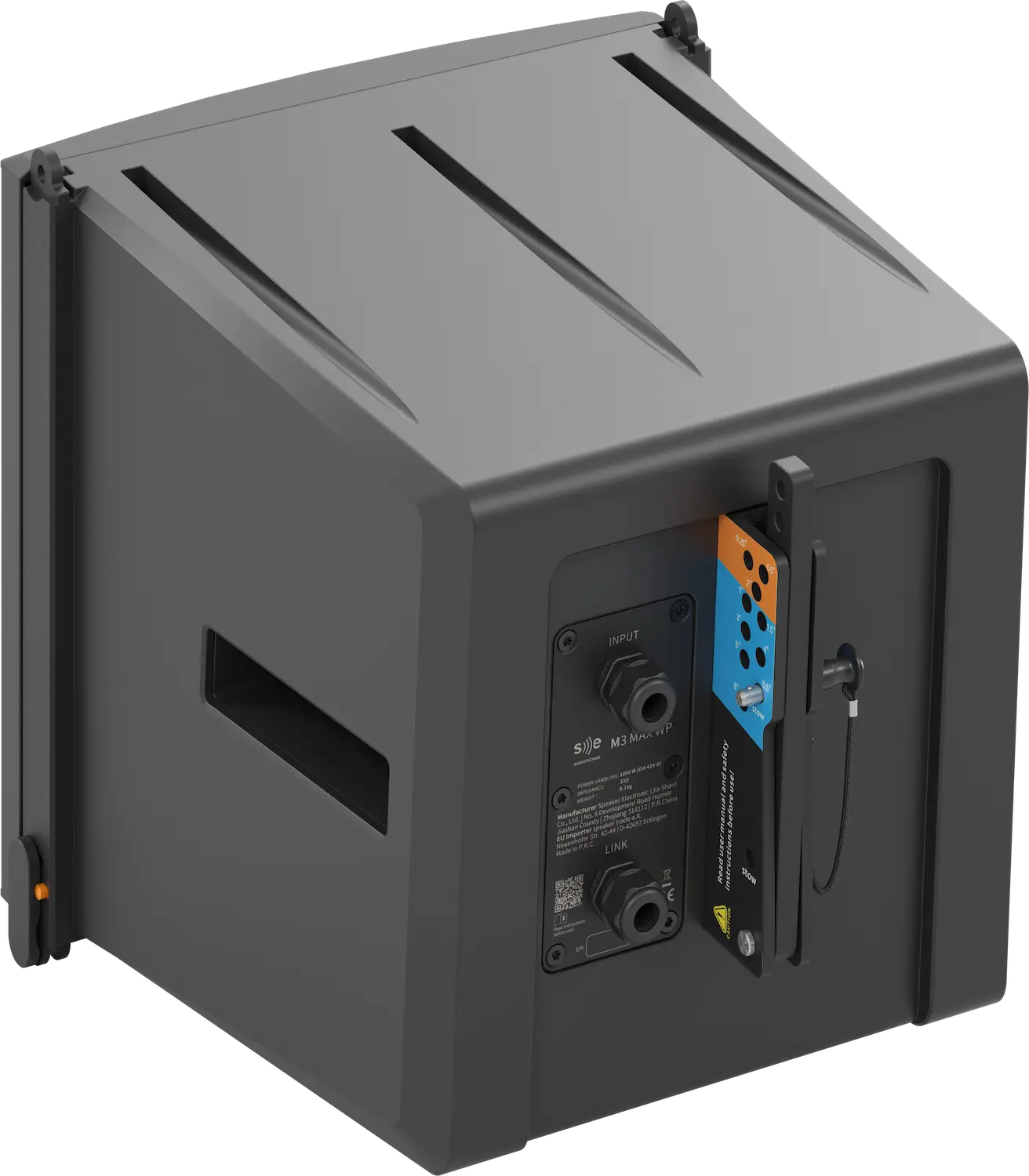

| Connectors | Input signal: PG11, wire Diameter Range: 5-10mm |
| Wiring | PIN1: Positive Terminal (+), PIN2: Negative Terminal (-) |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] (Including rigging) | 329 x 326 x 384 mm |
| Net weight | 9.1 kg |
| Packaging dimensions [H x W x D] | 485 x 415 x 452 mm |
| Total weight | 11.2 kg |
| Cabinet | High-strength weather-resistant polymer resins |
| Cabinet finishing | Black or white painting (custom color options available) |

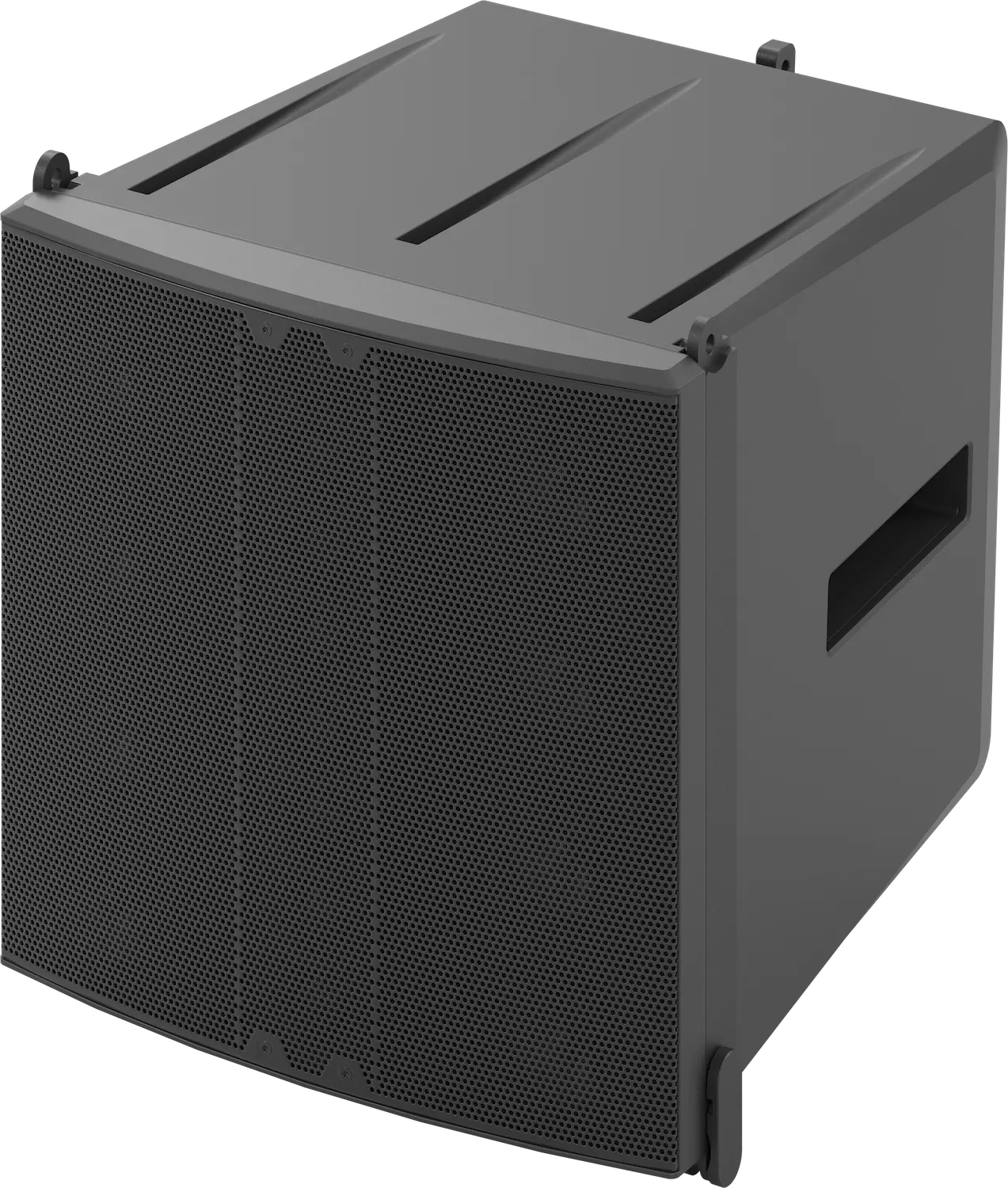

| Grille | Perforated steel with acoustic waterproof and dust-proof fabric |

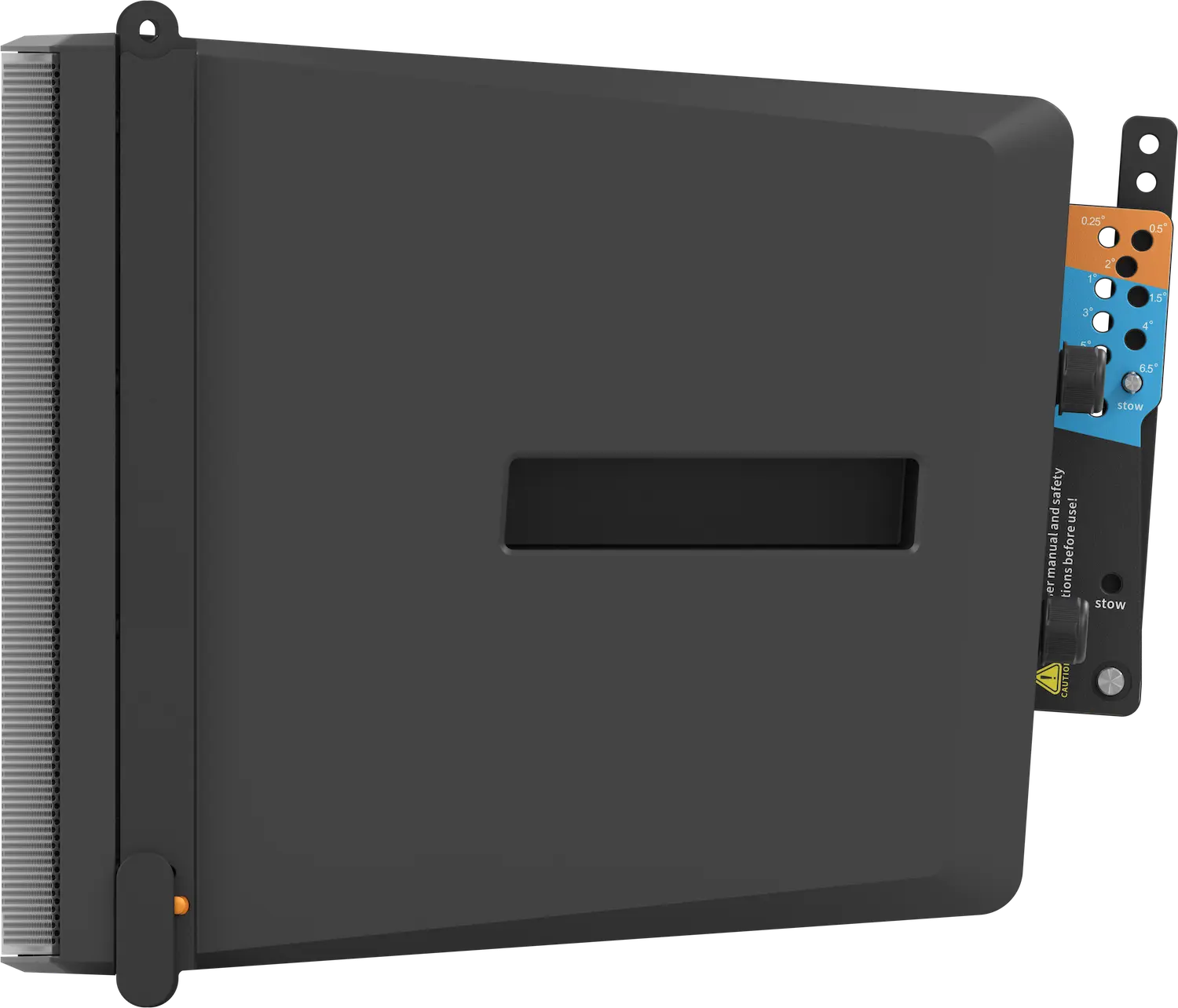

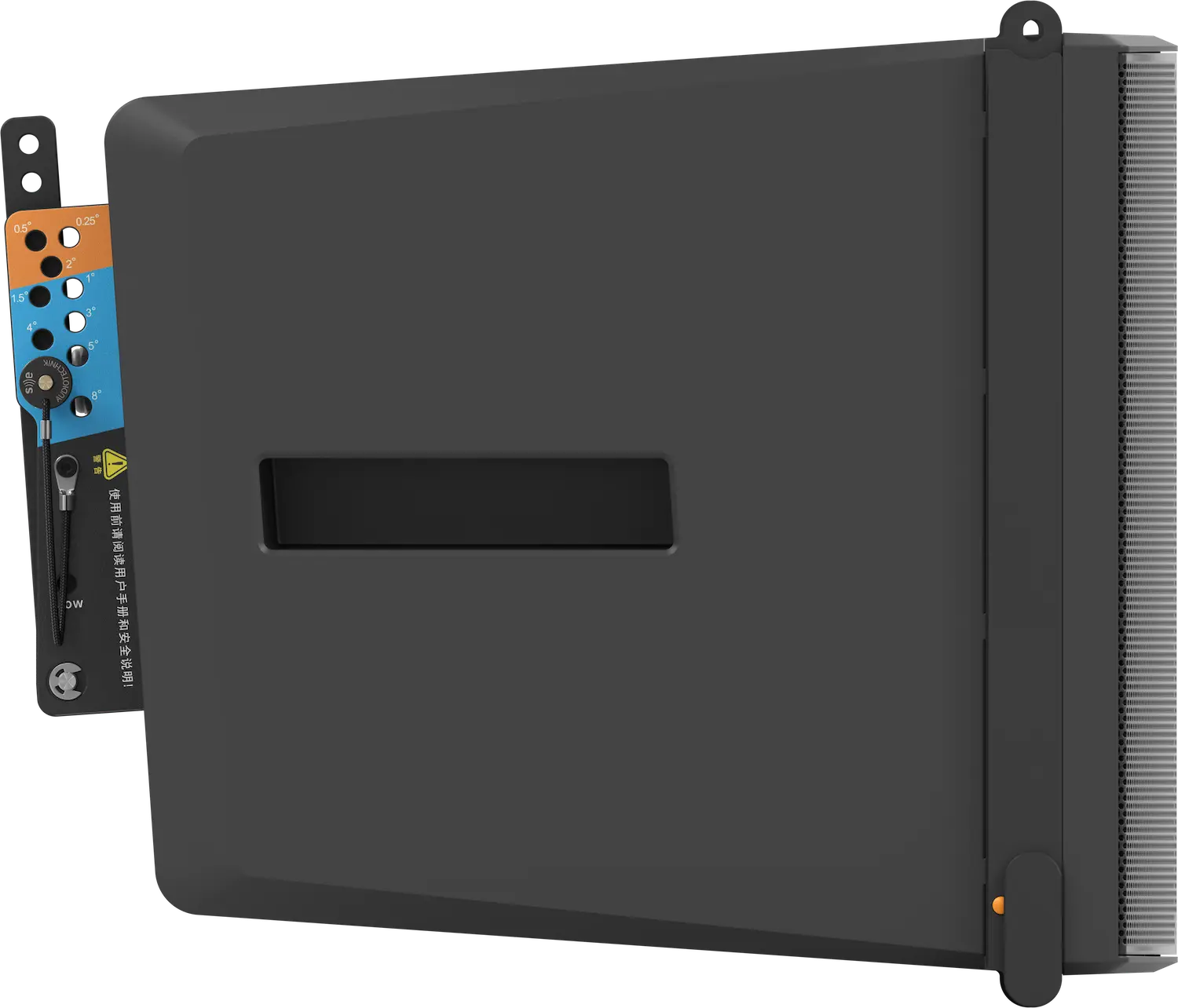

| Rigging | Three-point rigging system, 3 x SE AUDIOTECHNIK 6 mm concealed self-locking pins |
| Splay angles | 0.25º, 0.5º,1º,1.5º, 2º, 3º, 4º, 5º,6.5º, 8º |
| ACCESSORIES | |
| M-FTA MAX BF | Bumper frame |
| M-FTA MAX BF Slim | Bumper frame |
| M-FXA WB | Wall Mounting Bracket |
| ANNOTATION | |
| * | Whole space, 1W / 1m, on axis, with dedicated IA 1202D preset |
| ** | According to EIA-426B Standard (based on RMS Voltage) |
| *** | SPL/1m, whole space, pink noise, 12dB Crest Factor, +10dBu input level |
