M-FTA MAX
Technical details
| Model Name | M-FTA MAX |
|---|---|
| ACOUSTICAL DATA | |
| Frequency range (-3 dB) | 135 Hz – 19 kHz* |
| Frequency range (-6 dB) | 108 Hz – 20 kHz* |
| Frequency range (-10 dB) | 95 Hz – 20 kHz* |
| Coverage angles (-6 dB) [H x V] | 120° × 16°** |
| Maximum Peak SPL | 134 dB*** |
| Continuous Maximum SPL | 122 dB*** |
| System type | 2-way active |
| Crossover frequency | 1.9 kHz |

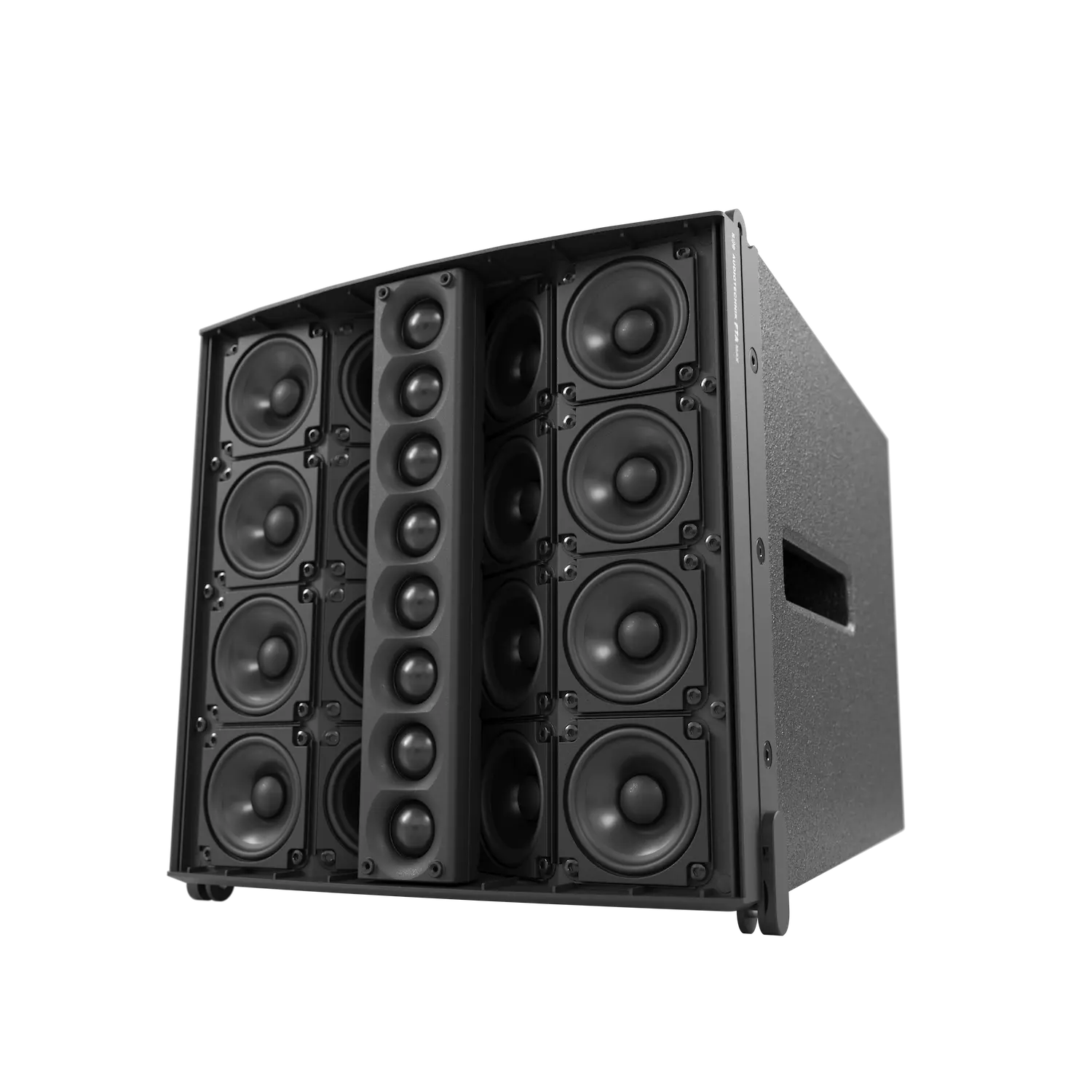

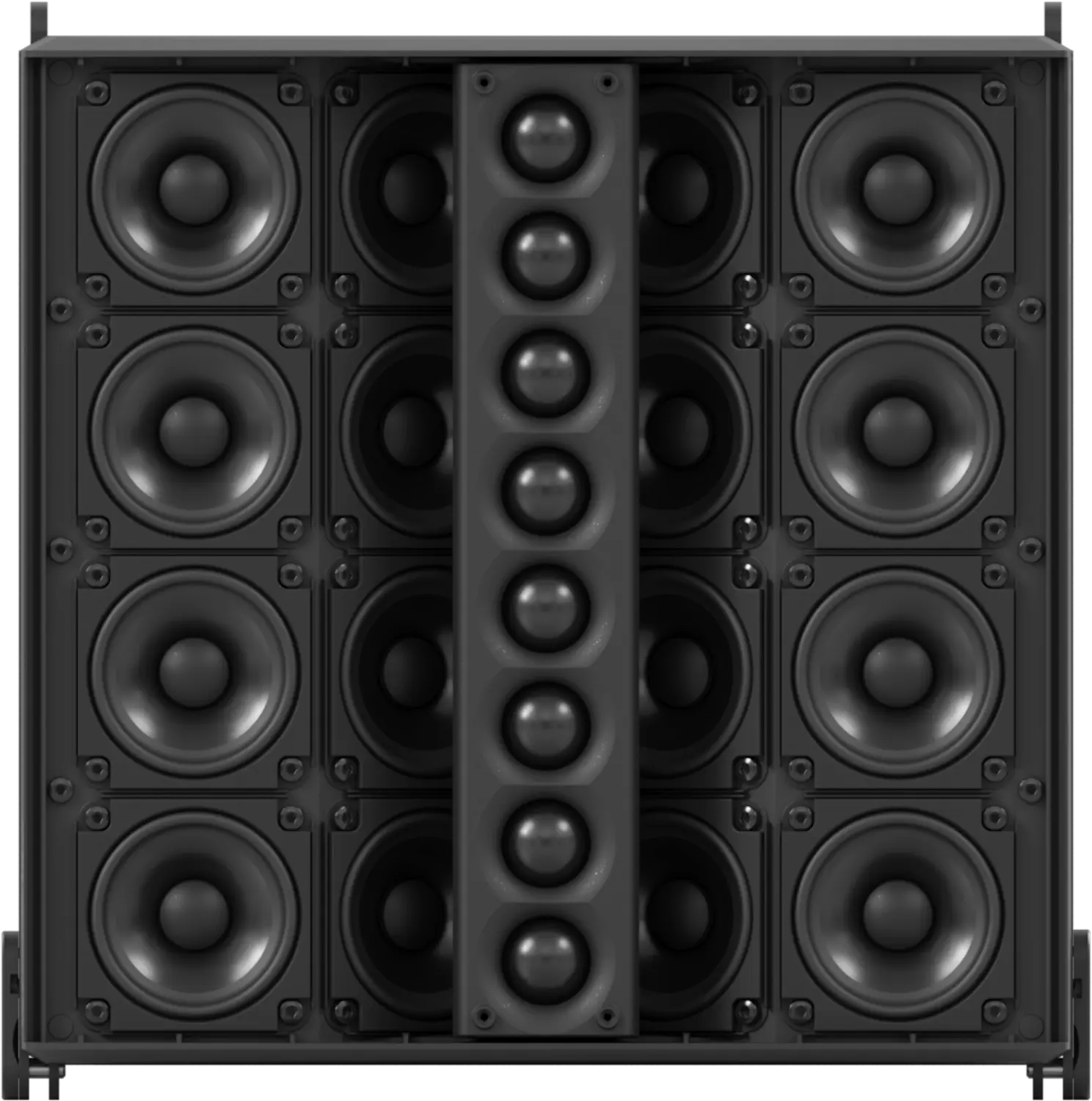

| Transducers | MF: 16 × 2.8" drivers (0.8" VC); HF: 8 × 1" dome tweeters (1" VC) |
| Enclosure type | Vented box |
| AMPLIFICATION | |
| Type | Amp: Class-D, Power supply: SMPS |
| Total power | 1000 W**** |
| Output power per channel | MF: 500 W, HF: 500 W***** |
| Protection | Short circuit, temperature |
| Indicators | LEDs: ON (green), SIGNAL (green), LIMIT (red), PROTECT (red) |

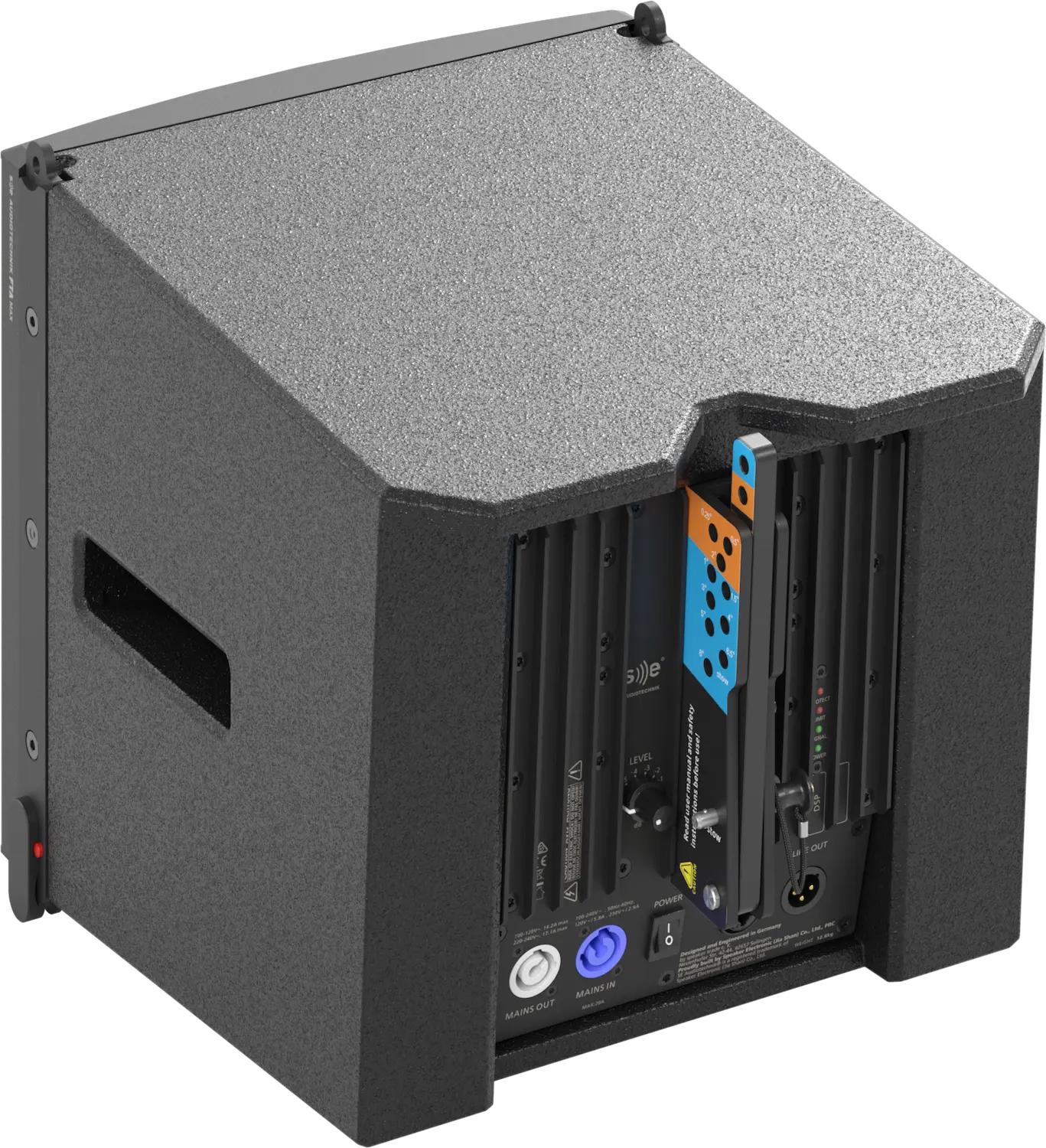

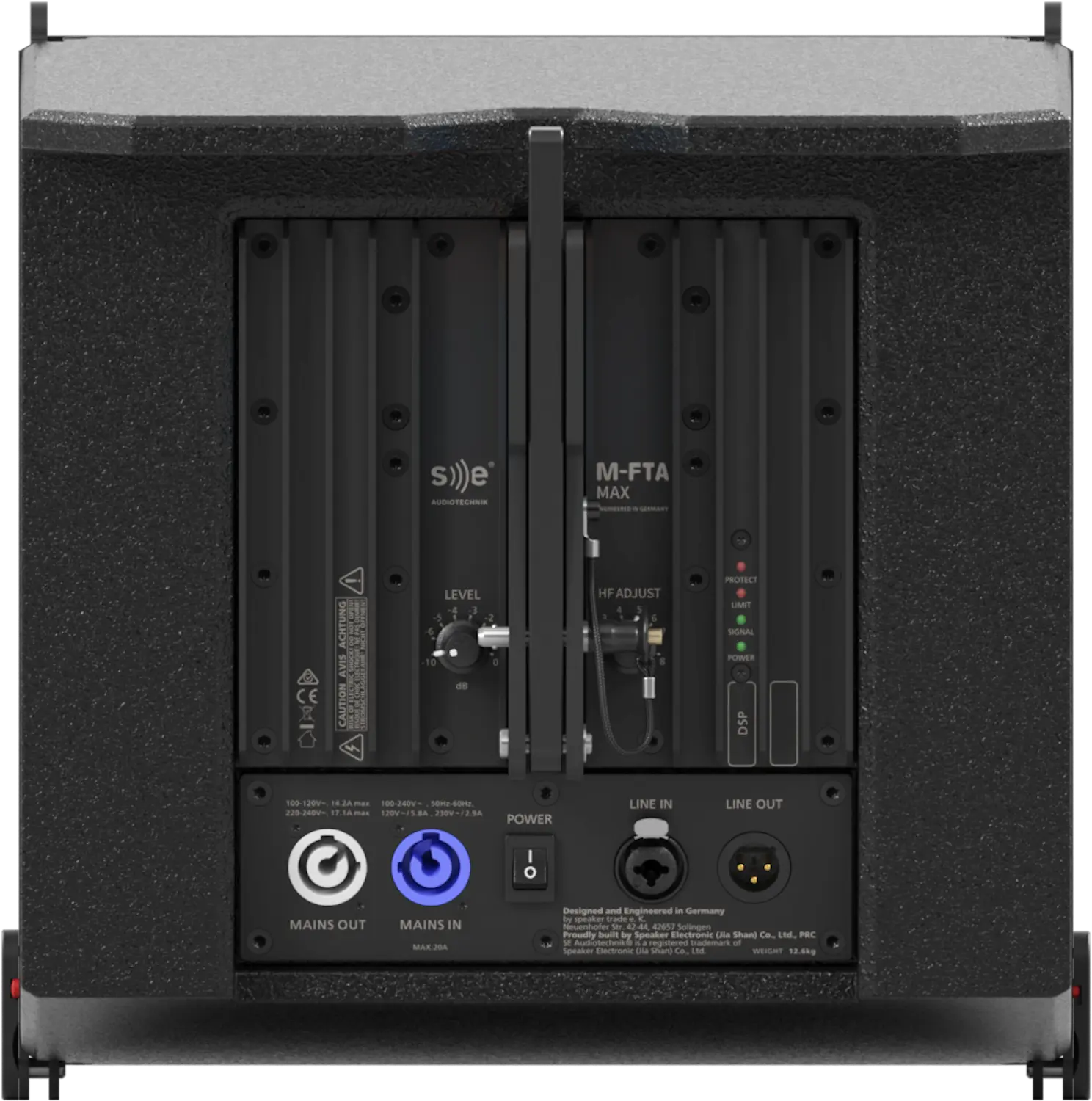

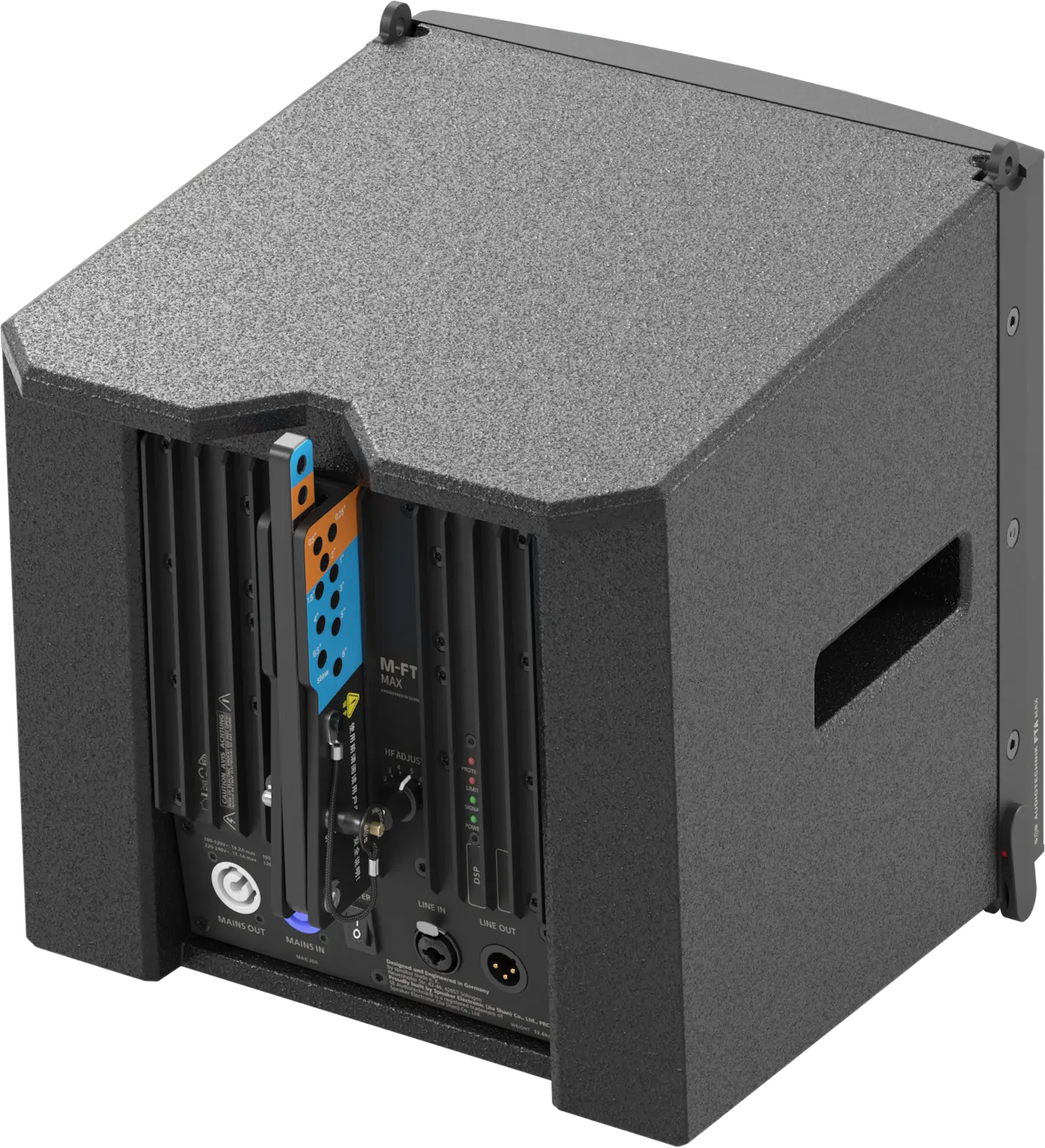

| Connectors | 1 × XLR Line balance input, 1 × XLR Line balance output, 1 × Powercon AC input 20A, 1 × Powercon AC output 20A |
| Wiring | XLR: Pin 2: Signal+, Pin 3: Signal-, Pin 1: Shield; PowerCON: Pin N: Neutral, Pin L: Conductor, Pin E: Earth |
| Operating voltage range | 100-120 V~ / 50-60 Hz, 8A, 800 W max.; 220-240 V~ / 50-60 Hz, 3.5A, 800 W max. |
| Input sensitivity | 0 dBu |
| DSP | 48 kHz/24 Bit with extended dynamics |
| Processing | Crossover, Limiter, EQ, Level, low noise AD-DA |
| User controls | LEVEL: 8 position rotational switch (-10, -6, -5, -4, -3, -2, -1, 0); HF LEVEL: 8 position rotational switch (1~8) |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] | 326 × 329 × 384 mm |
| Net weight | 12.2 kg |
| Packaging dimensions [H x W x D] | 485 × 415 × 452 mm |
| Total weight | 13.6 kg |
| Cabinet | 12 mm plywood |
| Cabinet finishing | Black polyurea coating |

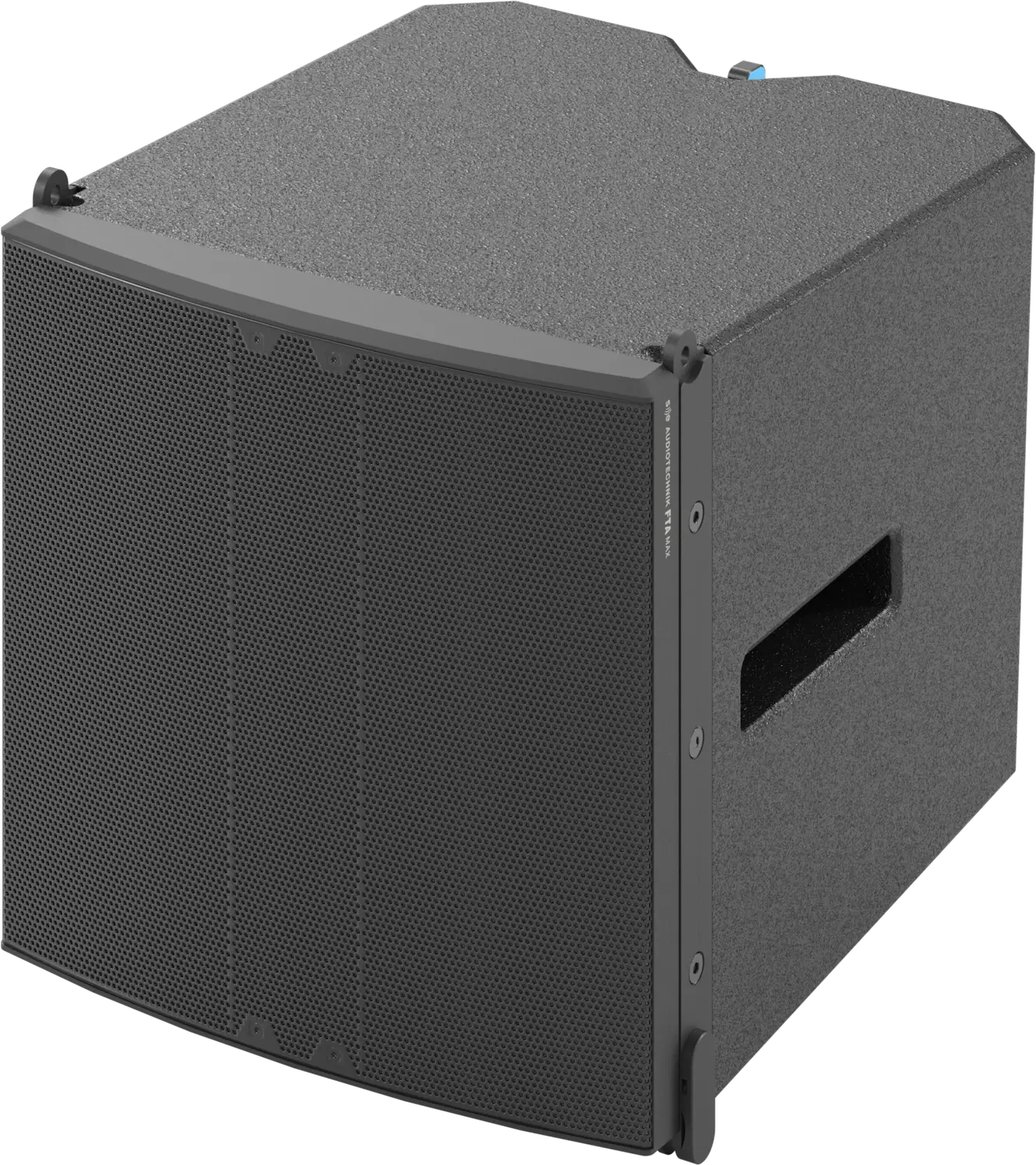

| Grille | Powder-coated perforated steel |
| Rigging | Three-point rigging system, 3 × SE Audiotechnik® 6 mm self-locking pins |
| Splay angles | 0.25º, 0.5º, 1º, 1.5º, 2º, 3º, 4º, 5º, 6.5º, 8º |
| ACCESSORIES | |
| M-F3A PRO MAX BF | Bumper frame for flying M-FTA MAX modules |
| M-F3A PRO MAX UB | U-bracket for mounting M-FTA MAX |
| M-F3A PRO MAX FRC 8/12/16 | Rain cover for 8, 12 or 16 M-FTA MAX modules |
| ANNOTATION | |
| * | Whole space, -10dBu/ 1m |
| ** | (-6 dB, 500 Hz - 6000 Hz) |
| *** | SPL / 1m, whole space, pink noise, 12dB crest factor, +10dBu input level |
| **** | Total power value is the sum of all individual channel output power |
| ***** | According to EIA-426B Standard |
