M-Array
M-FTA
Technical details
| ACOUSTICAL DATA | |
|---|---|
| Model Name | M-FTA |
| Frequency range (-3 dB) | 140 Hz – 20 kHz* |
| Frequency range (-6 dB) | |
| Frequency range (-10 dB) | 100 Hz – 20 kHz* |
| Coverage angles (-6 dB) [H x V] | 120° × 16° |
| Maximum Peak SPL | 132 dB* |
| System type | 2-way active |
| Crossover frequency | 1.9 kHz |

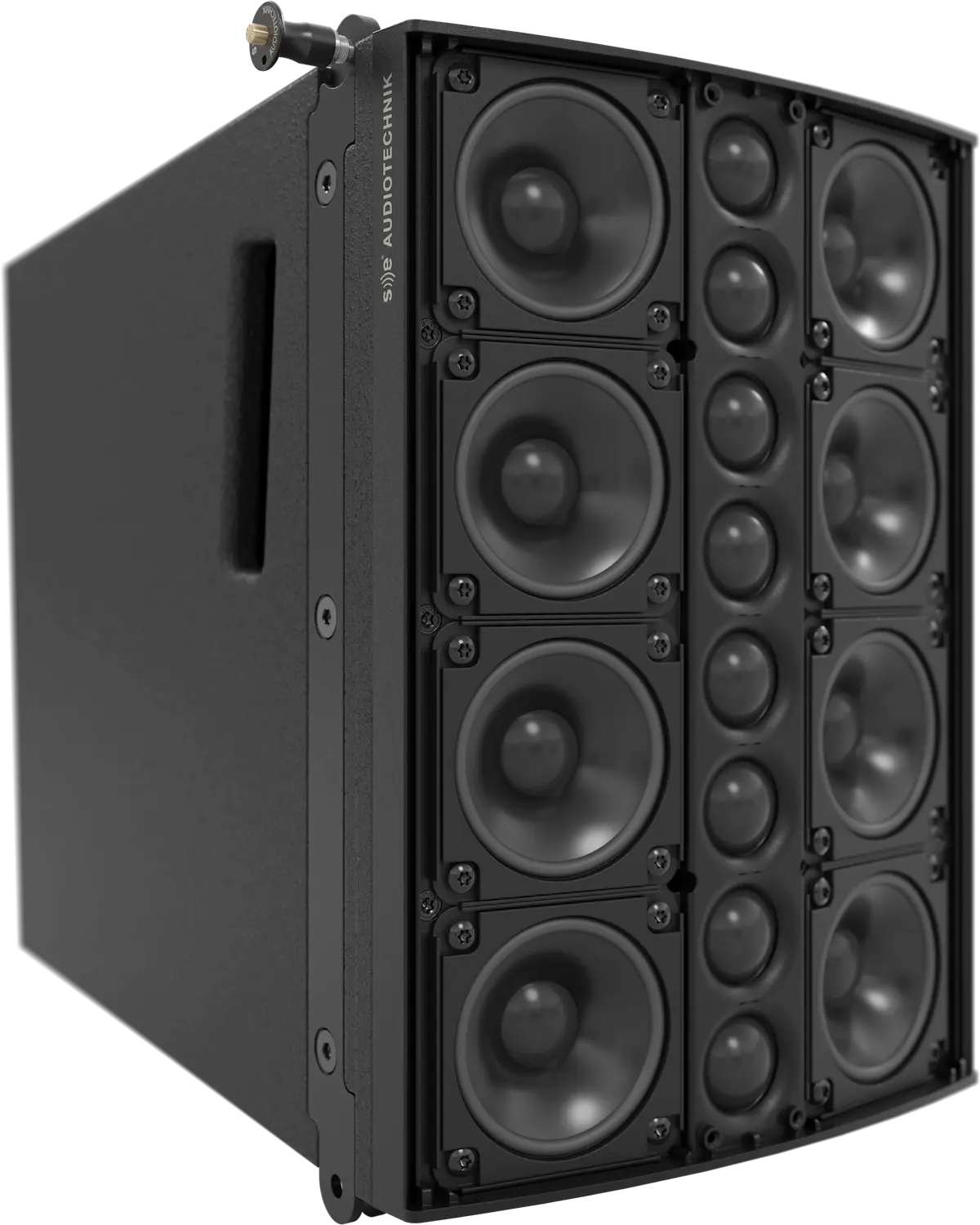

| Transducers | MF: 8 × 2.8" drivers (0.8" VC); HF: 8 × 1" dome tweeters (1" VC) |
| Enclosure type | Vented box |
| AMPLIFICATION | |
| Type | 2 channel, class-D with SMPS |
| Total power | 700 W** |
| Output power per channel | MF: 350 W, HF: 350 W** |
| Protection | Short circuit, overheating, overcurrent |
| Connectors | Input signal: balanced XLR 3-pin female; Link output: balanced XLR 3-pin male; Power input: powerCON® 20A; Power link output: powerCON® 20A |
| Wiring | Pin N: Neutral; Pin L: Conductor; Pin E: Ground |
| Input sensitivity | 0 dBu |
| DSP | 48 kHz/24 bit with extended dynamics, processing latency: 1.1 ms |
| Processing | Level, factory EQ presets |
| User controls | Power: ON/OFF switch; Level: 8-position rotary knob (-50, -20, -10, -6, -3, -2, -1, 0); Line units: 8-position rotary knob (1 - 8+) |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] | 317 × 265 × 359 mm |
| Net weight | 8.1 kg |
| Packaging dimensions [H x W x D] | 477 × 415 × 408 mm |
| Total weight | 10.1 kg |
| Cabinet | 12 mm plywood |

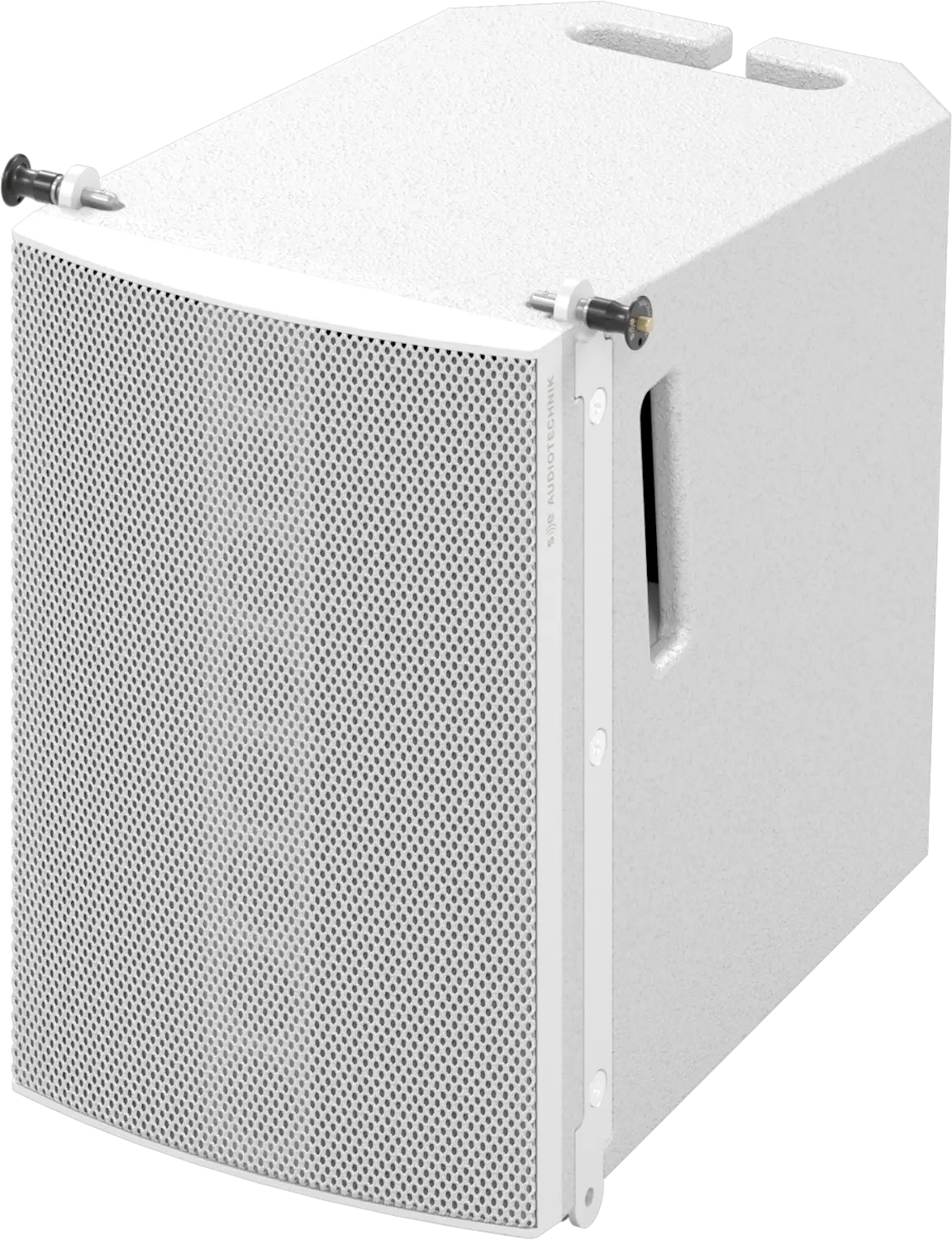

| Cabinet finishing | Black or white polyurea coating |

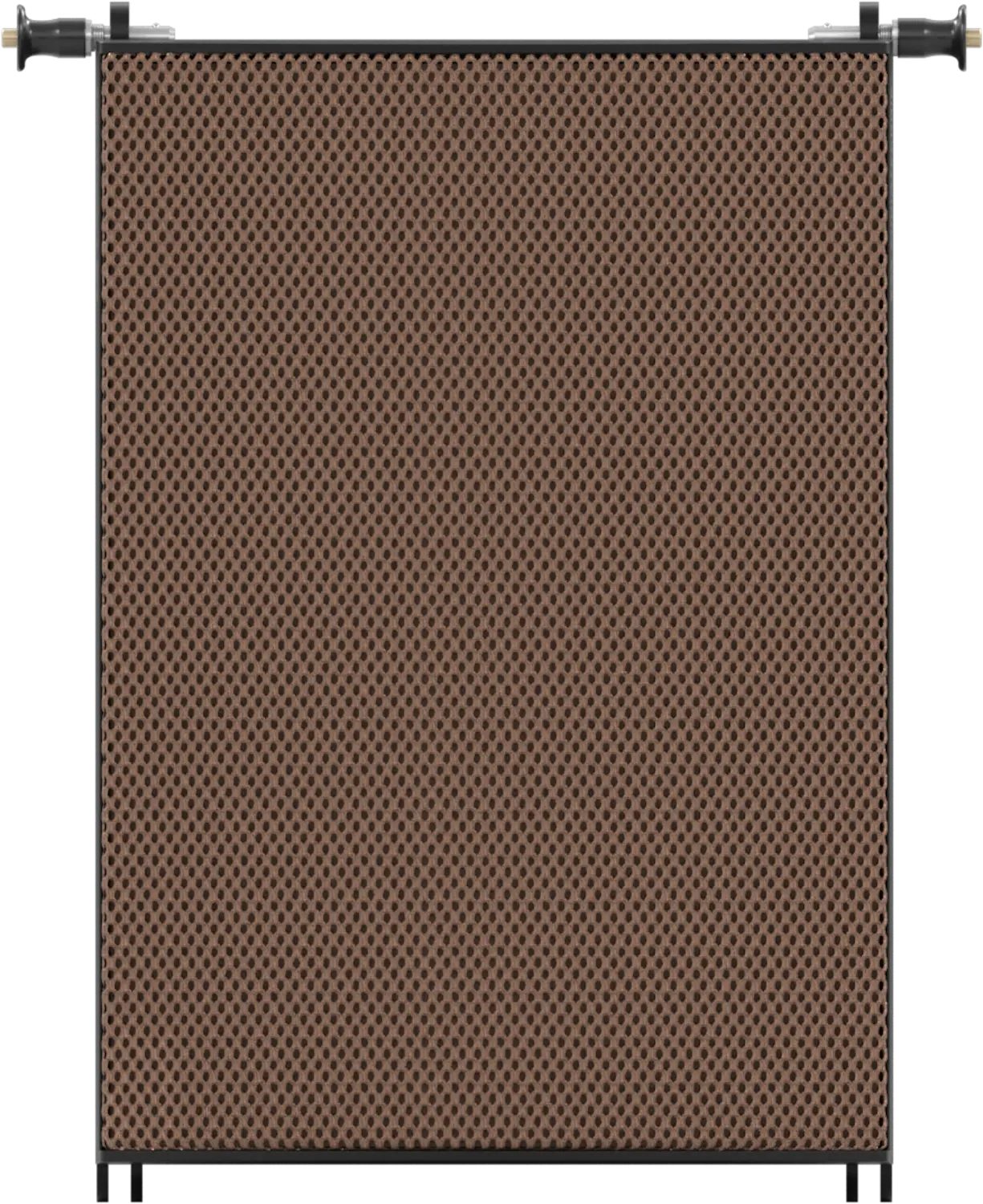

| Grille | Powder coated perforated steel |
| Hardware | Rear handle in 12 mm plywood plus side grips embedded in cabinet |
| Rigging | Three-point rigging system, 3 × SE Audiotechnik® 6 mm locking pins |
| Splay angles | 0º, 1º, 2º, 3º, 4º, 6º, 8º |
| ACCESSORIES | |

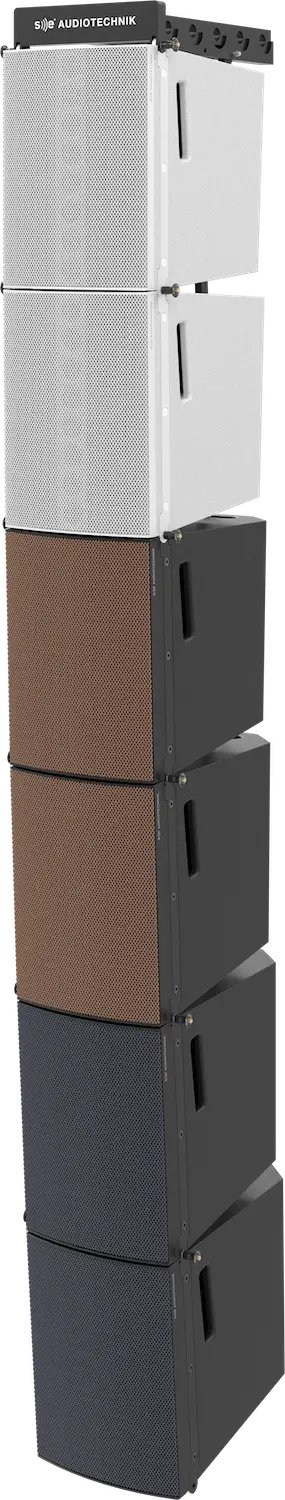

| M-F3A BF | Bumper frame for flying M-FTA modules |
| M-F3A UB | U-bracket for mounting M-FTA |
| SPS20 | Pole bar for mounting M-FTA |
| ANNOTATION | |
| * | Measured with 12 dB Crest factor Pink Noise, whole space |
| ** | Total power value is the sum of all individual channel output power |
