M-F3A PRO

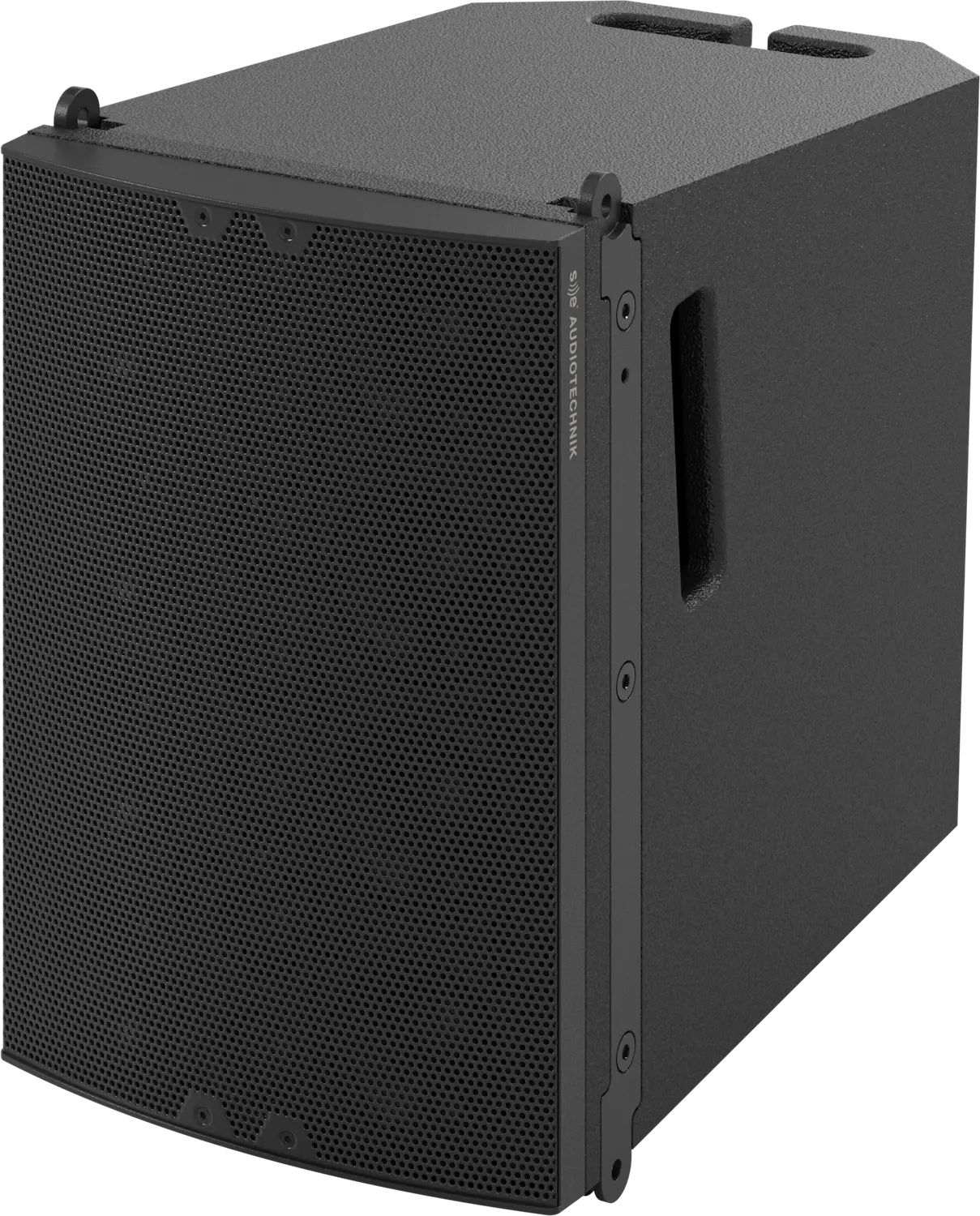

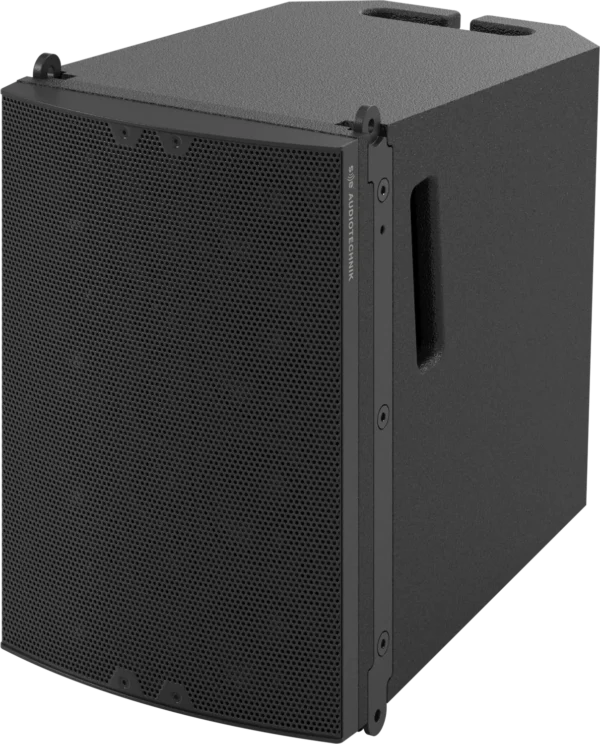

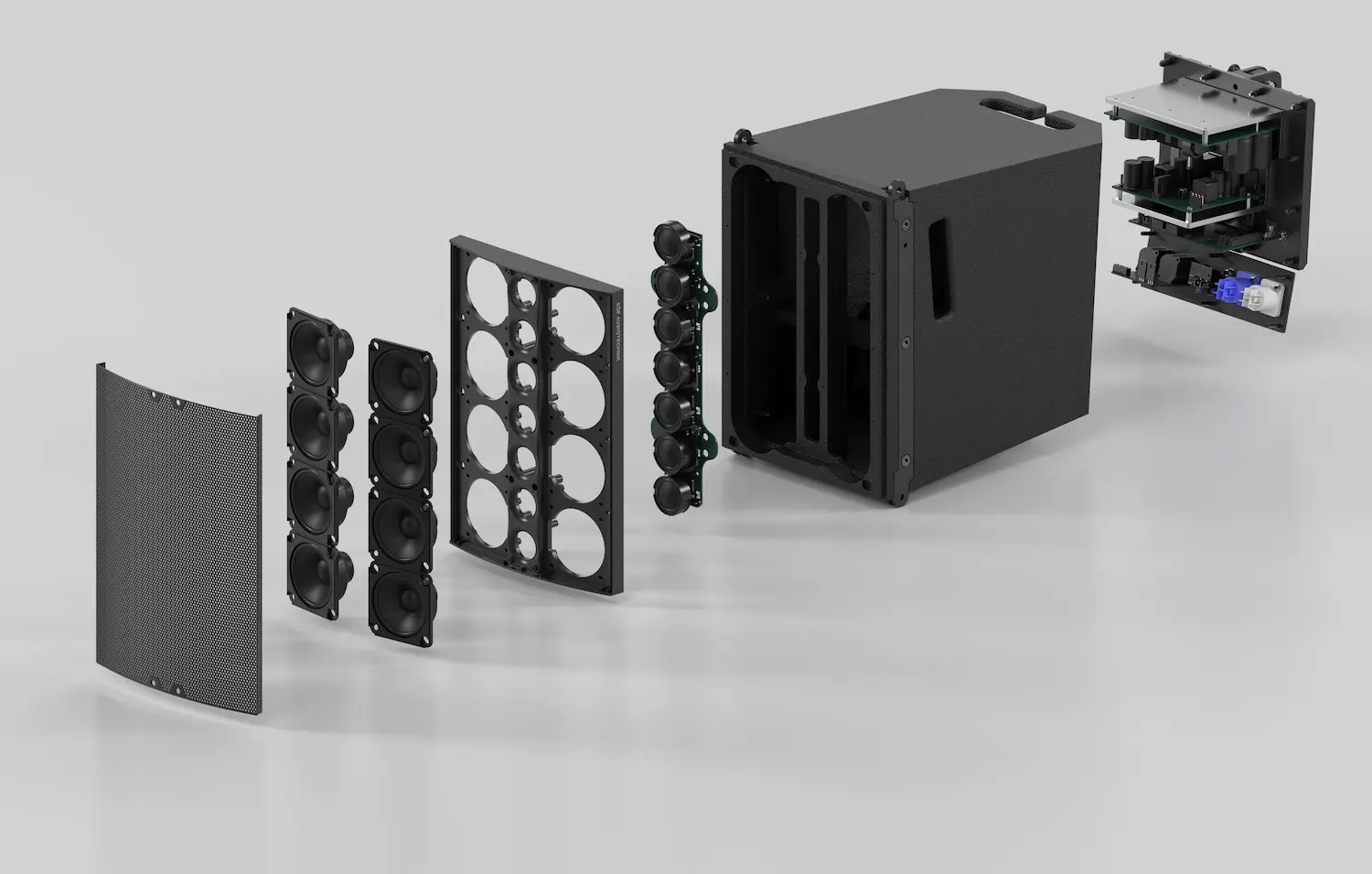

Our M-F3A PRO is an ultra-compact active line array system that delivers crystal-clear sound reproduction with powerful midrange and treble in studio quality thanks to its hornless design. The unique PA sound is achieved through the integration of 8 highly efficient 2.8-inch neodymium midrange drivers and 7 1-inch dome tweeters with direct radiation from the unit.
All drivers have been designed for high efficiency and extended low-frequency bandwidth. This lowers the lower cut-off frequency in the low-mid range, making voices sound exceptionally rich and natural. All drivers are mounted on an A4-sized front panel. Each unit achieves up to 129 dB peak sound pressure level and weighs only 8 kg, including amplification and DSP. The distinctive sound of the M-F3A PRO is achieved by a 2-channel Class D power amplifier with 600 W, which delivers 2x 300 W RMS to the tweeters and midrange drivers. Two controls, the level and line unit selection, allow precise adjustment of key system parameters such as attenuation and timbre, depending on the number of units in the array.
Technical details
| Model Name | M-F3A PRO |
|---|---|
| ACOUSTICAL DATA | |
| Frequency range (-3 dB) | 140 Hz – 20 kHz* |
| Frequency range (-6 dB) | 110 Hz – 20 kHz* |
| Frequency range (-10 dB) | 100 Hz – 20 kHz* |
| Coverage angles (-6 dB) [H x V] | 120° × 16° |
| Maximum Peak SPL | 129 dB* |
| System type | 2-way active |
| Crossover frequency | 1.9 kHz |
| Transducers | MF: 8 × 2.8" drivers (0.8" VC); HF: 7 × 1" dome tweeters (1" VC) |
| Enclosure type | Vented box |
| AMPLIFICATION | |
| Type | 2 channel, class-D with SMPS |
| Total power | 600 W** |
| Output power per channel | MF: 300 W, HF: 300 W |
| Protection | Short circuit, overheating, overcurrent |

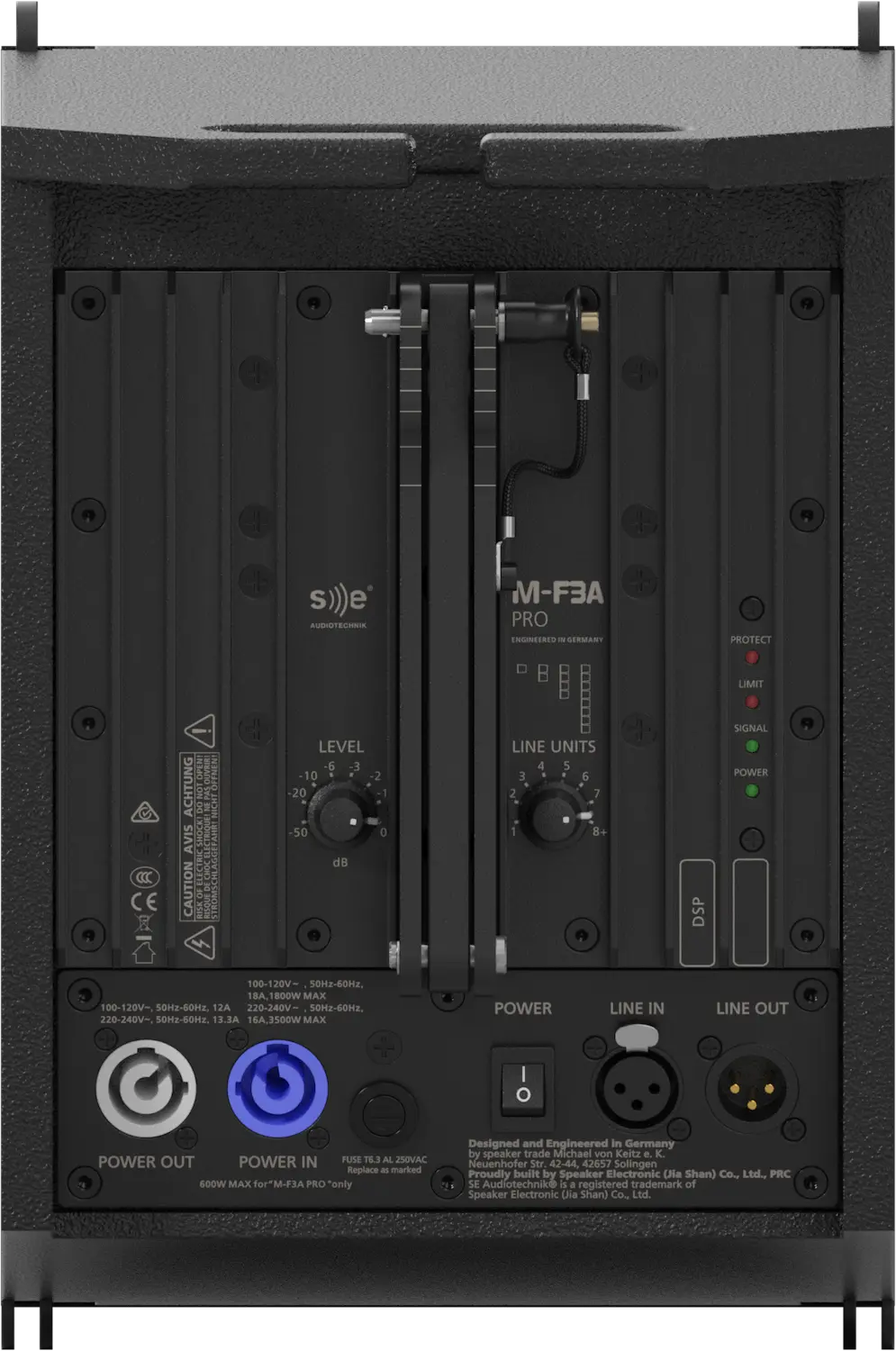

| Connectors | Input: balanced XLR 3-pin female; Link: balanced XLR 3-pin male; Power in: powerCON® 20A; Power link: powerCON® 20A |
| Wiring | Pin N: Neutral; Pin L: Conductor; Pin E: Ground |
| Input sensitivity | 0 dBu |
| DSP | 48 kHz/24 bit with extended dynamics, latency 1.1 ms |
| Processing | Level, factory EQ presets |
| User controls | Power: ON/OFF switch; Level: 8-position rotary knob (-50, -20, -10, -6, -3, -2, -1, 0); Line units: 8-position rotary knob (1 - 8+) |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] | 317 × 265 × 359 mm |
| Net weight | 8.3 kg |
| Packaging dimensions [H x W x D] | 388 × 290 × 440 mm |
| Total weight | 9.5 kg |
| Cabinet | 12 mm plywood |
| Cabinet finishing | Black or white polyurea coating |

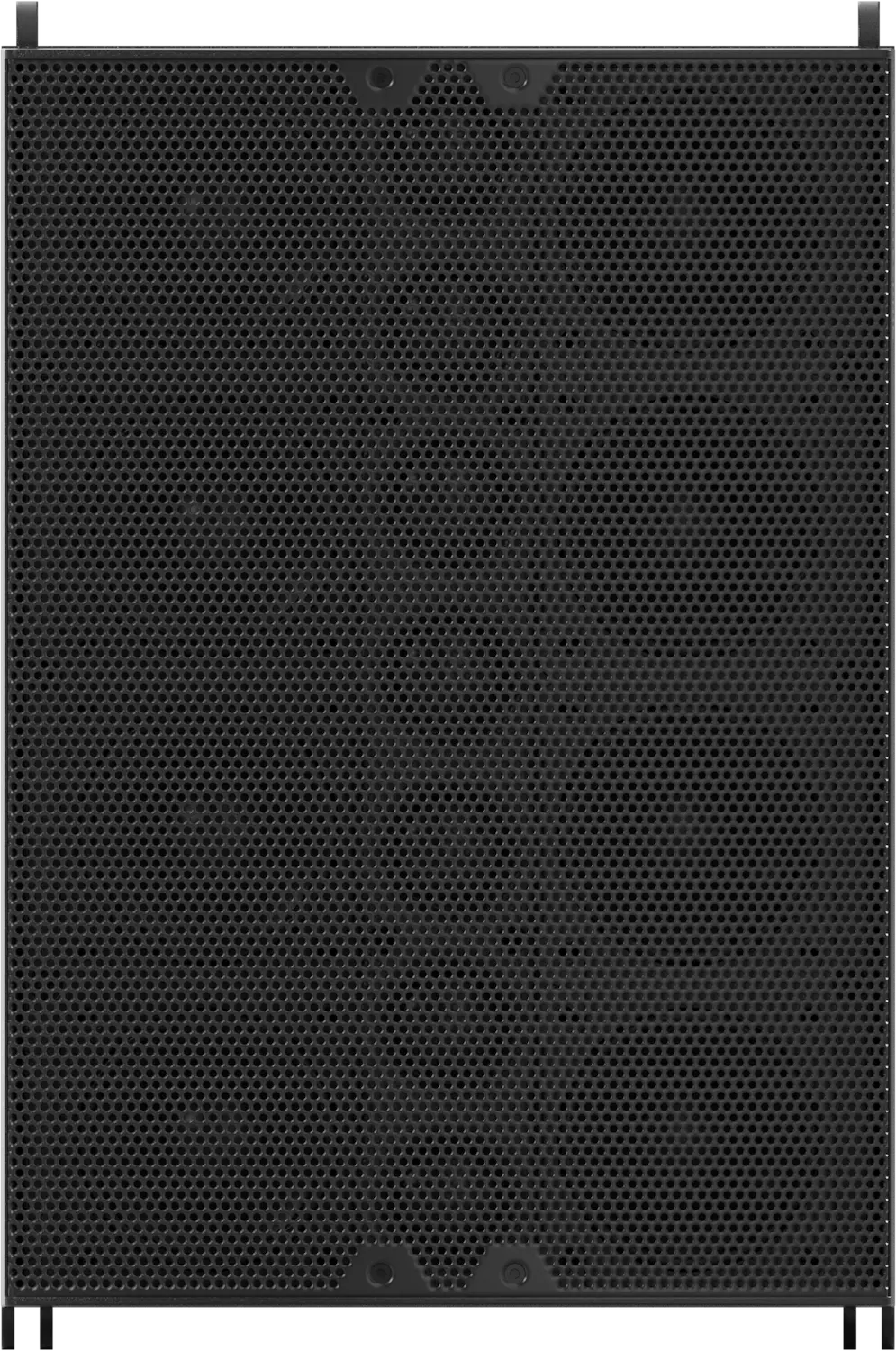

| Grille | Powder coated perforated steel |

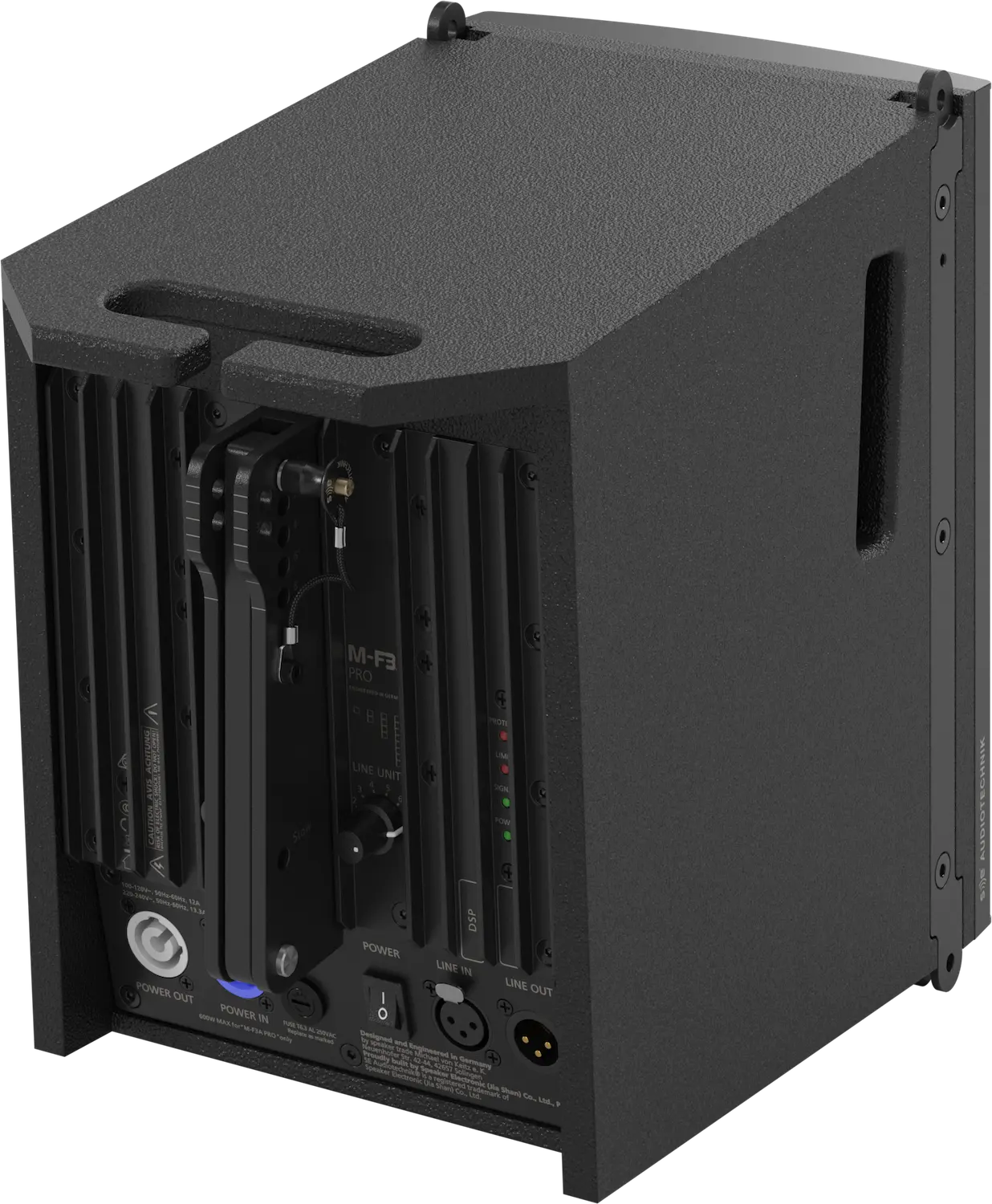

| Hardware | Rear handle in 12 mm plywood plus side grips embedded in cabinet |
| Rigging | Three-point rigging system, 3 × SE Audiotechnik® 6 mm locking pins |
| Splay angles | 0º, 1º, 2º, 3º, 4º, 6º, 8º |
| ACCESSORIES | |
| M-F3A BF | Bumper frame for flying M-F3A PRO modules |
| M-F3A UB | U-bracket for mounting M-F3A PRO |
| SPS20 | Pole bar for mounting M-F3A PRO |
| M-F3A FC | Flight case for 4 units of M-F3A PRO |
| M-F3A CTB | Carry-on bag for 1 unit of M-F3A PRO |
| M-F3A PRO TK44 | Transport kart for up to 4x4 units of M-F3A PRO |
| M-F3A PRO FRC 8 / 12 / 18 | Rain cover for 8, 12 or 18 M-F3A PRO modules |
| ANNOTATION | |
| * | Measured with 12 dB Crest factor Pink Noise, whole space |
| ** | Total power value is the sum of all individual channel output power |
