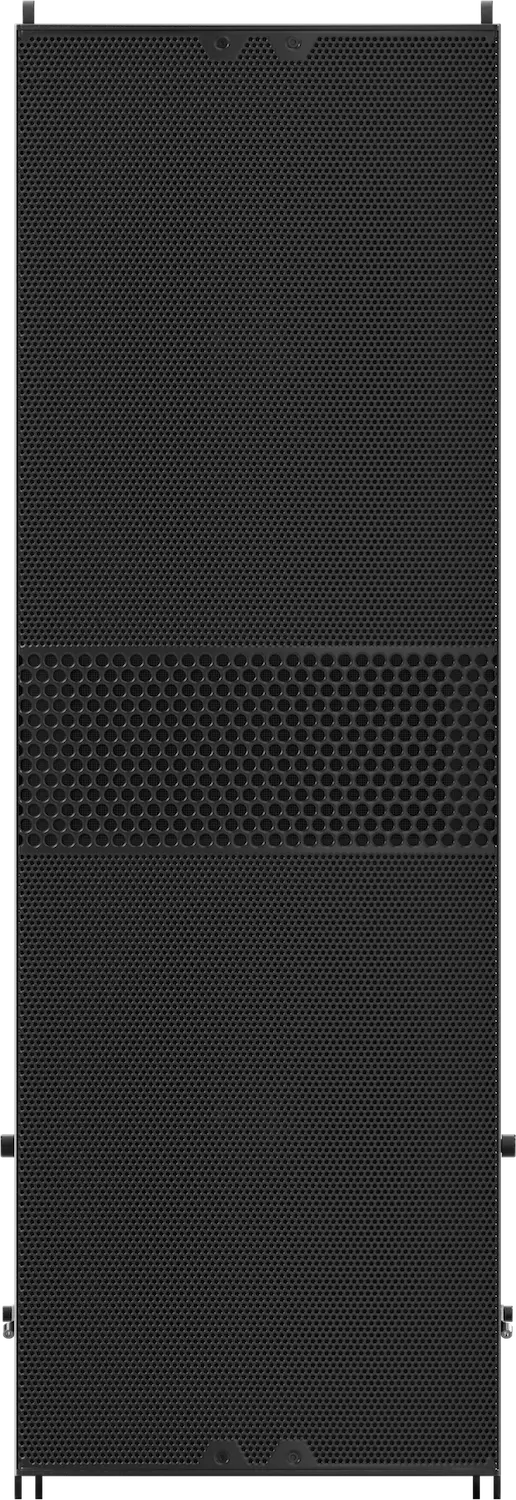

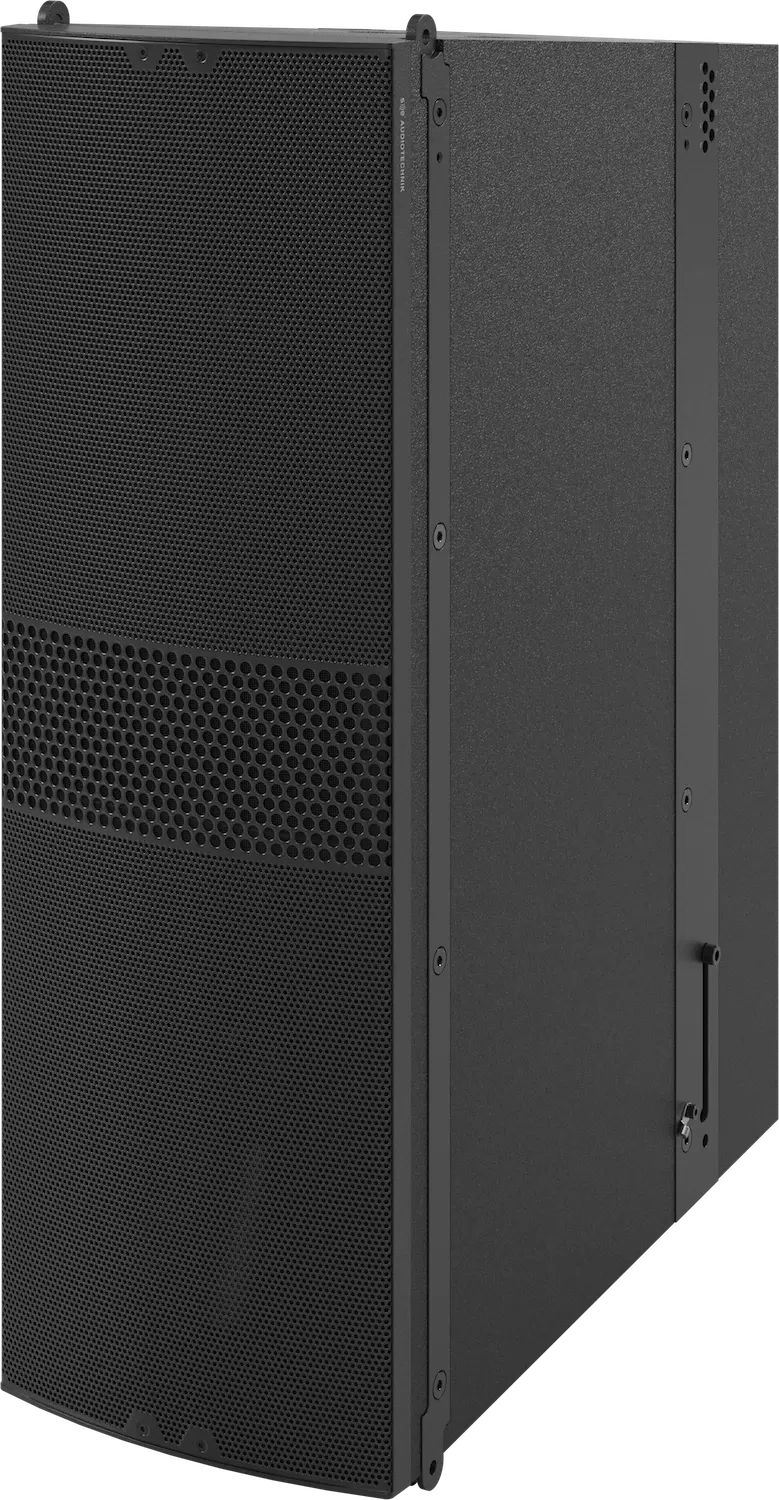

M-F3A FS
The M-F3A FS is a flyable bass extension module for the M-F3A PRO line array systems. It features two specially developed 6″ x 9″ woofers, which not only deliver high sound pressure levels but also offer a slim and discreet design. Its height is twice that of an M-F3A PRO unit, complementing the system in every respect.

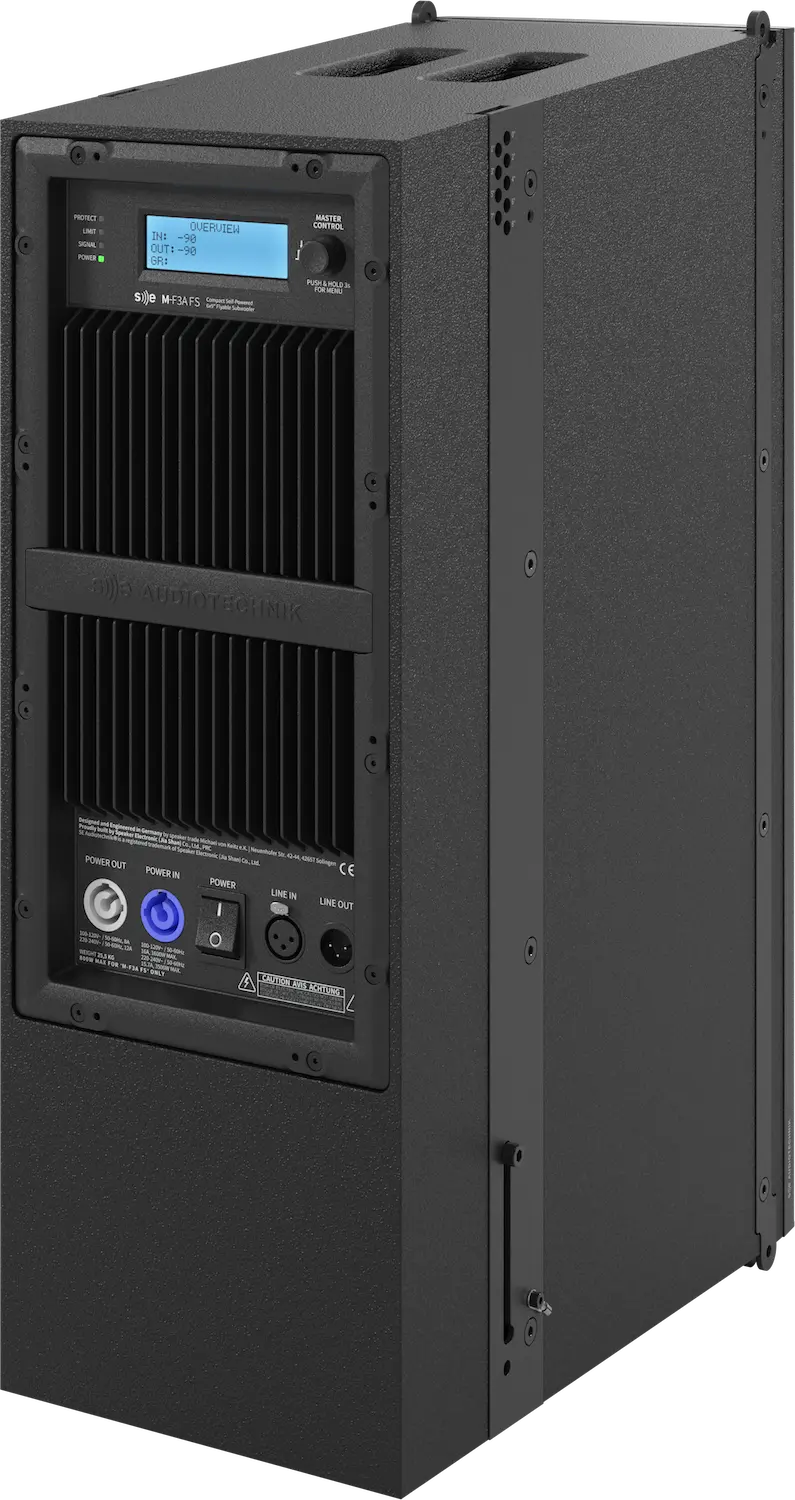

The unit contains a newly developed 800 W Class-D power amplifier and is equipped with a 24-bit/48 kHz DSP. Using the LCD screen and rotary encoder, the user can control various system parameters such as delay, EQ, filters, and other settings. User configurations can be saved as user presets. In addition, the built-in factory presets shorten setup times for existing M-Line systems in various configurations. For example, when the device is flown together with the M-F3A PRO, it can deliver rich and deep bass to handle setups where there is no space available for ground subwoofers.
Technical details
| ACOUSTICAL DATA | |
|---|---|
| Model Name | M-F3A FS |
| Frequency range (-3 dB) | 60 Hz – 103 Hz* |
| Frequency range (-6 dB) | 53 Hz – 123 Hz* |
| Frequency range (-10 dB) | 52 Hz – 143 Hz* |
| Coverage angles (-6 dB) [H x V] | Omnidirectional |
| Maximum Peak SPL | 127 dB** |
| System type | 1-way active system |
| Crossover frequency | - |
| Transducers | 2 × 6" by 9" drivers (2" voice coil) |
| Enclosure type | Vented box |
| AMPLIFICATION | |
| Type | Single channel, class-D with SMPS |
| Output power | 800 W |
| Protection | Short circuit, overheating, overcurrent |

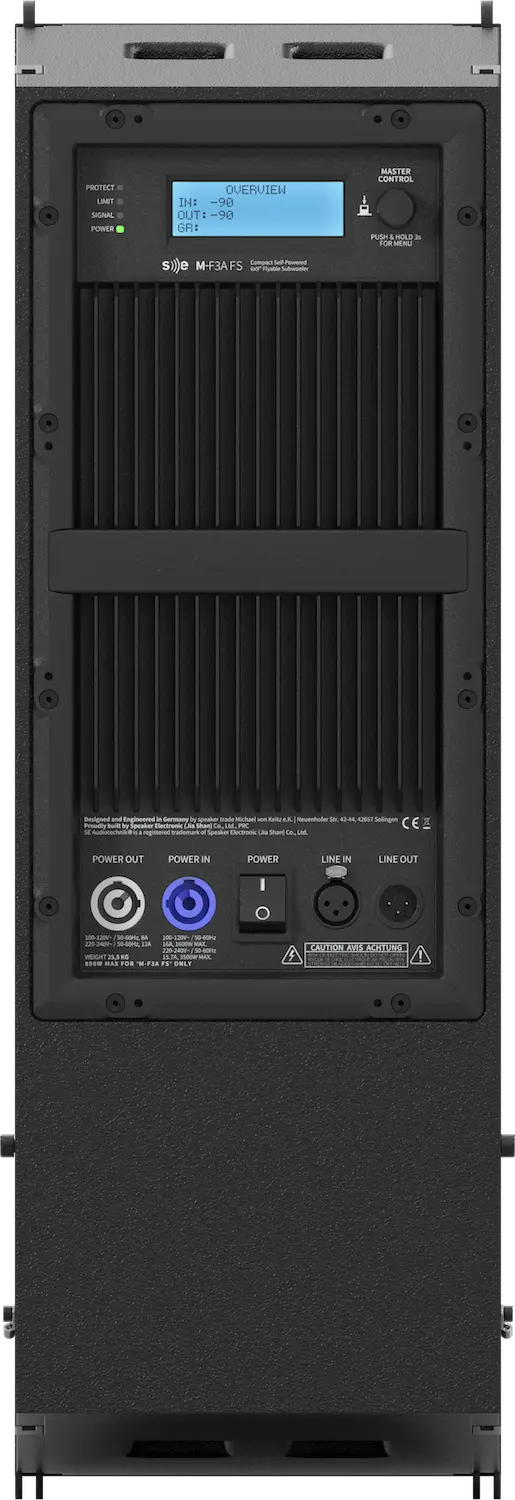

| Connectors | Input signal: balanced XLR 3-pin female; Link output: balanced XLR 3-pin male; Power input: powerCON® 20A; Power link output: powerCON® 20A |
| Wiring | Pin N: Neutral; Pin L: Conductor; Pin E: Ground |
| Input sensitivity | 0 dBu |
| DSP | 48 kHz/24 bit with extended dynamics, processing latency: 1.1 ms |
| Processing | Factory and user presets, EQ, delay, phase inversion |
| User controls | Power: ON/OFF switch; DSP: display with digital encoder |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] | 651 × 265 × 430 mm |
| Net weight | 23 kg |
| Packaging dimensions [H x W x D] | 743 × 310 × 530 mm |
| Total weight | 25 kg |
| Cabinet | 15 mm plywood |
| Cabinet finishing | Black or white polyurea coating |
| Grille | Powder coated perforated steel |
| Hardware | Top handle embedded in cabinet |
| Rigging | Four-point rigging system, 4 × SE Audiotechnik® 6 mm locking pins |
| Splay angles | 0º, 1º, 2º, 3º, 4º, 5º, 6º, 7º, 8º |
| ACCESSORIES | |
| M-F3A FS BF | Bumper frame for flying M-F3A FS modules |
| M-F3A FA34 | 4 to 3 point adapter for rigging |
| P801DL RC | Amplifier rain cover for M-F3A FS |
| ANNOTATION | |
| * | Measured with MF3AP preset |
| ** | Measured with 12 dB Crest factor Pink Noise, whole space |
