M-Array
M-F3A
Technical details
| Model Name | M-F3A |
|---|---|
| Type | Active two-way line array module |
| Frequency Range (-6dB) | 120 Hz – 18 kHz |
| Frequency Range (-10dB) | 100 Hz – 20 kHz |
| Coverage Angle (H × V, -6dB) | 120° × 16° |
| Max. SPL | 126 dB |
| System Type | Active two-way system |
| MF Driver(s) | 8 × 2.8" drivers (0.75" VC) |
| HF Driver(s) | 7 × 1" dome tweeters (1" VC) |
| Enclosure Type | Bass reflex |
| Enclosure Material | 12 mm plywood, black polyurea coating |

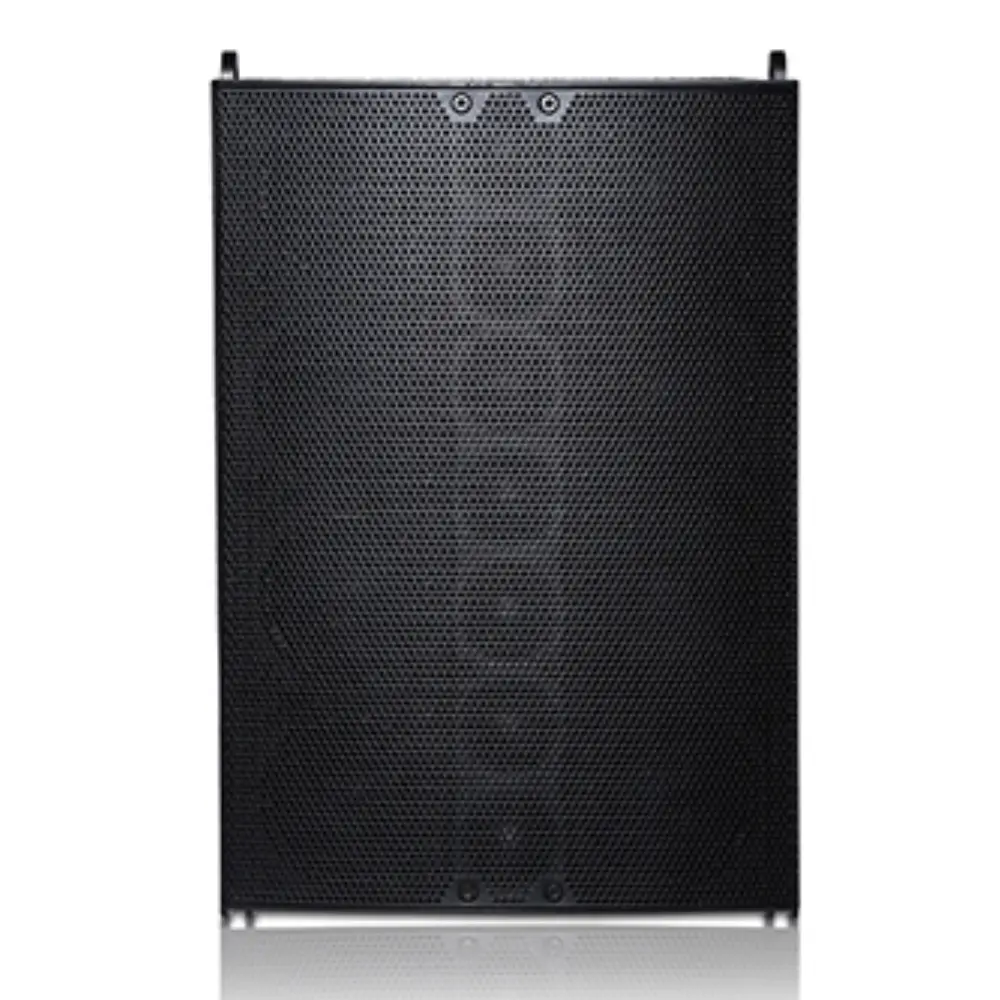

| Grille | Powder-coated perforated steel |

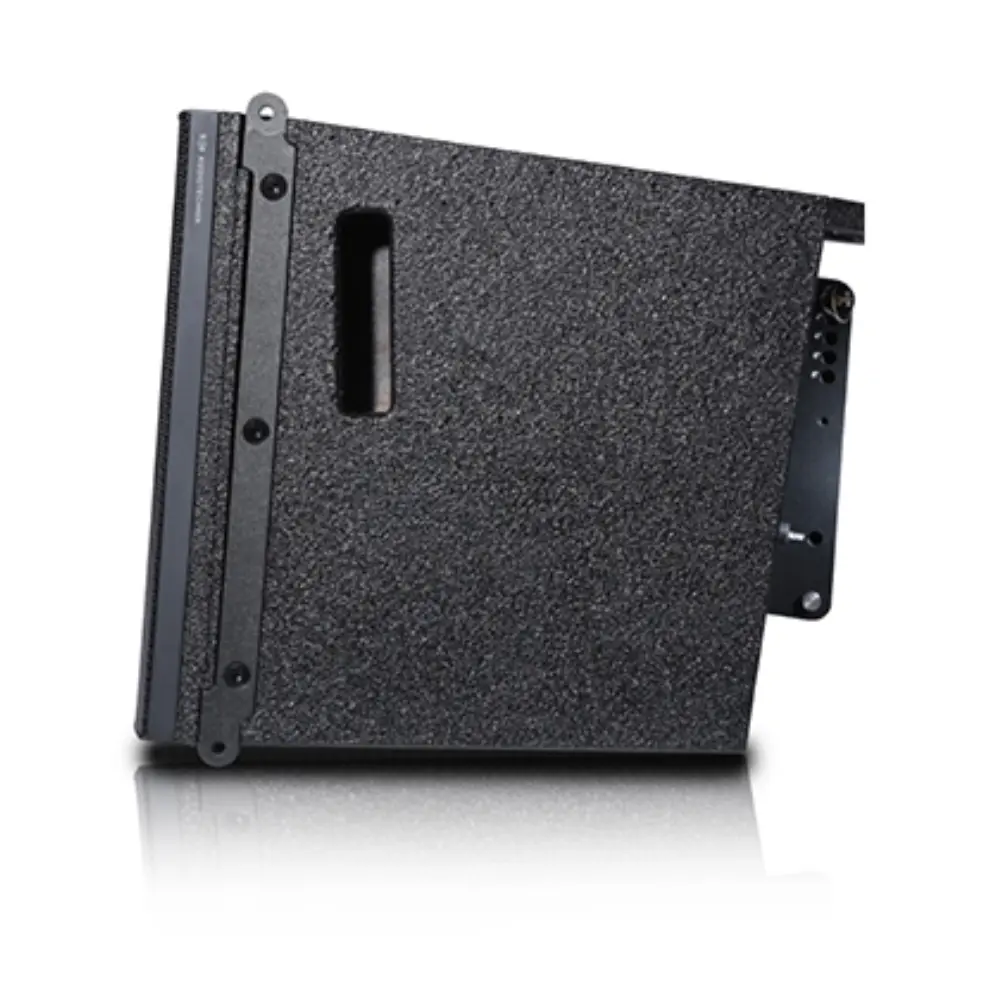

| Handles | Rear: 12 mm plywood; Sides: integrated |
| Suspension | 3-point rigging, 3 × SE Audiotechnik 6 mm safety pins, angles: 0°, 1°, 2°, 3°, 4°, 6°, 8° |

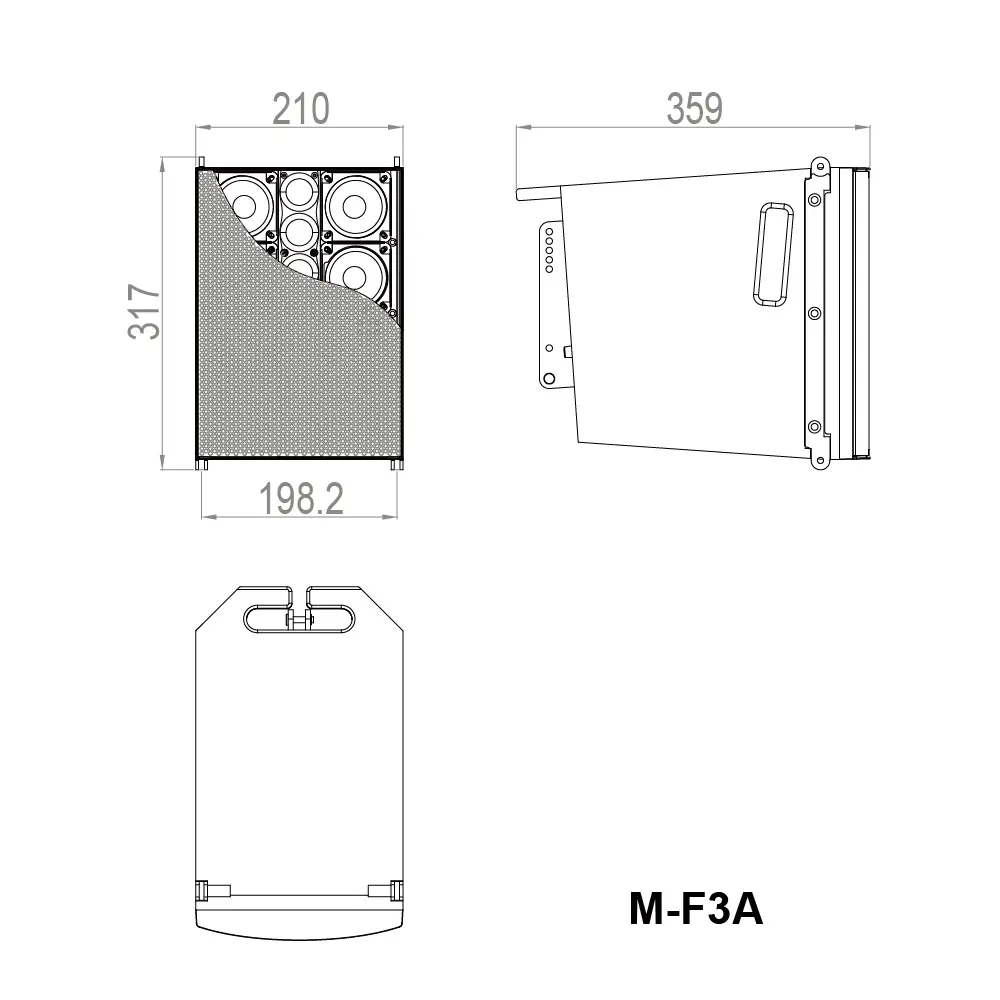

| Dimensions (H × W × D) | 317 × 210 × 359 mm |
| Net Weight | 8 kg |
| Amplifier Type | Dual channel Class D with SMPS |
| Total Power | 400 W (200 W MF + 200 W HF) |
| Output Power per Channel | MF: 200 W, HF: 200 W |
| Protection | Short circuit, overheat, overcurrent, limiter |
| Input Sensitivity | -4 dBV |
| DSP | 48 kHz / 24 bit |
| Processing | Level, factory DSP presets |

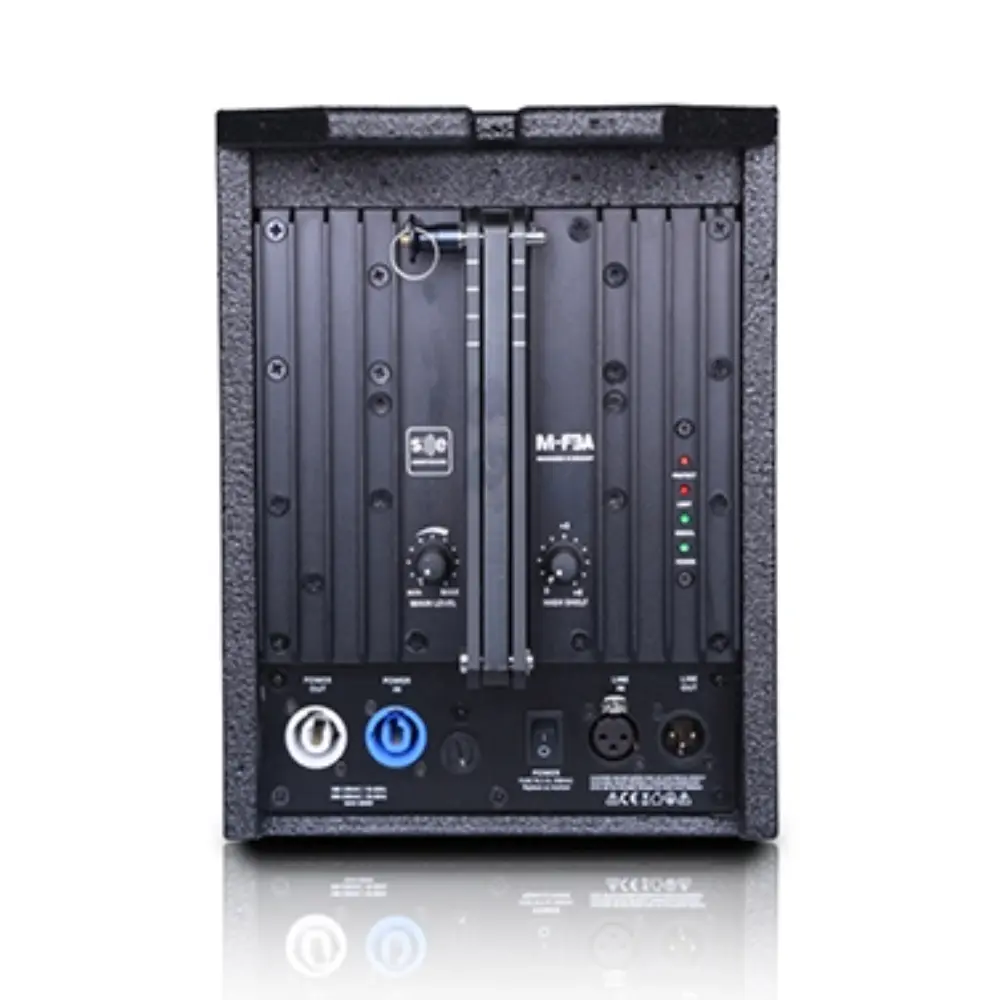

| User Controls | Power ON/OFF, main volume, HF shelf |
| Input Connector | Balanced XLR 3-pin female |
| Link Output | Balanced XLR 3-pin male |
| Power Input | powerCON 20A (max. 15A) |
| Power Link Output | powerCON 20A (max. 15A) |
| Pin Layout XLR | Pin 2: Signal+, Pin 3: Signal-, Pin 1: Shield |
| Pin Layout powerCON | N: Neutral, L: Live, E: Ground |
| Accessories | Flying frame, U-bracket, stacking frame, support pole, flight case (4x), backpack (1x) |
