M-Array

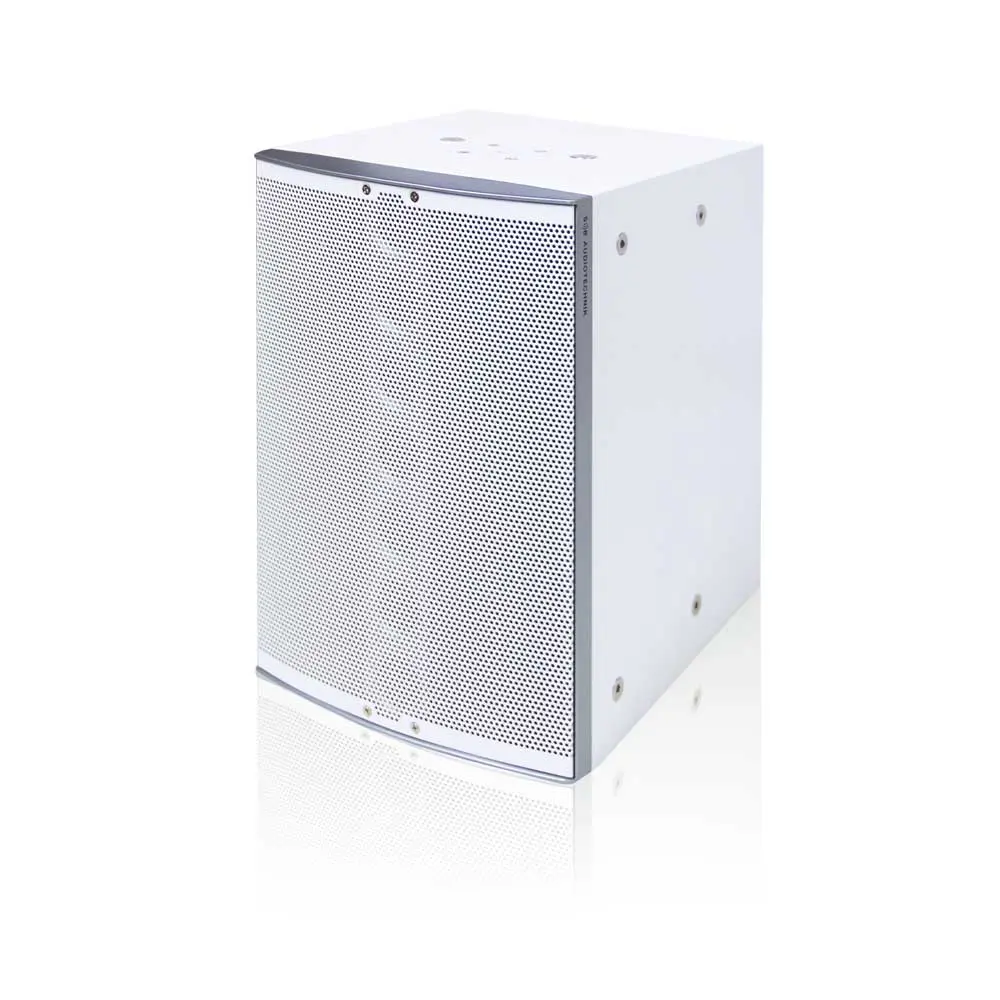

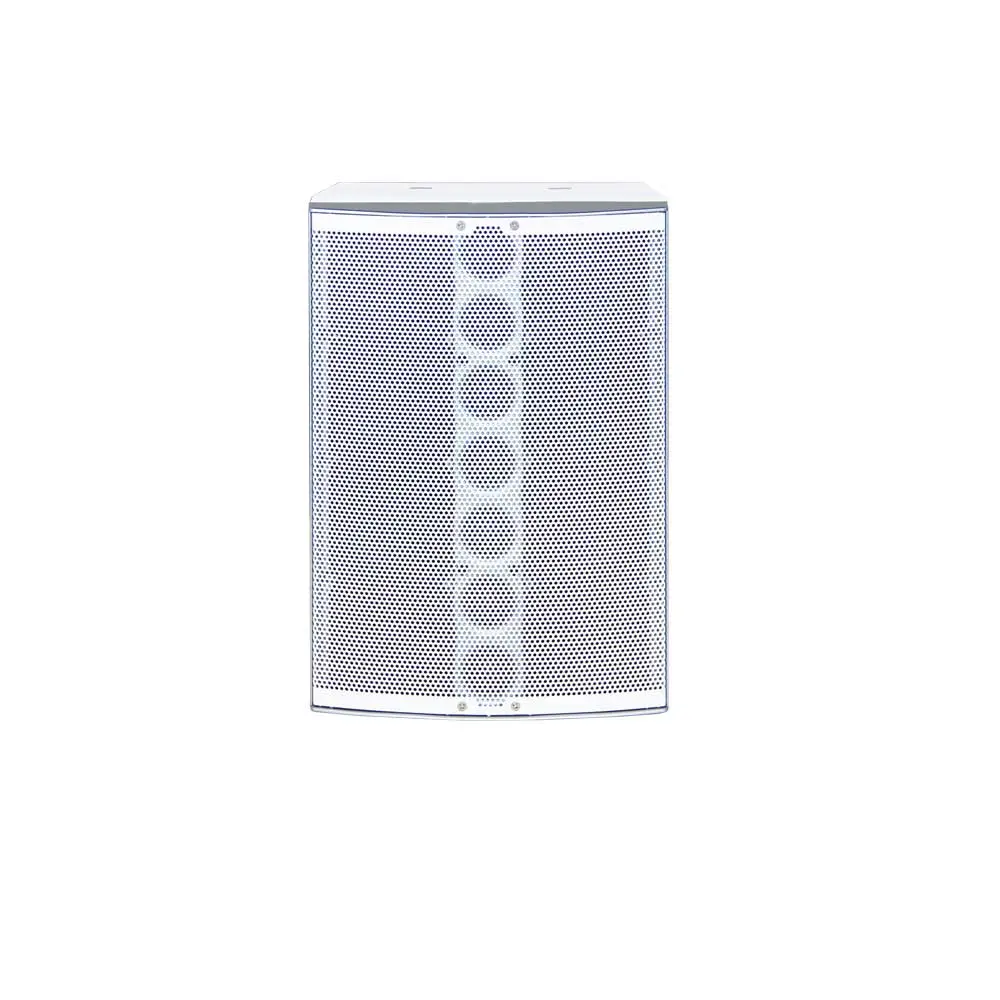

M-F3 SAT
Technical details
| Model Name | M-F3 SAT |
|---|---|
| Type | Passive line array module |
| Frequency Range (-6dB) | 120 Hz – 18 kHz |
| Power (RMS) | Mid: 200 W, High: 200 W |
| Peak SPL (1M) | 126 dB* |
| Max. Array Elements | 4 pcs |
| Coverage Angle (H × V) | 120° × 16° |
| MF Driver(s) | 8 × 2.8" neodymium, cooling module, 0.75" VC |
| HF Driver(s) | 7 × 1" neodymium silk dome, 1" VC |
| Enclosure Material/Finish | 12 mm MDF, white PU point finish |

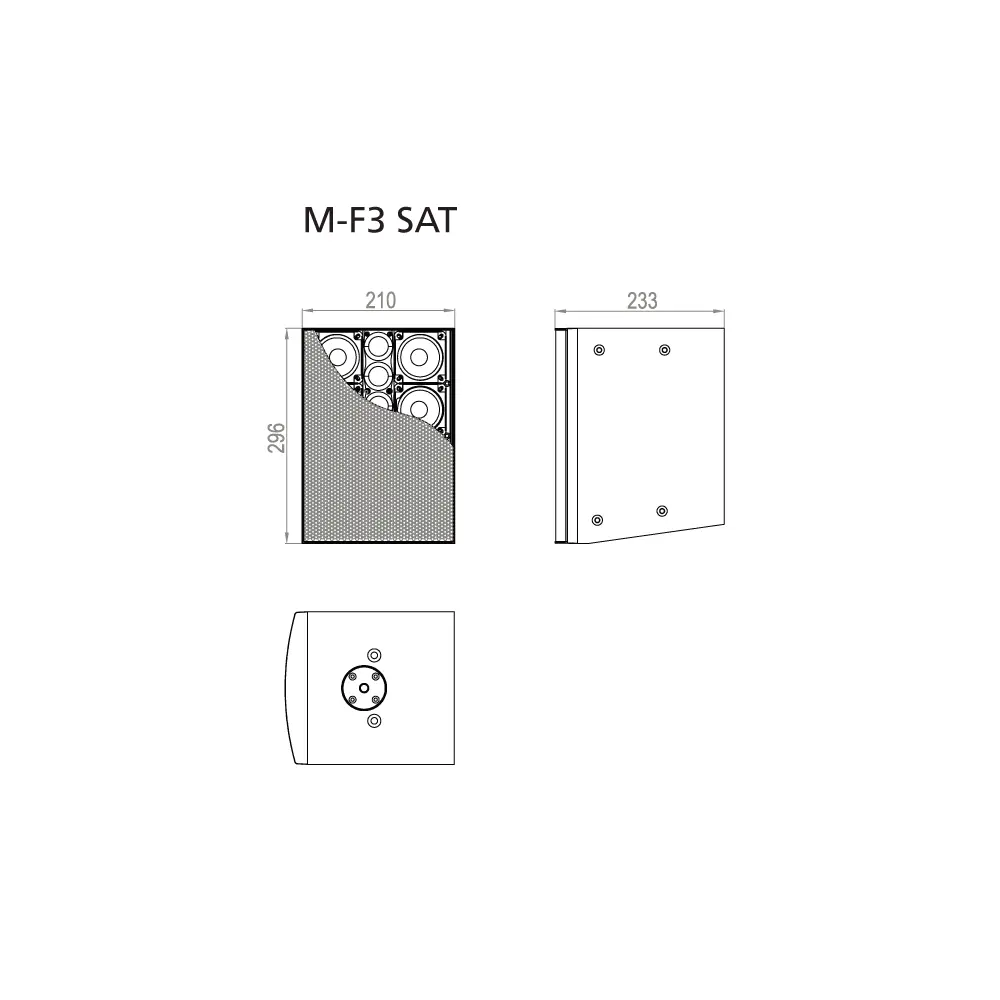

| Dimensions (W × H × D) | 210 × 296 × 233 mm |
| Net Weight | 5.5 kg + 5.5 kg |
| Note | Only usable with M-F3 AMP |
