Portable Column

M-A8

Set up in seconds. Fill the room. Hear everything.

M-A8 is a compact, self-powered column PA that combines subwoofer and columns into a single, easy-to-use system. Designed for musicians, DJs, bands, corporate presentations, bars, and multipurpose rooms, it delivers clear, dynamic sound with wide, even coverage—serving both audience and performer without clutter or complexity. With onboard inputs for microphones, instruments, and media players, you can leave the external mixer at home for smaller shows.

  • Self-powered, all‑in‑one column PA with integrated sub and array
  • Natural voice reproduction and punchy, musical low end
  • Onboard inputs for microphones, instruments, and media players
  • Fast tool‑free setup with a patented quick‑connect column interface
  • Scalable low end via extension subwoofers for larger rooms and events

Loading availability...

Feature 1
Wide, consistent coverage: Cylindrical wave behaviour and a carefully voiced array deliver even sound into the far corners while reducing room reflections.
Feature 2
Plug‑and‑play simplicity: Onboard mic/line/Hi‑Z inputs and straightforward controls enable confident setups without complex wiring.
Feature 3
Portable power, built to last: A rugged sub base, lightweight columns, and a quick‑lock interface provide fast assembly, reliable stability, and easy transport.

Engineered as a complete sound solution, M-A8 blends authority and finesse in a sleek, portable format. A powerful subwoofer base mates with two lightweight column elements to create a coherent, full-range system. The array’s cylindrical wave behaviour provides wide horizontal dispersion with smooth off‑axis response, helping reduce floor and ceiling reflections. The result is consistent, intelligible sound from the front row to the back—ideal for spoken word, vocals, and music alike. Thanks to carefully tuned signal processing and dedicated amplification per section, M-A8 remains balanced and articulate from quiet background levels to energetic live sets. Designed to make life easy on stage and on site, M-A8 requires virtually no product training: connect power, plug in your source, set your levels, and go. Onboard inputs accommodate microphones, instruments (Hi‑Z), and line‑level players, so small events often need no separate mixer. For performers, the wide horizontal coverage and gentle off‑axis level roll‑off provide clear monitoring from the main system position, reducing the need for extra wedges and helping to keep feedback at bay. When more low‑frequency headroom is required, additional extension subwoofers can be added and set to follow the main system’s processing for scalable performance across different venue sizes. Purpose-built mechanics support fast, reliable deployment. The patented connection interface lets you assemble or dismantle the three-part system in seconds, while durable finishes and robust cabinetry stand up to life on the move. Optional accessories—such as a backpack for the columns and a dolly board for the sub—streamline transport and protect your investment, whether you’re gigging nightly or supporting a busy event schedule.

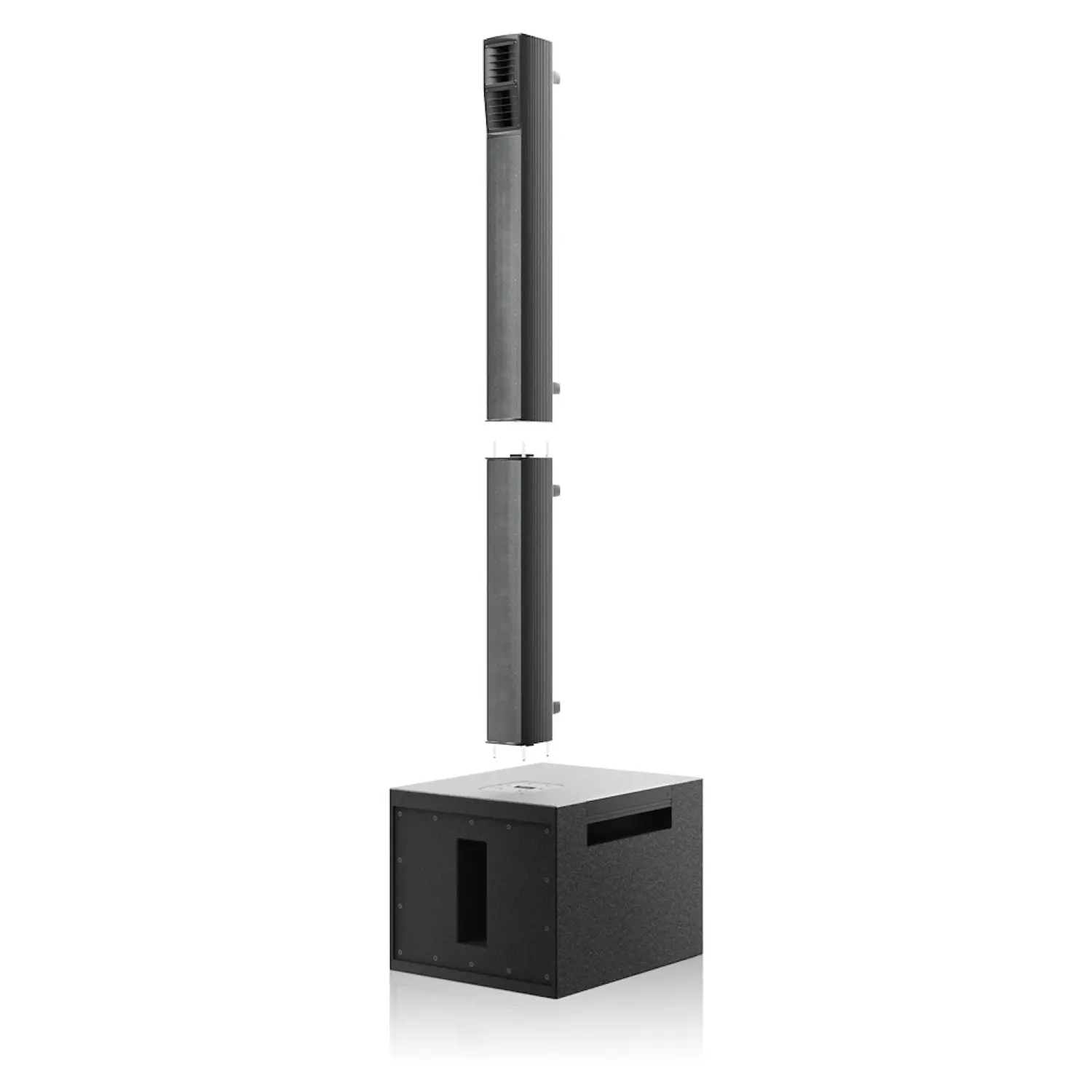

Product image 1

Technical details

ACOUSTICAL DATA
Model NameM-A8
System typeAll-in-one active column array system
Frequency range (-6 dB)40 Hz – 20 kHz*
Maximum Peak SPL137 dB**
Coverage angle (H)120°
LF Driver2 × 12" neodymium drivers, 3" VC
MF Driver16 × 3.5" neodymium drivers, 1" VC
HF Driver2 × 1" ferrite PEN dome tweeters, 1" VC
AMPLIFICATION
TypeClass D amplifier, SMPS power supply
Signal processingDSP, 48 kHz, 24 bits
Output powerSubwoofer: 800 W, Column: 800 W***
ProtectionMultistage limiter, short circuit, thermal protection
ControlsOn/Off switch, master volume, subwoofer volume
IndicatorsPower, signal, limiter, protection
ConnectorsLine in: XLR / 6.3 mm jack (combo), RCA; Line out: XLR; Processed sub out: XLR; Multipin custom connector
MECHANICAL DATA
Enclosure type (sub)V-type bandpass, 18 mm plywood, polyurea coating
Enclosure type (column)Sealed, HD coated, aluminum alloy 6063

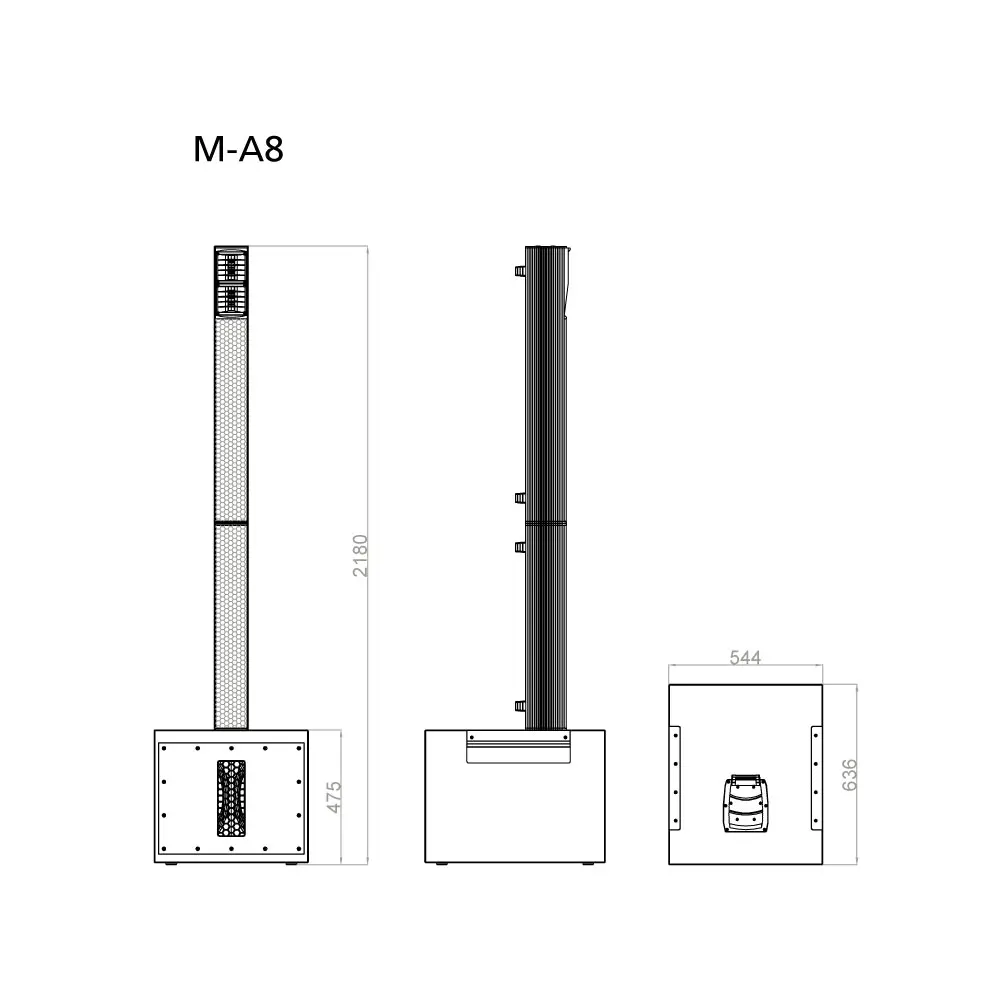

Dimensions (W × H × D)Subwoofer: 544 × 475 × 636 mm; Upper column: 120 × 997 × 192 mm; Lower column: 120 × 728 × 180 mm
Installed height2180 mm
Net weightSubwoofer: 42.5 kg; Column: 9.5 kg + 6.5 kg
ACCESSORIES
(no data)
ANNOTATION
*Frequency range measured at -6 dB
**Maximum SPL, peak value
***RMS power (subwoofer/column)
