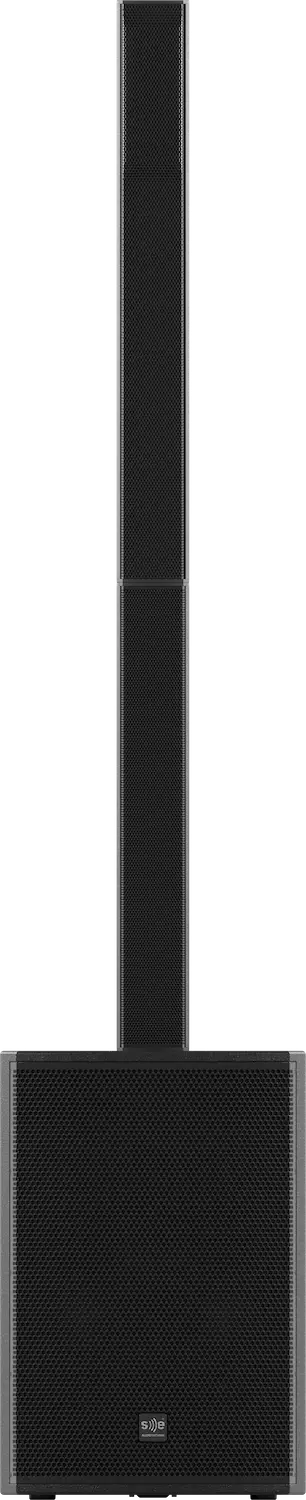

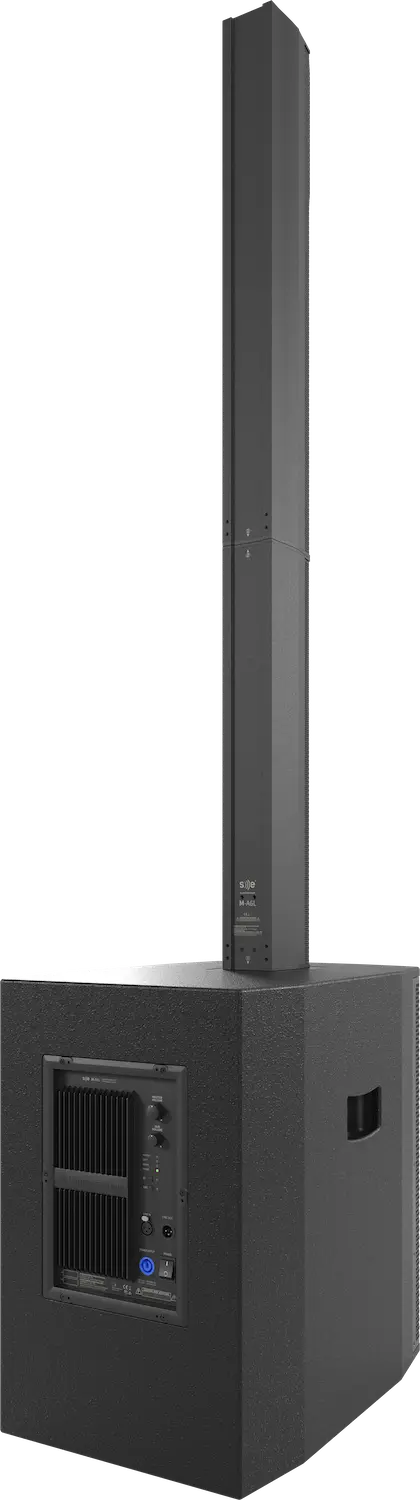

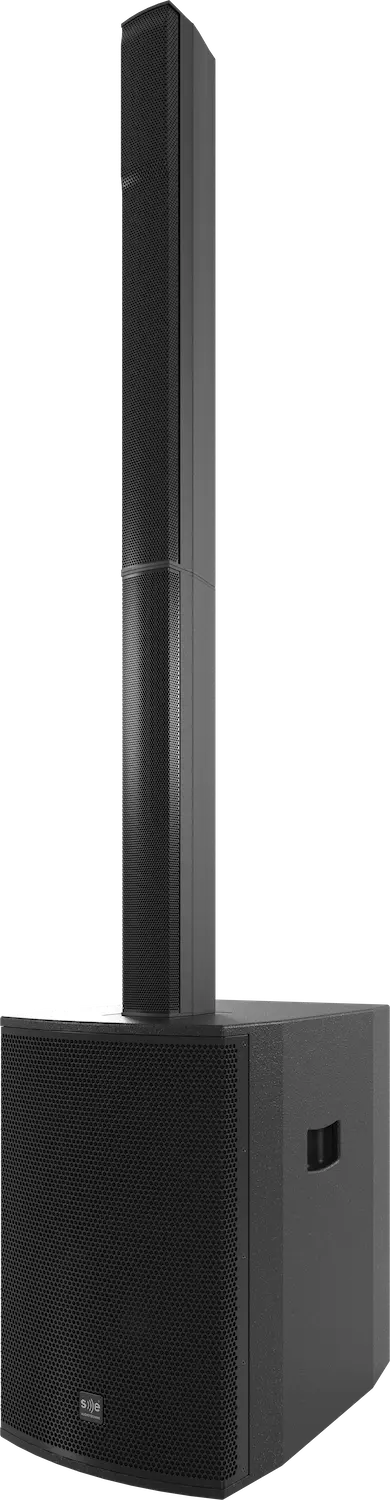

M-A6L
M-A6L is an elegant, self-powered column system that adds extended low-frequency performance to the proven M-A6 concept. Designed for corporate spaces, conference rooms, hotels, hospitality venues, houses of worship, and small to medium event locations, it pairs plug-and-play operation and Bluetooth connectivity with a refined, unobtrusive look. The result is natural speech intelligibility and musical authority—from subtle background sound to confident, full-bodied playback—without visual distraction.
- Self-powered plug-and-play column system with extended bass capability
- Bluetooth audio and True Wireless Stereo for quick, cable-free stereo setups
- Homogeneous near- and far-field coverage for speech and music
- Independent subwoofer level for instant room and programme tuning
- Refined, durable design for corporate events, conferencing, hospitality, and houses of worship
Engineered for scenarios where clarity must meet convincing low end, the M-A6L combines modern connectivity with a three-way, DSP-optimised architecture. A robust subwoofer base anchors a two-piece aluminium column that houses precisely voiced low–mid drivers and a multicell waveguide for the high frequencies. This waveguide shapes the sound field to serve near and far listeners simultaneously, maintaining presence up close and definition at a distance. The extended bass capability adds warmth and weight to music and impact to presentations, while controlled directivity supports clean, even coverage in acoustically varied rooms. Everyday operation is intentionally straightforward. Power on, connect a cable or pair via Bluetooth—no extra hardware required. A dedicated subwoofer level lets you fine-tune the low end to the room and programme, while a master system level governs the overall balance. True Wireless Stereo allows two systems to pair for cable-free stereo setups, ideal when speed, flexibility, and neatness matter. Low-noise conversion, comprehensive protection, and carefully tuned factory voicings underpin reliable performance from first use to daily operation.
The M-A6L is built to work beautifully and look the part. The coated wooden subwoofer cabinet provides a stable, durable base; the slim, two-piece aluminium column locks securely in place for quick assembly and a clean silhouette. Refined finishes, discreet hardware, and practical accessories for transport and protection make the system equally at home in permanent installations and mobile productions.
Technical details
| ACOUSTICAL DATA | |
|---|---|
| Model Name | M-A6L |
| Frequency range (-3 dB) | 48 Hz – 17 kHz* |
| Frequency range (-6 dB) | 42 Hz – 18 kHz* |
| Frequency range (-10 dB) | 38 Hz – 20 kHz* |
| Coverage angles (-6 dB) [H x V] | 130° × 20° |
| Maximum Peak SPL | 138 dB** |
| Continuous Maximum SPL/1m | 125 dB** |
| System type | Column array system with integrated subwoofer |
| Crossover frequency | Low: 100 Hz, Mid 130 Hz, 2.5 kHz, Hi 2.5 kHz |
| Transducers | Low: 15" with 3" VC; Low-mid: 3.5" with 1" VC; 0.5" compression driver with 1" VC |
| Enclosure type | Low: bass reflex / ported; Low-mid: sealed column; High: multicell waveguide array |
| AMPLIFICATION | |
| Type | Class-D |
| Total power | 1000 W*** |
| Output power per channel | Low: 500 W, Low-Mid: 250 W, Hi: 250 W**** |
| Protection | Short circuit, temperature |
| Indicators | LEDs: ON (green), SIGNAL (green), LIMIT (red), PROTECT (red), BT PAIRING (blue), BT-TWS (blue) |
| Connectors | 1 × Line input, sym.; 1 × Line output, sym., buffered; powerCon® mains input twist connector |
| Wiring | N/A |
| Operating voltage range | 220–240 VAC, 4A; 100–120 VAC, 8A; 50/60 Hz; 800 W max. |
| Input sensitivity | 0 dBu |
| DSP | 48 kHz/24 bit with extended dynamics, processing latency: 1.1 ms |
| Connectivity | Bluetooth® V.5.0, Profile: A2DP v1.3.1, AVRCP v1.6, A2DP codec: SBC, aptX, aptXHD |
| Processing | Crossover, Limiter, EQ, Level, low noise AD-DA |
| User controls | 2 × VRs: main volume, sub volume; 1 × push button: Bluetooth® pairing; 1 × push button: Bluetooth® TWS (pairing with second system for stereo Bluetooth®); 1 × power on/off switch |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] | Subwoofer: 639 × 435 × 610 mm; Top column: 875 × 103 × 130 mm; Lower column: 713 × 103 × 130 mm; Total system height: 2135 mm |
| Net weight | Subwoofer: 32.9 kg; Top column: 6.8 kg; Lower column: 5.7 kg; Total: 45.4 kg |
| Packaging dimensions [H x W x D] | Subwoofer: 715 × 540 × 743 mm; Columns: 950 × 395 × 226 mm |
| Total weight | Subwoofer: 37 kg; Columns: 15.3 kg |
| Cabinet | Subwoofer: Plywood; Column: Aluminum; Column covers and connectors: ABS, Nylon, stainless steel |
| Cabinet finishing | Subwoofer: Polyurea coat; Column: Powder coat |
| Grille | Subwoofer: 1.5 mm steel, powder coated; Column: 0.8 mm steel, powder coated |
| ACCESSORIES | |
| Transport dolly | Plywood 18 mm, powder coated, four swivel wheels (two with brakes), butterfly connector to subwoofer. |
| Transport bag for columns | Padded, double layer Nylon, zipper, adjustable carrying strap |
| Transport/storage cover for subwoofer | Padded, double layer Nylon pull over cover, handle flaps |
| Flight case | Flight case for one column system |
| ANNOTATION | |
| * | Half space, -10 dBu / 7 m, SUB volume center position |
| ** | SPL/1m, half space, pink noise, 12dB crest factor, +10dBu input level |
| *** | Total power value is the sum of all individual channel output power |
| **** | According to EIA-426B Standard |
