Mi-Line

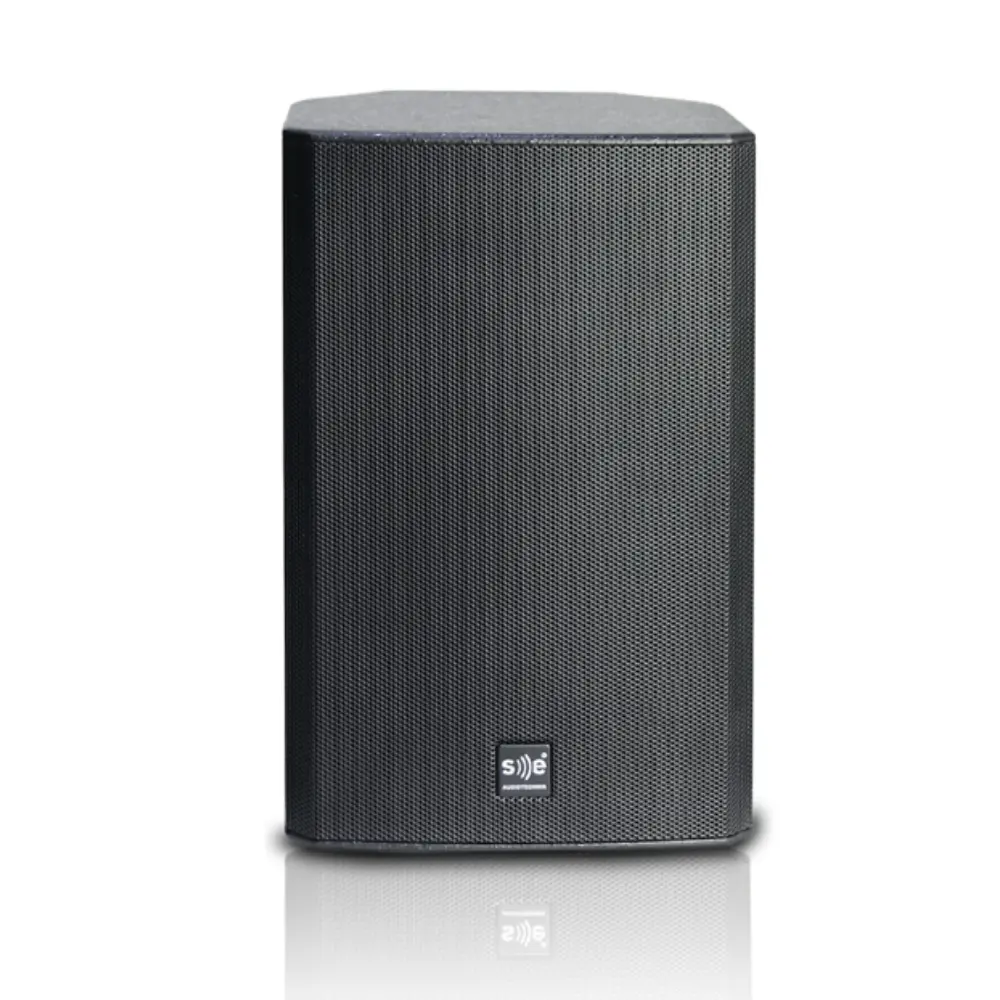

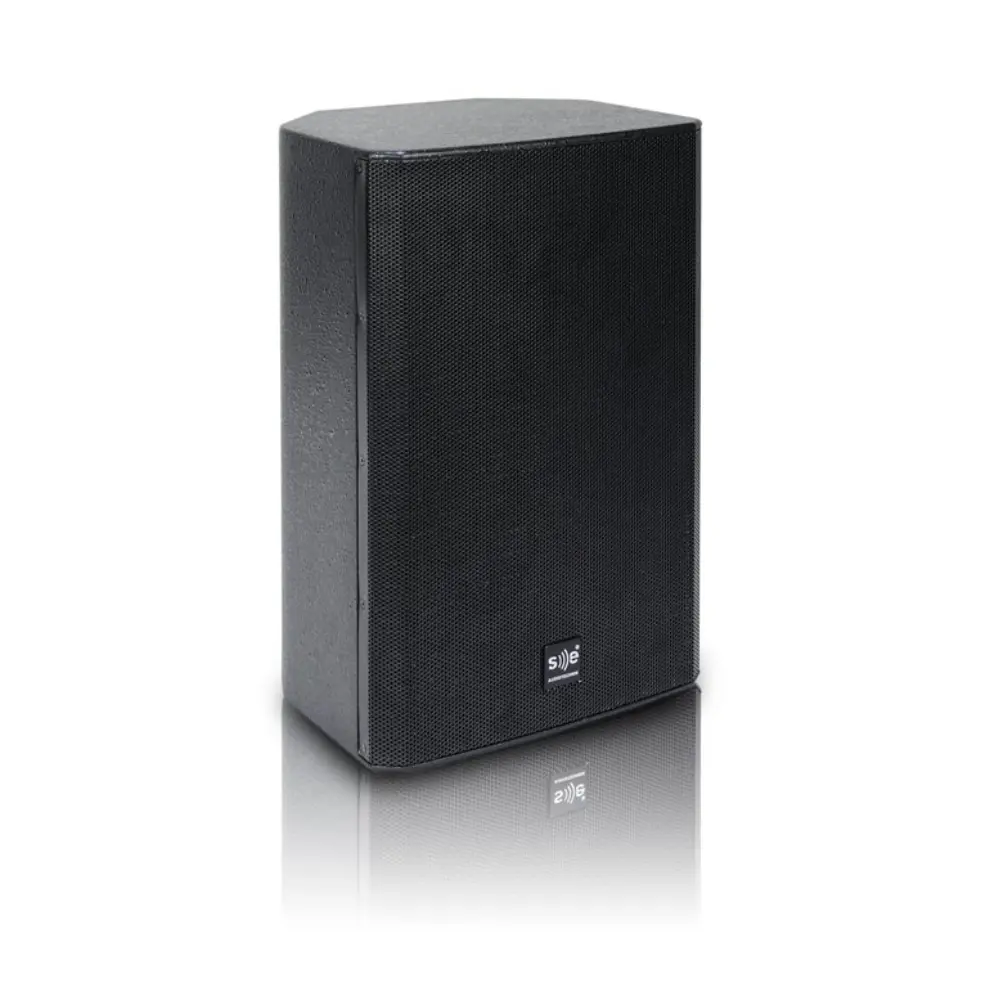

M-82A
Technical details
| Model Name | M-82AG2 |
|---|---|
| Type | 8" active 2-way loudspeaker (vented) |
| Frequency response (-6 dB) | 50 Hz – 20 kHz |
| Power handling (RMS) | 80 W (active) |
| Sensitivity (1 W / 1 m) | 93 dB |
| MAX SPL (1 m) | 114 dB |
| Impedance | 4 Ω |
| Dispersion (H x V) | 60° x 60° |
| LF Transducer | 8" ferrite driver, 1.5" voice coil |
| HF Transducer | 1" neodymium silk dome driver, 1" voice coil |
| Input / Output connectors | Input: XLR / 6.3 mm jack Output: XLR |
| Rigging system | M6 rigging points |
| Cabinet material / Coating | 12 mm MDF / Polyurea coating |

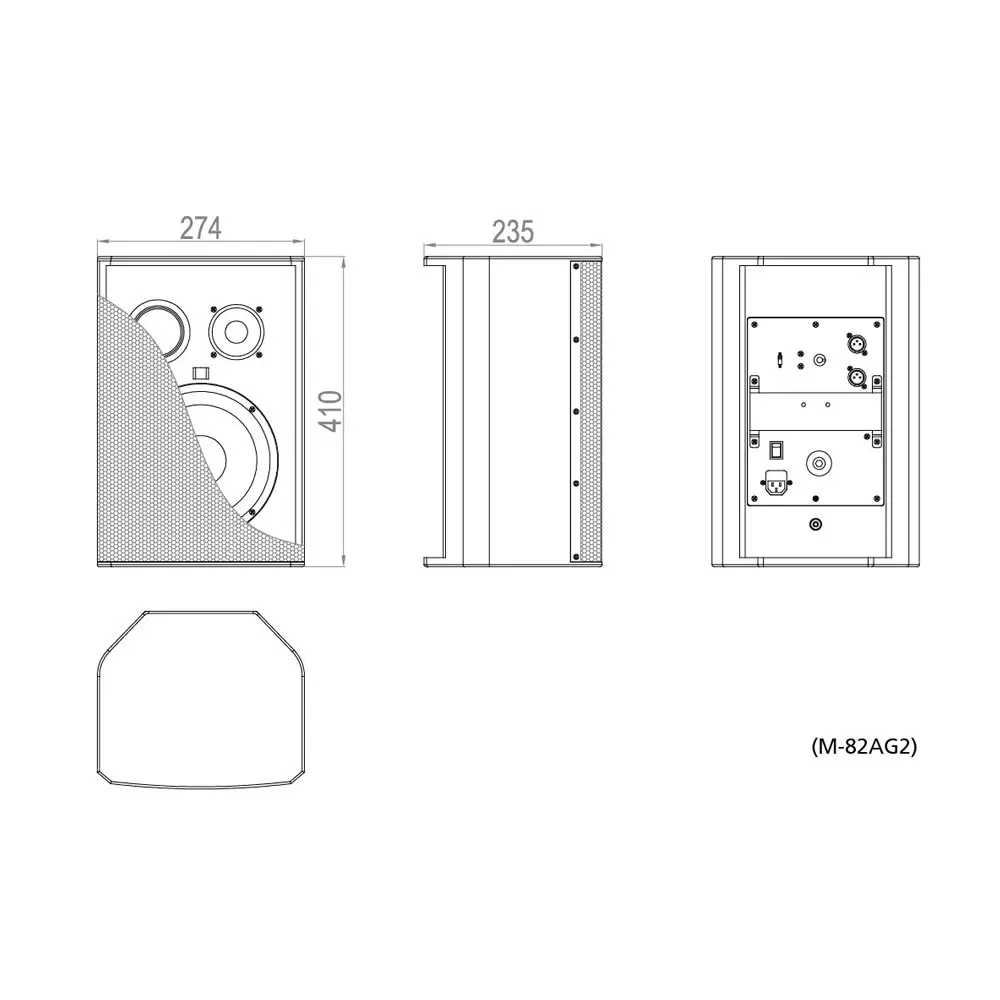

| Product dimensions (W x H x D) | 274 × 410 × 235 mm |
| Net weight | 9.7 kg |
