Mi-Line
M-82
Technical details
| Model Name | M-82G2 |
|---|---|
| Type | 8" passive 2-way loudspeaker (vented) |
| Frequency response (-6 dB) | 50 Hz – 20 kHz |
| Power handling (RMS / Peak) (AES) | 120 W / 200 W |
| Sensitivity (1 W / 1 m) | 93 dB |
| MAX SPL (1 m) | 114 dB |
| Impedance | 8 Ω |
| Dispersion (H x V) | 60° x 60° |
| LF Transducer | 8" ferrite driver, 1.5" voice coil |
| HF Transducer | 1" neodymium silk dome driver, 1" voice coil |
| Input / Output connectors | Clamp connector |
| Rigging system | M6 rigging points |
| Cabinet material / Coating | 12 mm MDF / Polyurea coating |

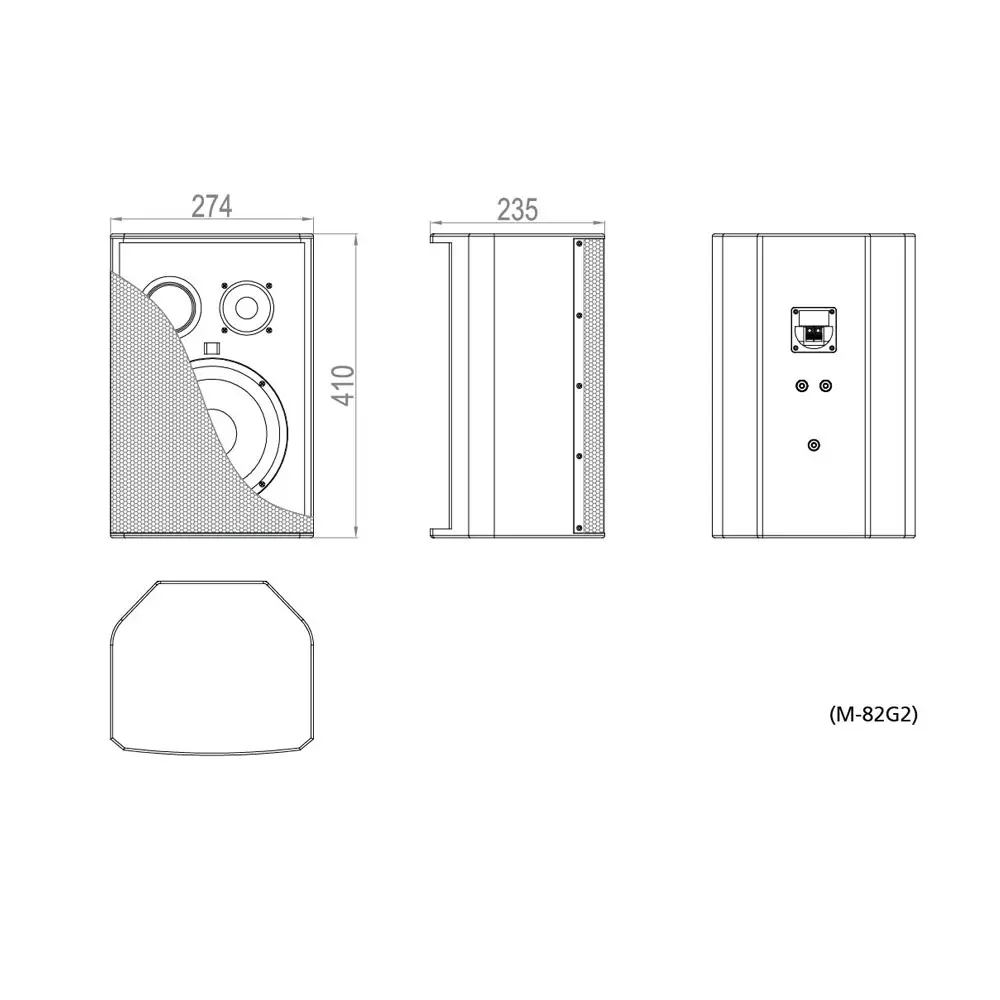

| Product dimensions (W x H x D) | 274 × 410 × 235 mm |
| Net weight | 7.0 kg |
