Mi-Line
M-62A
Technical details
| Model Name | M-62AG2 |
|---|---|
| Type | 6" active 2-way loudspeaker (vented) |
| Frequency response (-6 dB) | 55 Hz – 20 kHz |
| Power handling (RMS / Peak) (AES) | 50 W (active) |
| Sensitivity (1 W / 1 m) | 87 dB |
| MAX SPL (1 m) | 107 dB |
| Impedance | 4 Ω |
| Dispersion (H x V) | 60° x 60° |
| LF Transducer | 6" ferrite driver, 1" voice coil |
| HF Transducer | 1" neodymium silk dome driver, 1" voice coil |
| Input / Output connectors | Input: XLR / 6.3 mm jack Output: XLR |
| Rigging system | M6 rigging points |
| Cabinet material / Coating | 12 mm MDF / Polyurea coating |

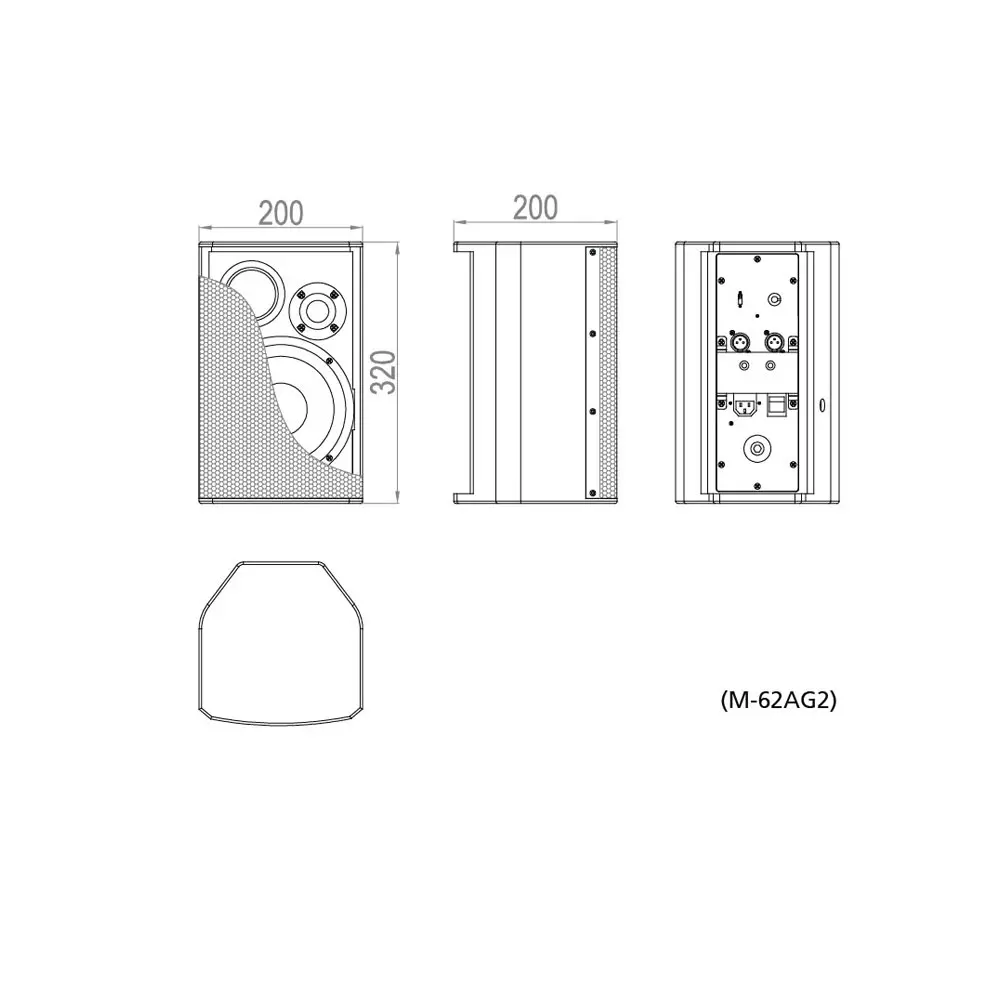

| Product dimensions (W x H x D) | 200 × 320 × 200 mm |
| Net weight | 5.5 kg |
