L-Line

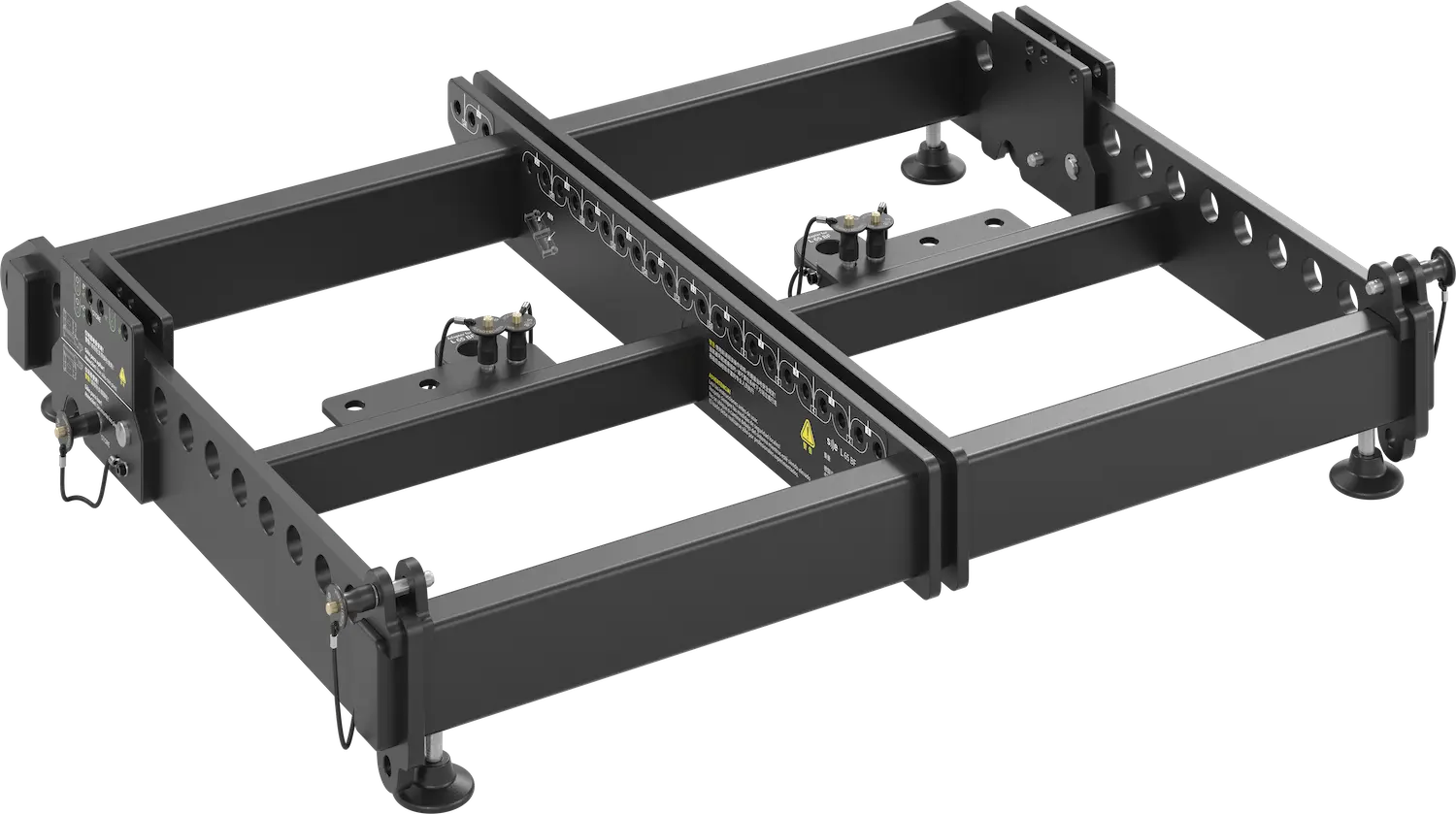

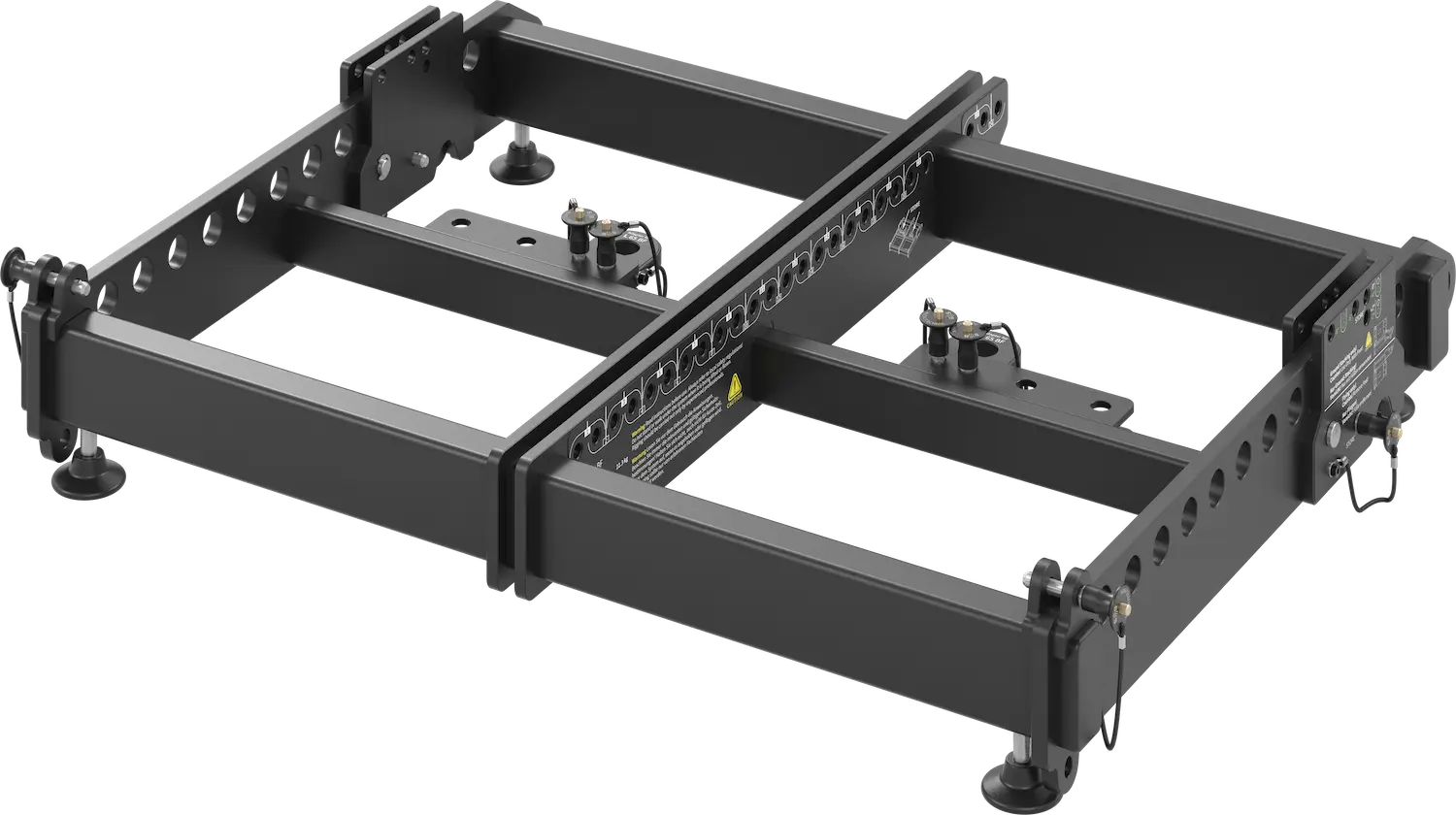

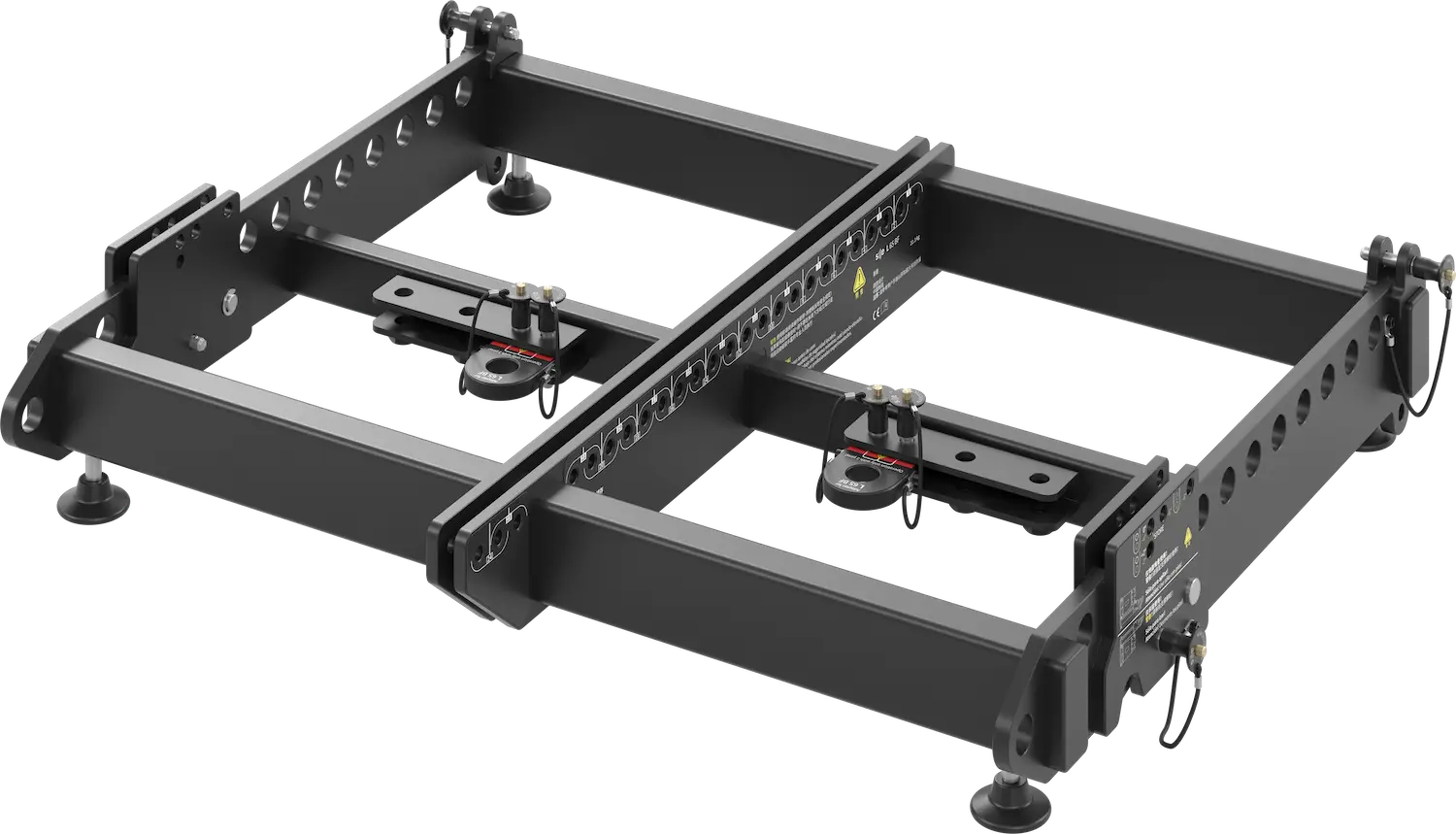

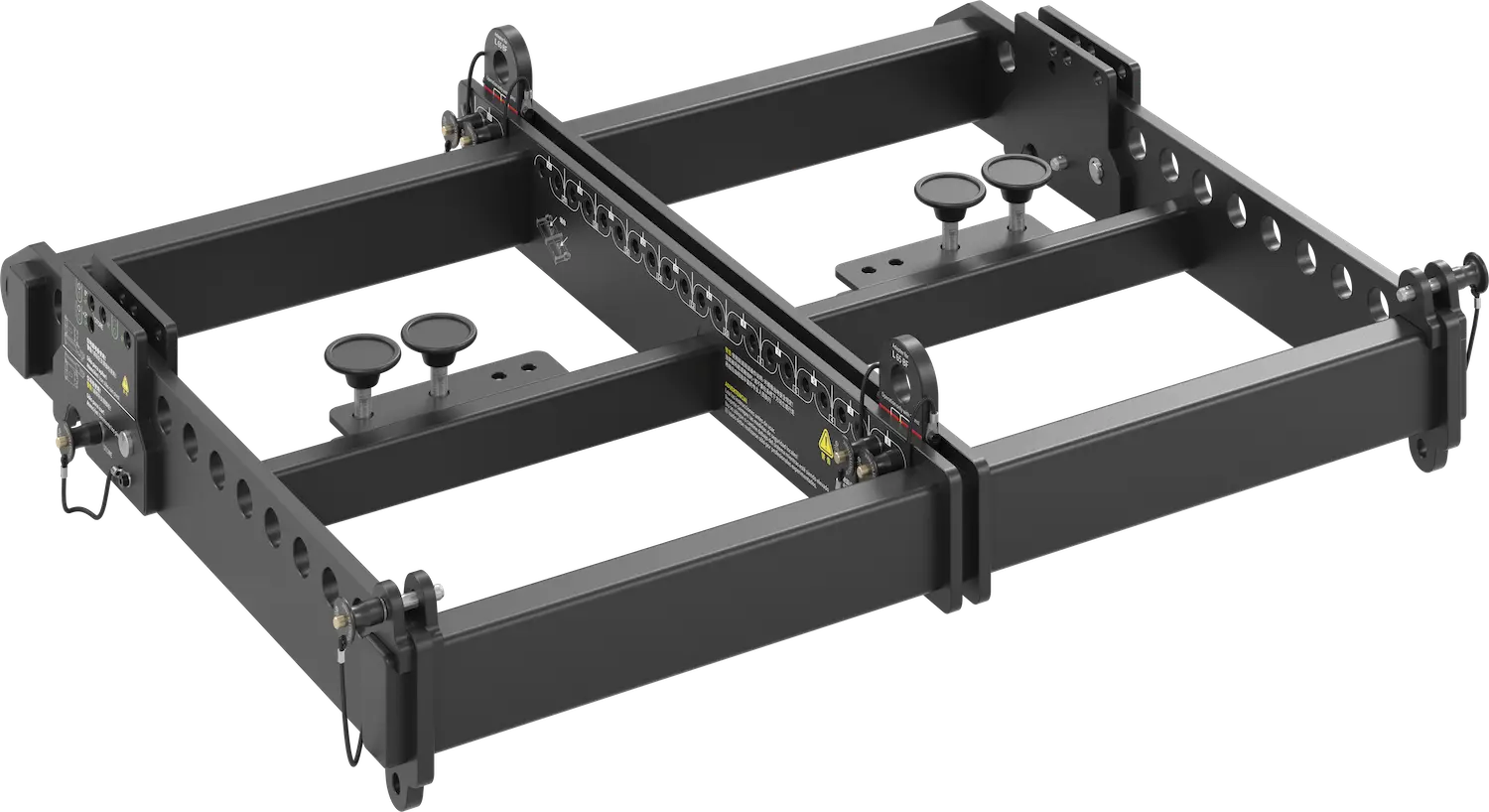

L 65 BF
Technical details
| Model Name | L 65 BF |
|---|---|
| Type | L 65 line array bumper frame |
| MECHANICAL DATA | |
| Material | Carbon steel |
| Finishing | Matted surface with powder coating for outdoors |
| Max. load before deformation | 50 kN |
| WLL / load capacity (12:1) | 410 kg |
| WLL / load capacity (10:1) | 495 kg |
| WLL / load capacity (7:1) | 705 kg |
| Max. pullback force | n/a |
| Color | Black |
| Product dimensions [H x W x D] (incl. rigging) | 113 × 765 × 590 mm |
| Net weight | 19.7 kg |
| Packaging dimensions [H x W x D] | 193 × 790 × 610 mm |
| Total weight | 22 kg |
| Rigging | Four-point SE AUDIOTECHNIK rigging system with 8 mm SE AUDIOTECHNIK security pins 24x two-pins pick points with 1/2" holes One two-pins to shackle adapter 4x steel feet for stacking frame |
