K-Line
K-18B
Available in:East Asia, EU, Europe, South Asia, Southeast Asia
Technical details
| Model Name | K-18B |
|---|---|
| Type | Single 18" vented subwoofer |
| Frequency response (-6 dB) | 40 Hz – 200 Hz |
| Power handling (RMS / Peak) (AES) | 600 W / 2400 W |
| Sensitivity (1 W / 1 m) | 101 dB |
| MAX SPL (1 m) | 135 dB |
| Impedance | 8 Ω |
| LF Transducer | 18" ferrite driver, 4" voice coil |

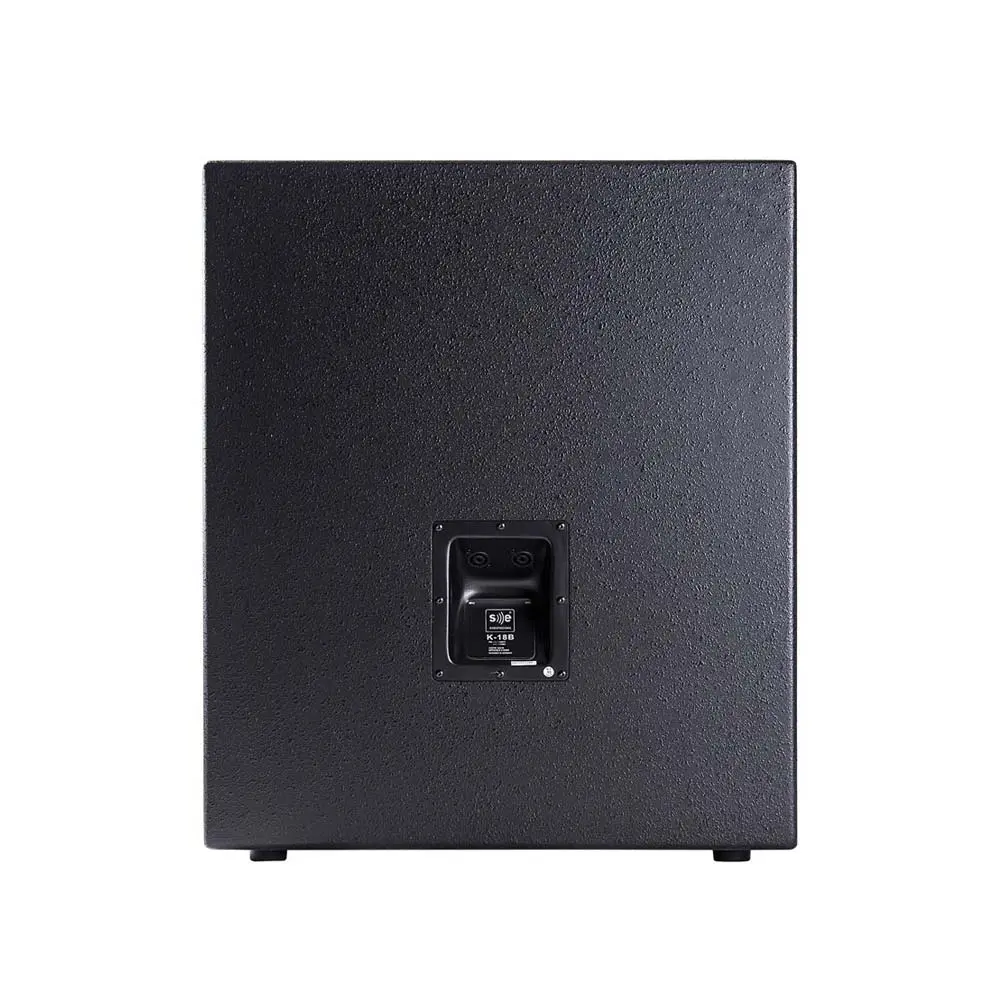

| Input interface | 2x NL-4: pins +1/-1 input/THRU, pins +2/-2 N.C. |
| Cabinet material / Coating | 18 mm MDF / PU textured paint |

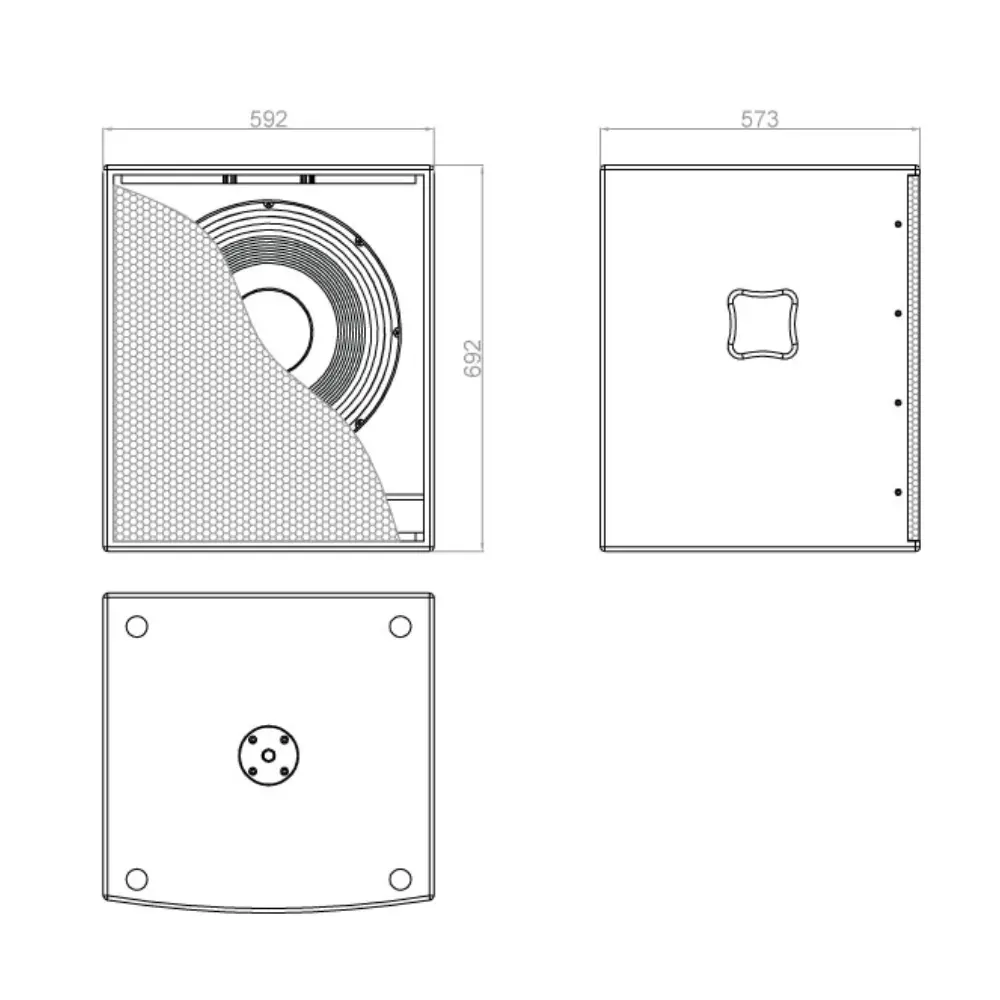

| Product dimensions (W x H x D) | 592 × 692 × 573 mm |
| Net weight | 43.5 kg |
Packaging:
Cardboard outer packaging: 84.60% (3240 g) | Foam inner padding: 12.27% (470 g) | Plastic protective sleeve: 3.13% (120 g)
The following overview contains information on the regulated substances used in the product and on compliance with the applicable limit values.
"Lead (Pb): Used in printed circuit boards (printed circuit board | electronic components on the PCB | internal connecting wires | copper traces) (permitted exemption).
"
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
Environmental Protection Use Period: 15 year(s)
