K-Line

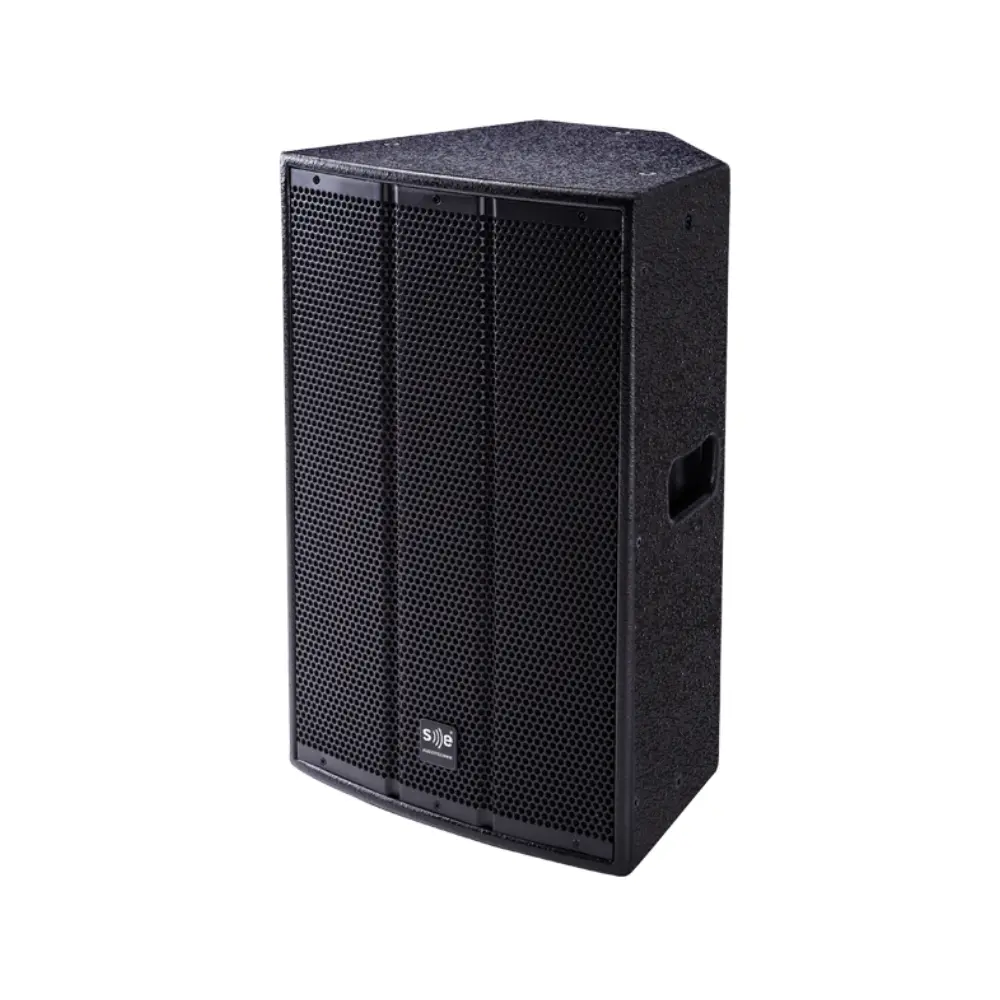

K-12i
Available in:East Asia, EU, Europe, South Asia, Southeast Asia
Technical details
| Model Name | K-12i |
|---|---|
| Type | 12" passive 2-way full-range loudspeaker |
| Frequency response (-6 dB) | 55 Hz – 18 kHz |
| Power handling (RMS / Peak) (AES) | 350 W / 1400 W |
| Sensitivity (1 W / 1 m) | 96 dB |
| MAX SPL (1 m) | 127 dB |
| Impedance | 8 Ω |
| Dispersion (H x V) | 50°–100° × 55°, rotatable horn |
| LF Transducer | 12" ferrite driver, 2.4" voice coil |
| HF Transducer | 1" ferrite compression driver, 1.75" voice coil |
| Protection | Tweeter protection |
| Input interface | 2x NL-4: pins +1/-1 input/THRU, pins +2/-2 N.C. |
| Rigging system | 18x M8 rigging points |
| Cabinet material / Coating | 15 mm MDF / PU textured paint |

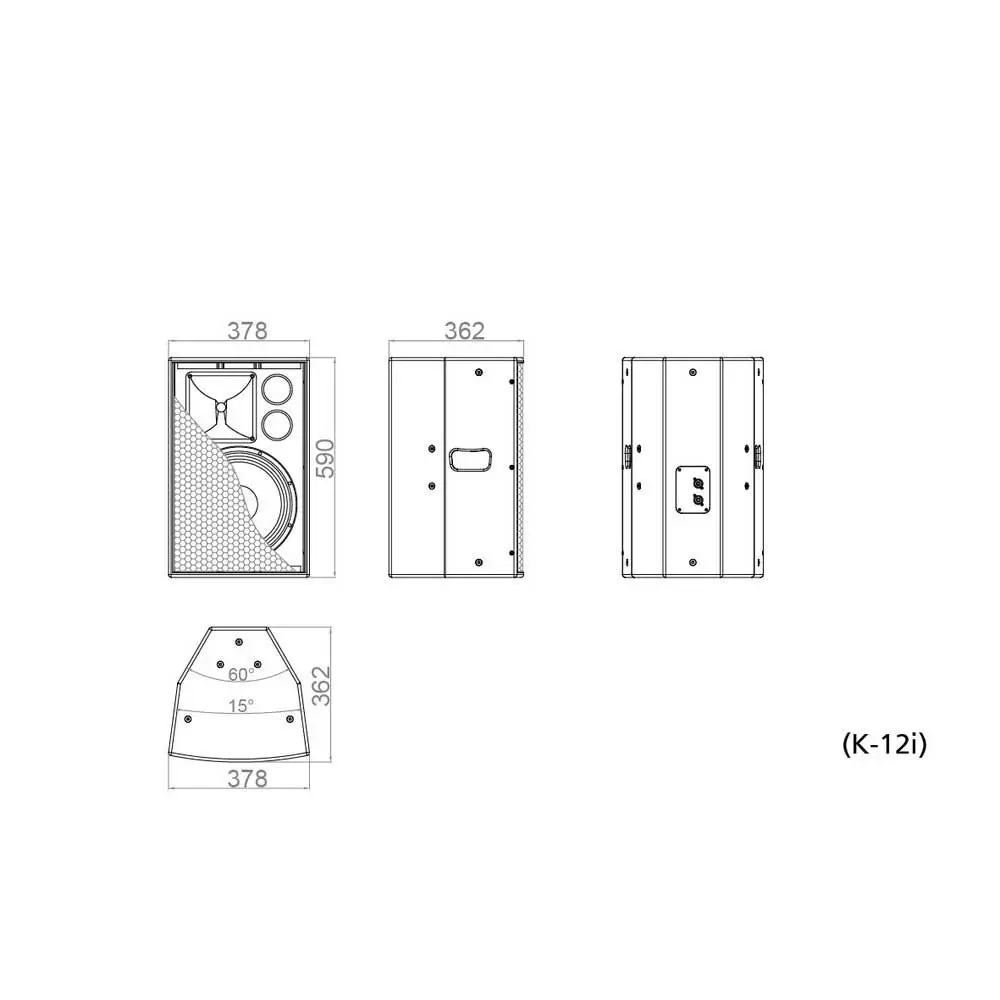

| Product dimensions (W x H x D) | 378 × 590 × 362 mm |
| Net weight | 20.5 kg |
Packaging:
Cardboard outer packaging: 81.40% (1860 g) | Foam inner padding: 15.75% (360 g) | Plastic protective sleeve: 2.84% (65 g)
The following overview contains information on the regulated substances used in the product and on compliance with the applicable limit values.
"Lead (Pb): Used in printed circuit boards (printed circuit board | electronic components on the PCB | internal connecting wires | copper traces) (permitted exemption).
"
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
Environmental Protection Use Period: 15 year(s)
