K-Line

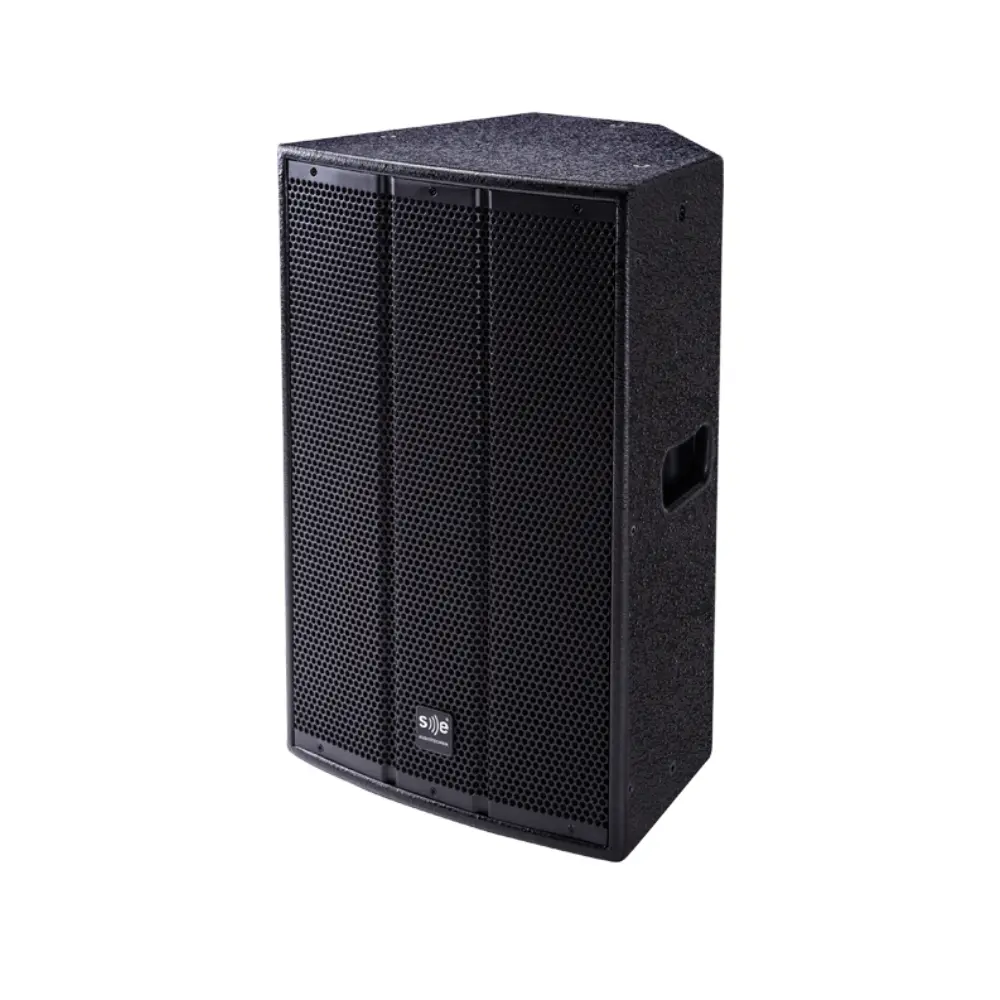

K-10i
Technical details
| Model Name | K-10i |
|---|---|
| Type | 10" passive 2-way full-range loudspeaker |
| Frequency response (-6 dB) | 65 Hz – 18 kHz |
| Power handling (RMS / Peak) (AES) | 200 W / 800 W |
| Sensitivity (1 W / 1 m) | 95 dB |
| MAX SPL (1 m) | 124 dB |
| Impedance | 8 Ω |
| Dispersion (H x V) | 50°–100° × 55°, rotatable horn |
| LF Transducer | 10" ferrite driver, 2" voice coil |
| HF Transducer | 1" ferrite compression driver, 1" voice coil |
| Protection | Tweeter protection |
| Input interface | 2x NL-4: pins +1/-1 input/THRU, pins +2/-2 N.C. |
| Rigging system | 18x M8 rigging points |
| Cabinet material / Coating | 15 mm MDF / PU textured paint |
| Product dimensions (W x H x D) | 322 × 500 × 308 mm |
| Net weight | 14 kg |
