IC-Line

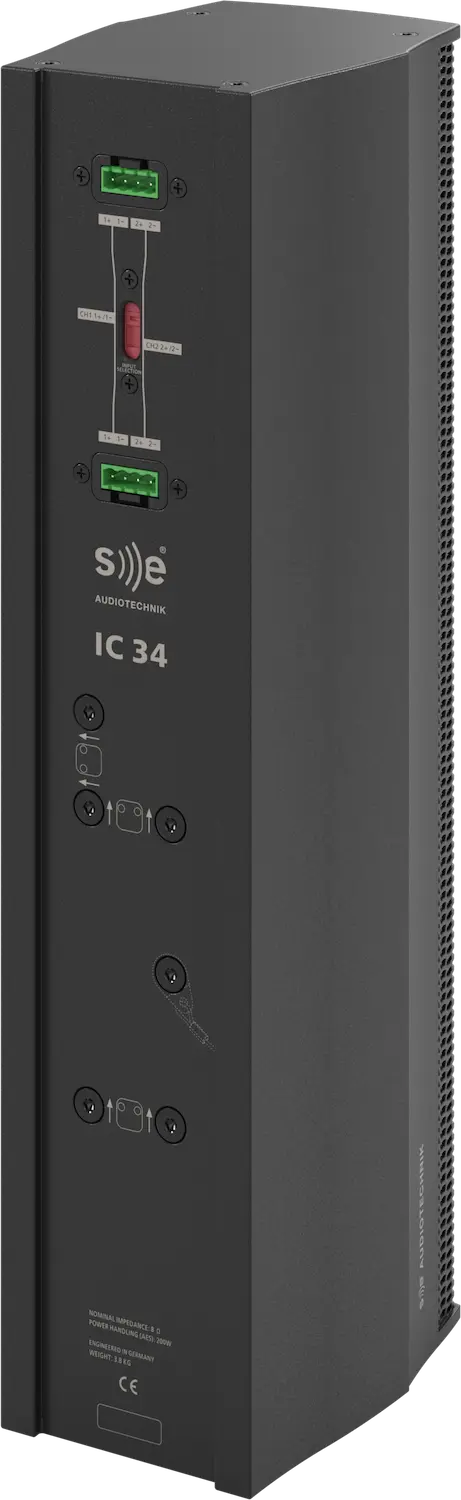

IC 34
Technical details
| Model Name | IC 34 |
|---|---|
| Type | 3.5" Passive Loudspeaker |
| ACOUSTICAL DATA | |
| Frequency range (-3 dB)* | 150 Hz – 17 kHz |
| Frequency range (-6 dB)* | 120 Hz – 16 kHz |
| Frequency range (-10 dB)* | 100 Hz – 20 kHz |
| Coverage angles (-6 dB) [H x V] | 120° x 40° |
| Nominal impedance | 8 Ω |
| Sensitivity* | 94 dB |
| Peak power | 800 W |
| Continuous power** | 200 W |
| Maximum Peak SPL*** | 129 dB |
| System type | 1-way passive system |
| Crossover frequency | – |
| Transducers | 4 × 3.5" neodymium drivers (1" voice coil) |
| Enclosure type | Vented box |

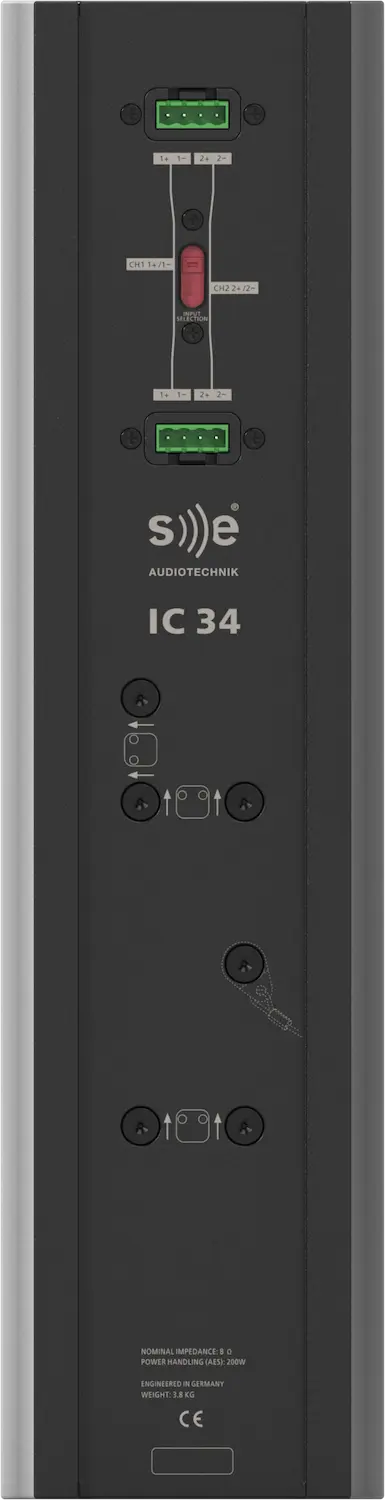

| Connectors | Input / Link: Phoenix contact MSTB 4-pins |
| User controls | 2-positions input selection switch |
| Wiring | Pins 1+/1- or 2+/2- (switchable) |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] (incl. rigging) | 462 × 118 × 155 mm |
| Net Weight | 4 kg |
| Packaging dimensions [H x W x D] | 620 × 268 × 375 mm |
| Total Weight | 10.1 kg |
| Cabinet | Die-cast aluminium housing, plastic |
| Cabinet finishing | Black or white powder coating |

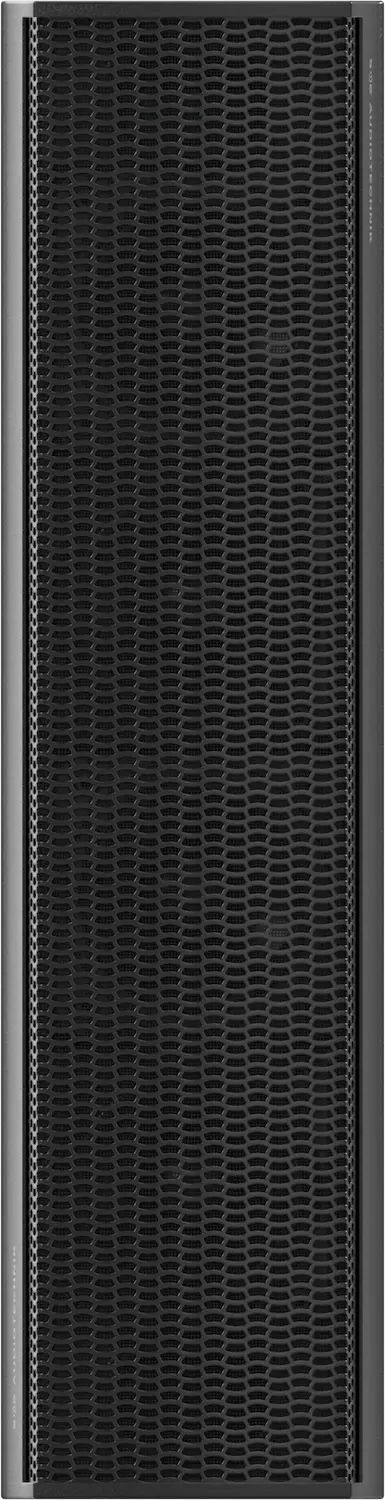

| Grille | Powder coated perforated steel |
| Hardware | – |
| Mounting | Center and bottom mounting points for SMB bracket. Safety wire fixing point. |
| Splay angles | – |
| ACCESSORIES | |
| SMB | Smart Mounting Bracket |
| ANNOTATION | |
| * | Whole space, 1W / 1m, on axis. With dedicated IA 402D amplifier's preset. |
| ** | According to EIA-426B Standard (based on RMS Voltage) |
| *** | Max Peak SPL = Sensitivity + 10log10(Continuous Power) + 12 dB Crest Factor |
