CV-Line
CV-118B
Technical details
| Model Name | CV-118B |
|---|---|
| Type | 1-way passive subwoofer system |
| TECHNICAL INFORMATION | |
| ACOUSTICAL DATA | |
| Frequency response (±3 dB)* | 40 Hz – 130 Hz |
| Frequency range (-6 dB)* | |
| Frequency range (-10 dB)* | 31 Hz – 140 Hz |
| Coverage angles (-6 dB) [H x V] | Omnidirectional |
| Nominal impedance | 8 Ω |
| Sensitivity* | 101 dB |
| Peak power | 3400 W |
| Continuous power** | 850 W |
| Maximum Peak SPL*** | 142 dB |
| System type | 1-way passive system |
| Crossover frequency | – |
| Transducers | 1 × 18" driver (4" voice coil) |
| Enclosure type | Bandpass box |

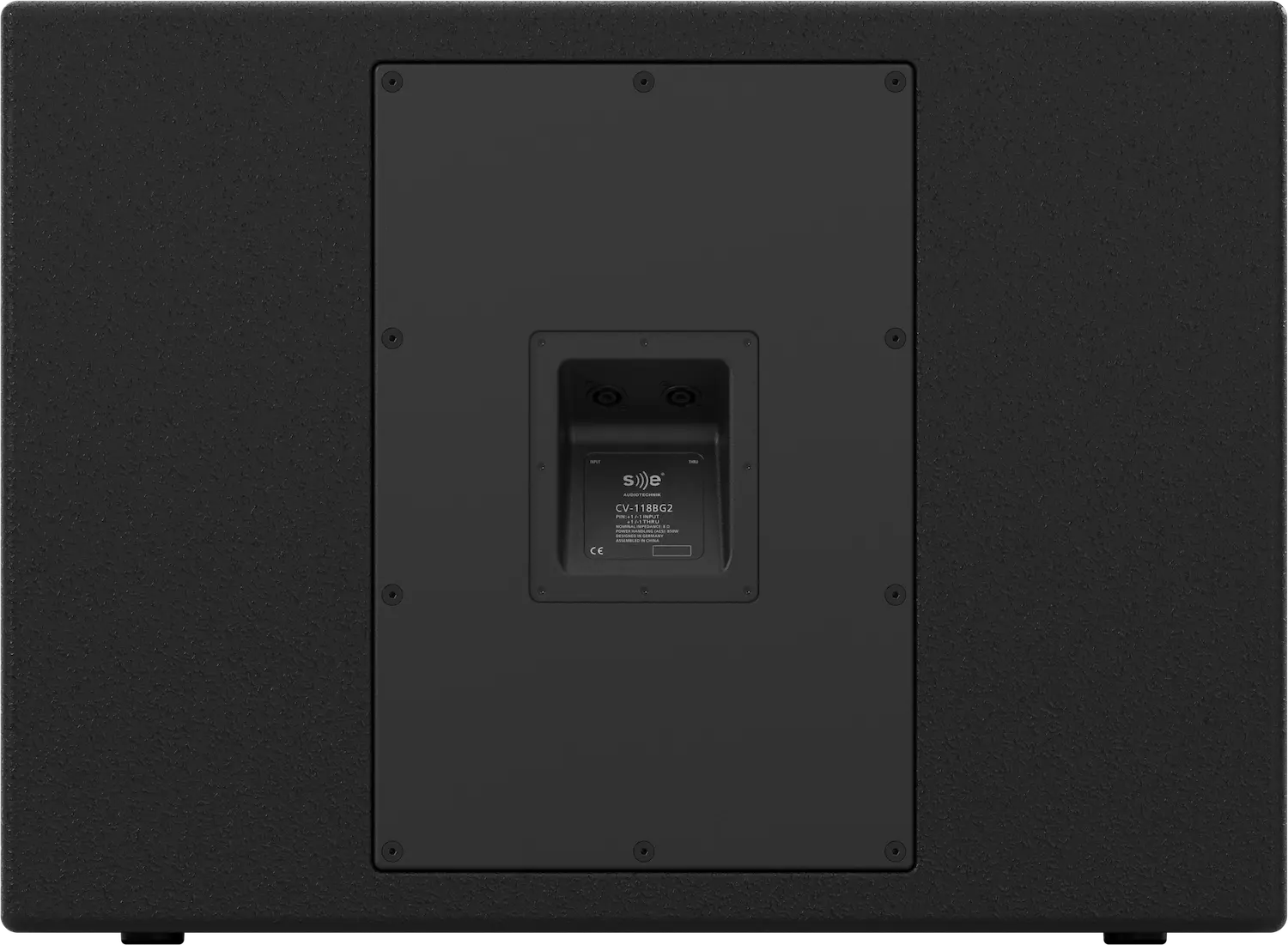

| Connectors | Input signal: Neutrik speakON® NL4 Link output: Neutrik speakON® NL4 |
| Wiring | Pins +1/-1 input / THRU Pins +2/-2 N.C. |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] | 558 × 762 × 682 mm |
| Weight | 62 kg |
| Packaging dimensions [H x W x D] | 676 × 860 × 780 mm |
| Total weight | 74 kg |
| Cabinet | 18 mm plywood |
| Cabinet finishing | Black polyurea coating |

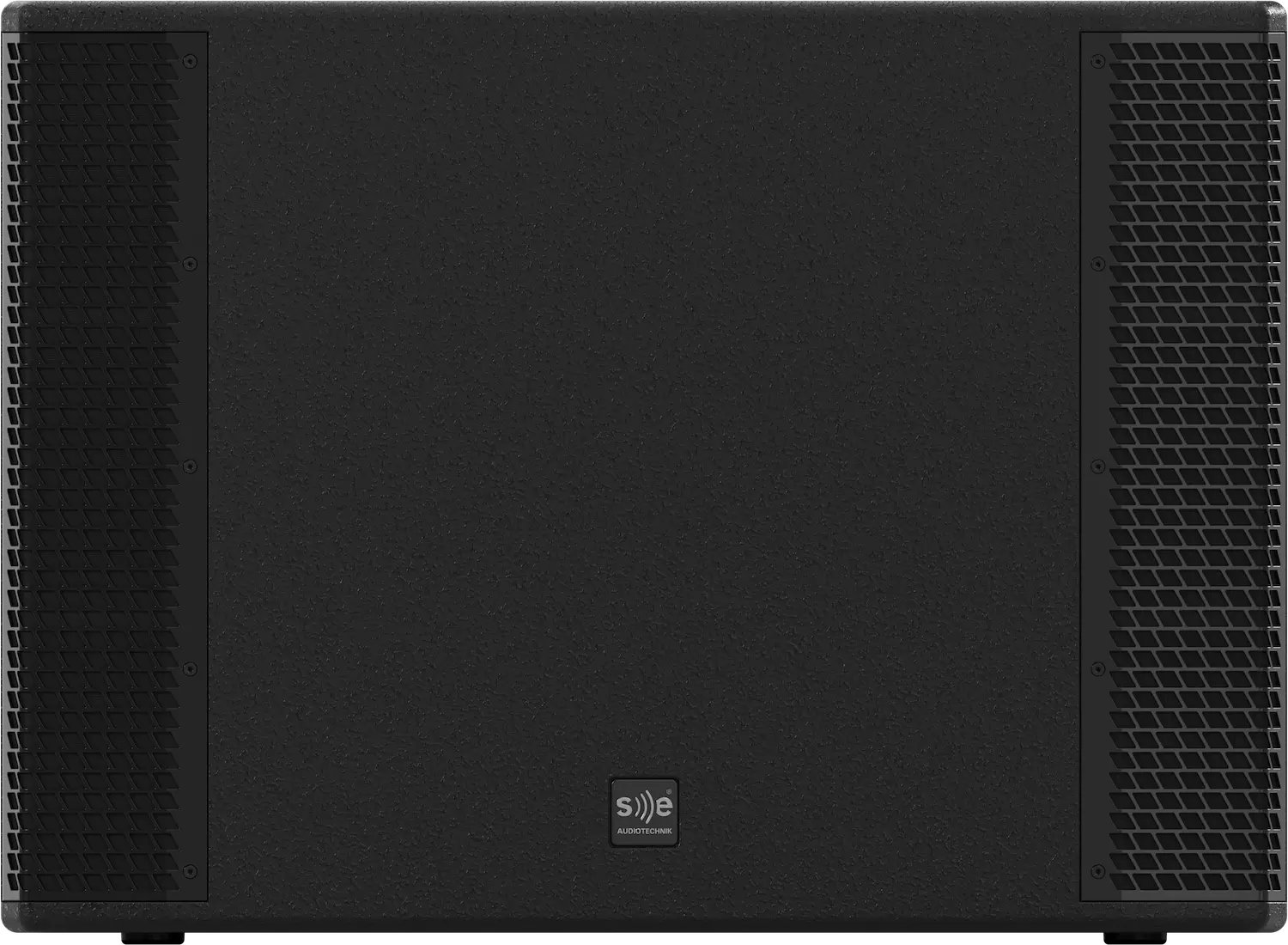

| Grille | Powder coated perforated steel |

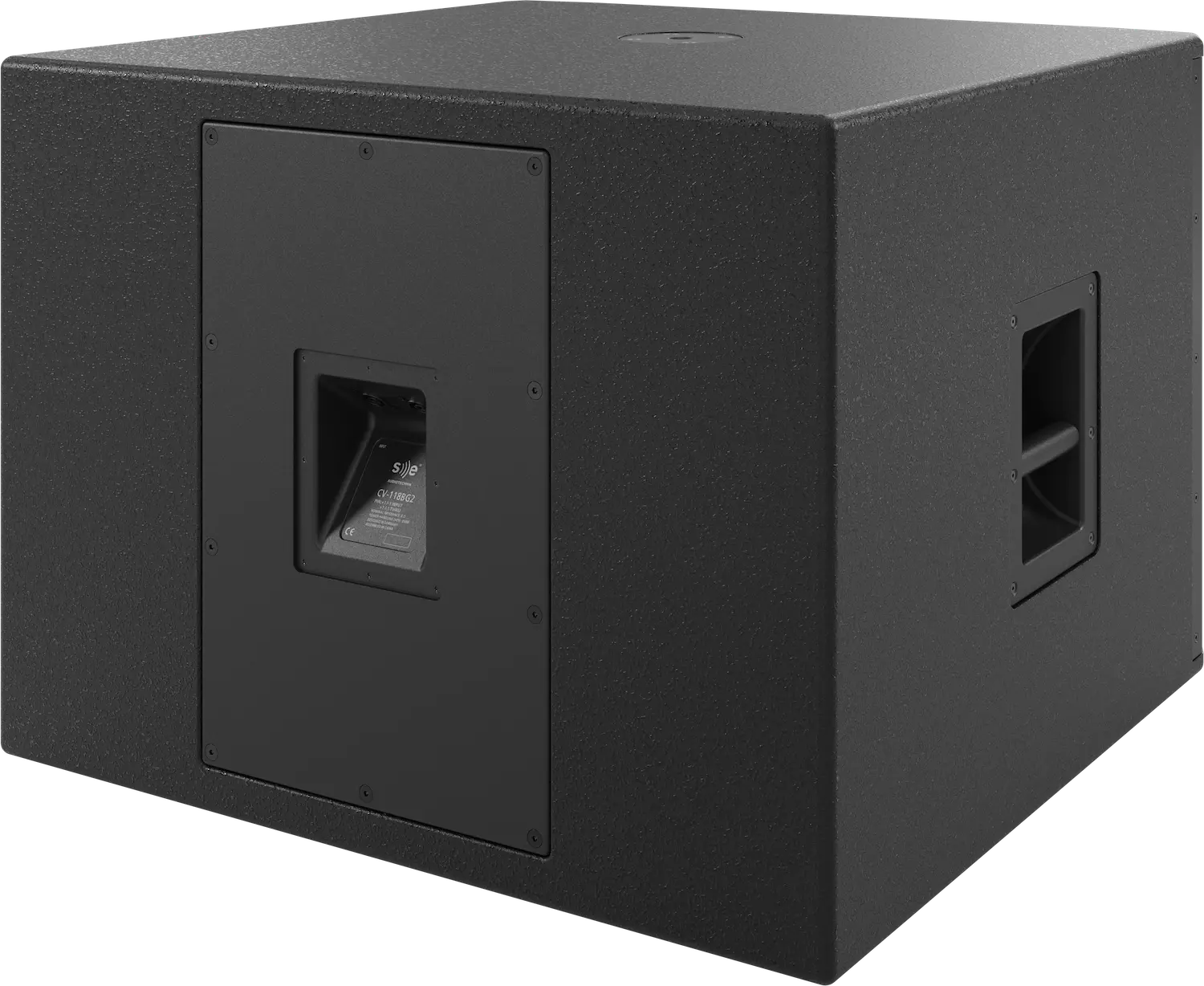

| Hardware | Two ergonomically placed handles on the side. Anti-skid feet M20 pole bar support |
| Rigging | – |
| Splay angles | – |
| ACCESSORIES | |
| SPS20 | Pole bar |
| ANNOTATION | |
| * | Half Space 1W / 1m, on axis, BW24@130 Hz |
| ** | According to EIA-426B Standard |
| *** | Max Peak SPL = Sensitivity + 10log10(Continuous Power) + 12 dB Crest Factor |
